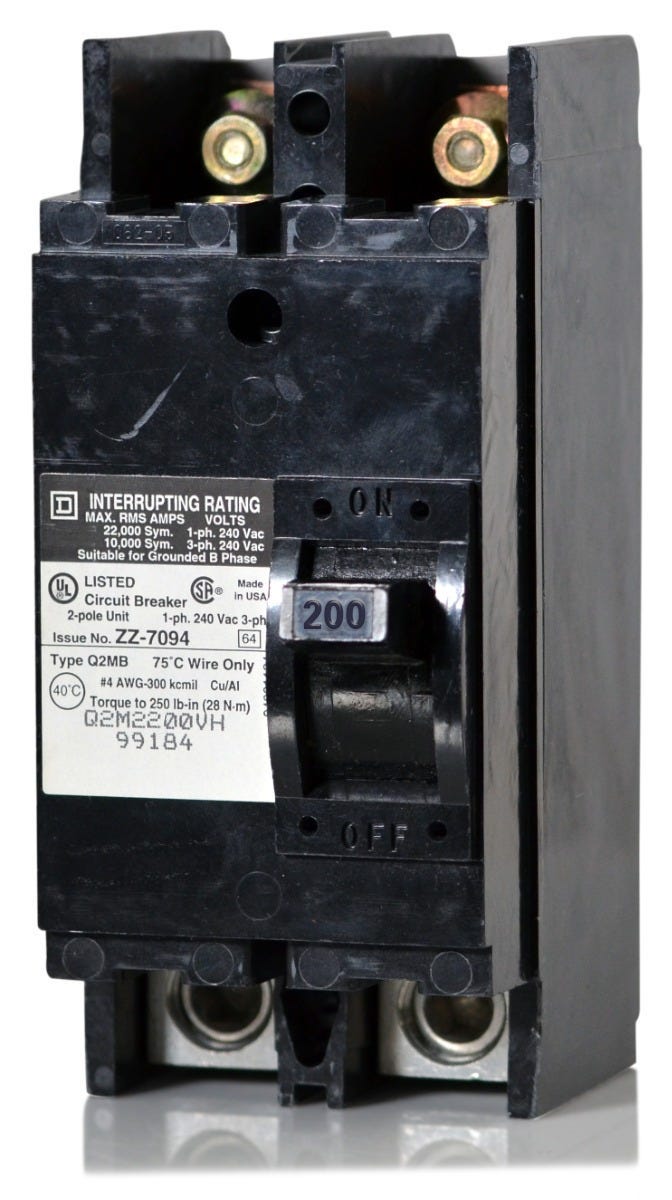

Square D Q2M2200VH Molded Case Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
Quantity
Square D Q2M2200VH - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Engineered for 22 kAIC at 240V, this 200A MCCB delivers robust thermal-magnetic protection for commercial systems. The Q2M2200VH features a fixed trip unit with long-time and instantaneous functions. It mounts into compatible Square D panelboards and metering equipment using a secure bolt-on connection. For system upgrades, this unit is replaced by the QDL22200. Built with a Visi-Trip indicator for quick fault identification, it carries an HACR rating and includes load side lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q2M2200VH |
| Series | Q2 |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | Q2M |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Panelboards, Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
6 answersWhat is the modern replacement for the legacy Square D Q2M2200VH?
The direct replacement for this legacy Q2 series breaker is the PowerPact Q-frame QDL22200. The QDL22200 provides the same 200A, 2-pole configuration but features a slightly higher 25kAIC interrupting capacity at 240V.
What type of enclosures and panels accept the Q2M2200VH?
This bolt-on circuit breaker is designed for installation in compatible Square D panelboards, switchboards, and metering equipment that accommodate legacy Q-Frame or Q2M breakers.
What wire sizes are compatible with the terminal lugs on the Q2M2200VH?
The load side lugs are designed to accept either aluminum or copper conductors ranging from 4 AWG up to 300 kcmil.
What does the VH suffix indicate on the Q2M2200VH catalog number?
The VH suffix denotes a higher interrupting rating. This specific model is engineered to safely interrupt up to 22kAIC at 240V, providing robust protection for systems with higher fault current availability.
How can I visually identify if the Q2M2200VH has tripped?
This breaker features a Visi-Trip indicator. When a fault occurs and the breaker trips, a highly visible red indicator appears, allowing electricians to quickly locate the tripped circuit in a crowded panel.
Can the Q2M2200VH be used to protect HVAC equipment?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment that requires specialized overcurrent protection.
