Square D Q2M3200MT Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Square D
Q2M3200MT
Molded Case Circuit Breaker
Brand
Square D
SKU
Q2M3200MT
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

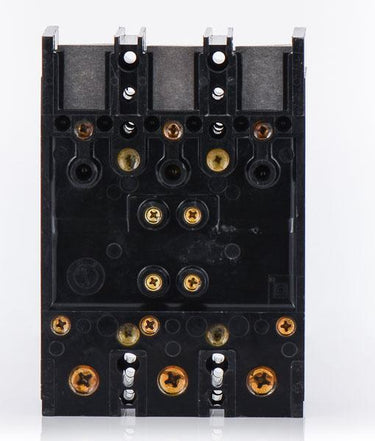

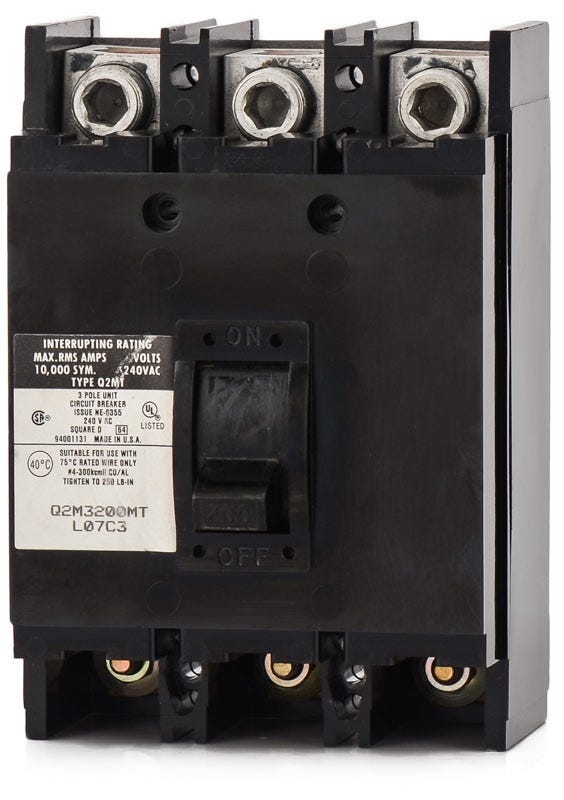

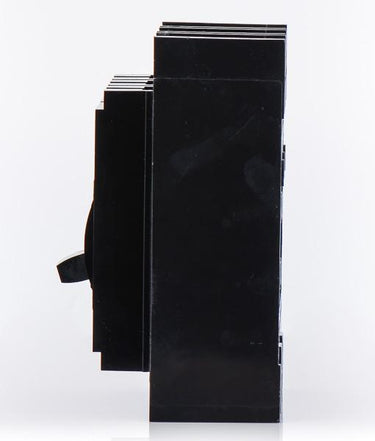

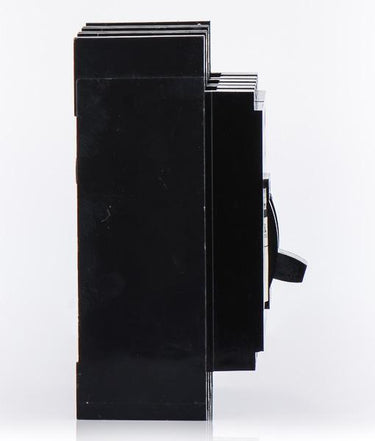

Square D Q2M3200MT - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
3 Pole Circuit Breaker

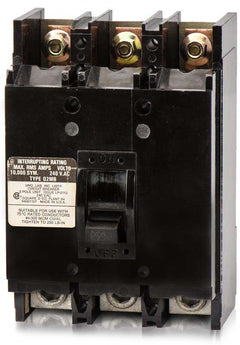

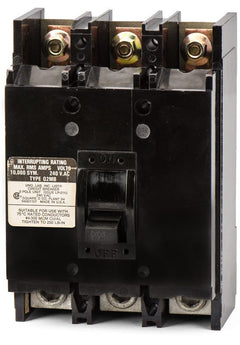

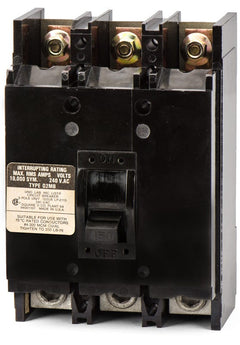

150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
The Square D Q2M3200MT is a legacy 3-pole, 200A molded case circuit breaker designed for commercial and industrial power distribution. It features a top-mounting design with line side lugs and load side studs, making it compatible with Square D Meter-Pak, EZM Metering, and NQOD panelboards. Delivering a 10 kAIC interrupting rating at 240VAC, it utilizes fixed thermal and magnetic trip units. For new installations, this model has been superseded by the PowerPact QBM32200TN.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q2M3200MT-R |
| Series | Q2M |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | Q2M |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Meter-Pak, EZM Metering, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Top Mounting, Main Breaker |
Product FAQs
4 answersWhat equipment is the Square D Q2M3200MT designed to fit?
This bolt-on circuit breaker is commonly used as a main or tenant breaker in Square D EZM Metering centers, Meter-Pak enclosures, and NQOD panelboards.
Is the Q2M3200MT still actively manufactured?
The Q2M3200MT is a legacy circuit breaker. For new installations or system upgrades, Schneider Electric generally recommends transitioning to the modern PowerPact Q-Frame series. Always verify dimensional clearances and interrupting ratings when selecting a modern replacement.
How do you reset the Q2M3200MT after an overcurrent trip?
When a fault occurs, the breaker handle will snap to a middle position between ON and OFF. To reset it, firmly push the handle completely to the OFF position to reset the internal mechanism, then switch it back to the ON position.
Can the Q2M3200MT be used in a 480V commercial distribution system?
No. The Q2M3200MT is strictly rated for a maximum of 240VAC. Applying it to a 480V system exceeds its physical design limits, negates its 10kAIC interrupting rating, and violates safety codes.
