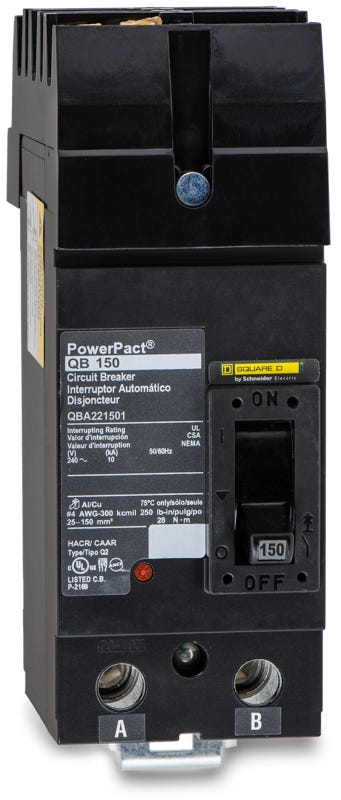

Square D QBA221501 Molded Case Circuit Breaker
- 150A
- 2 Pole
- I-Line
Square D
QBA221501
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA221501
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBA221501 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBA221501 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA221501 |
| Series | QBA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Phase Connection AB, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Sold out
Quantity
Square D QBA221501 - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA221501-R |
| Series | QBA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Phase Connection AB, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Similar Items
150A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty power distribution, the Square D QBA221501 is a 150A, 2-pole MCCB in the PowerPacT Q-Frame lineup. It utilizes a thermal-magnetic trip unit for LI protection. Designed for Square D I-Line panelboards, this breaker uses a plug-on mounting mechanism for efficient installation. It is an exact replacement for the older Q22150 model. Delivering a 10kAIC interrupt rating at 240VAC, the breaker features an AB phase connection and comes equipped with load-side lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBA221501 |
| Series | QBA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Phase Connection AB, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
8 answersWhat panelboards are compatible with the QBA221501 circuit breaker?
This PowerPacT Q-Frame breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It utilizes an I-Line style plug-on connection.
Can the QBA221501 replace older Square D circuit breakers?
Yes, the PowerPacT Q-Frame QBA221501 is a direct replacement for the legacy Square D Q22150 circuit breaker.
What phase connection does the QBA221501 use?
This 2-pole I-Line circuit breaker features an AB phase connection.
What size wire can be used with the load-side lugs on this breaker?
The included load-side lugs accept aluminum or copper conductors ranging from 4 AWG to 300 kcmil.
What type of trip unit is installed in the QBA221501?
It features a fixed thermal-magnetic trip unit providing long-time and instantaneous (LI) overcurrent protection. The thermal element protects against overloads, while the magnetic element responds to short circuits.
How much mounting space does the QBA221501 require in an I-Line panelboard?
This 2-pole Q-Frame circuit breaker requires 3 inches of vertical mounting space in an I-Line panelboard or switchboard.
Is this breaker suitable for 277V or 480V applications?
No, the QBA221501 has a maximum voltage rating of 240VAC and cannot be used on 277V or 480V systems.
How does the QBA221501 connect to the panelboard bus?
The line side utilizes an I-Line plug-on jaw connection that mounts directly to the panelboard bus, while the load side uses standard box-type lugs for cable connections.
