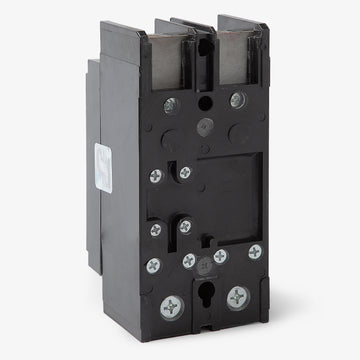

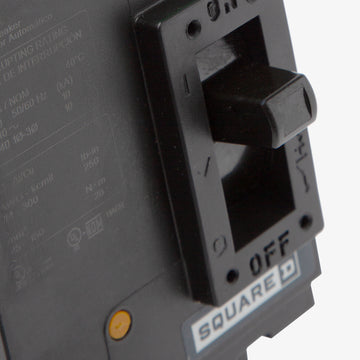

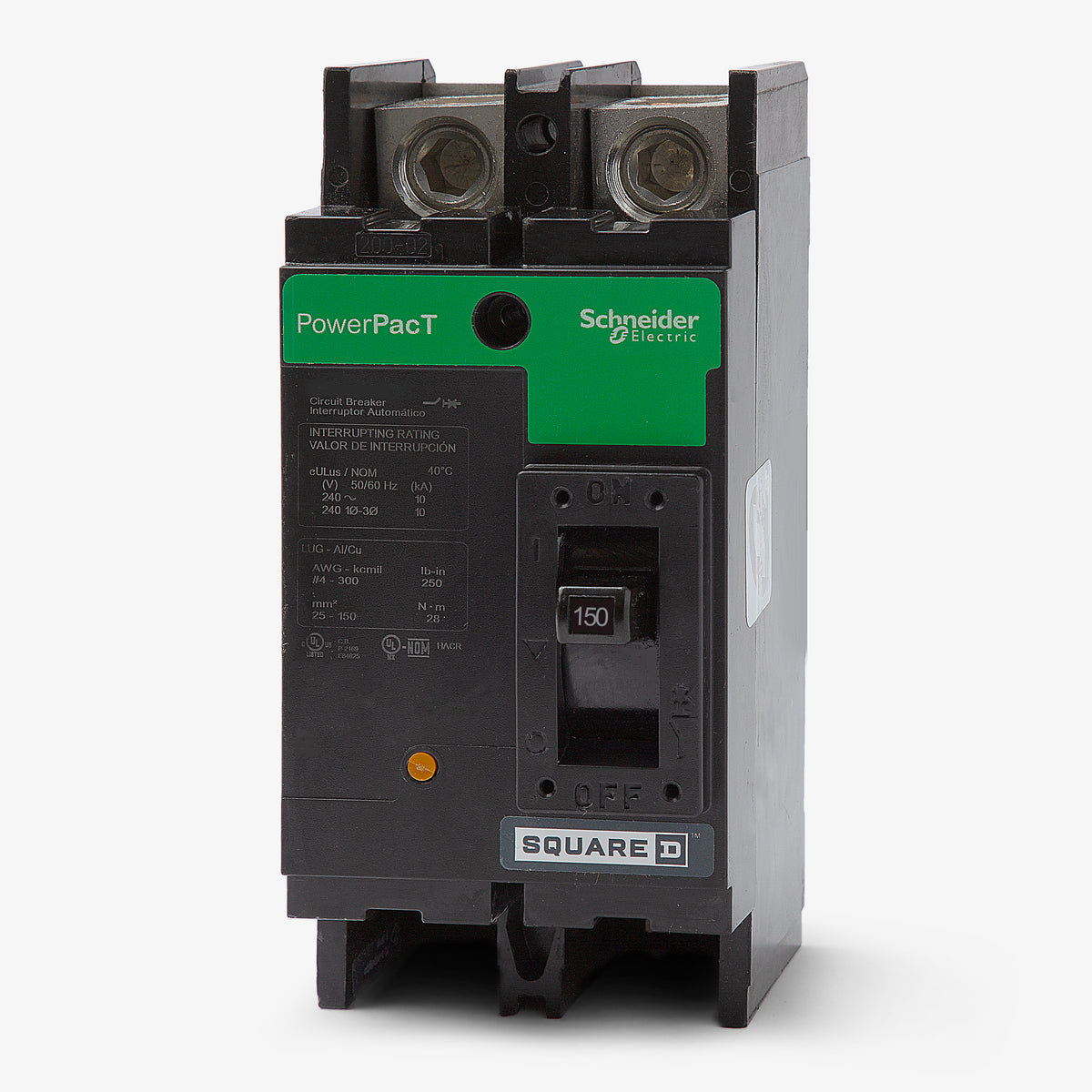

Square D QBM22150TN Molded Case Circuit Breaker
- 150A
- 2 Pole
- Unit Mount
Square D
QBM22150TN
Molded Case Circuit Breaker
Brand
Square D
SKU
QBM22150TN
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBM22150TN - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
110A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Designed for high-capacity commercial applications, the Square D QBM22150TN is a 150A, 2-pole molded case circuit breaker providing standard 10kAIC protection at 240VAC. The breaker features a unit-mount configuration making it ideal for NQ panelboards, NQOD panelboards, and switchboards. It serves as an exact drop-in substitute for the discontinued Q2M2150MT. It utilizes proven thermal-magnetic trip elements and is fully HACR rated, featuring line-side lugs and load-side terminal studs.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBM22150TN |
| Series | QBM |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | NQ Panelboards, NQOD Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Factory-installed Studs on Load Side (TN Suffix) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 80% Rated, Push-To-Trip |
Product FAQs
6 answersWhat panelboards are compatible with the QBM22150TN circuit breaker?
This unit-mount Q-Frame breaker is designed for installation in Square D NQ and NQOD panelboards, as well as compatible switchboards.
Can the QBM22150TN replace older Square D circuit breakers?
Yes, the QBM22150TN serves as a direct drop-in replacement for the discontinued Q2M2150MT circuit breaker.
What does the TN suffix indicate on the QBM22150TN?

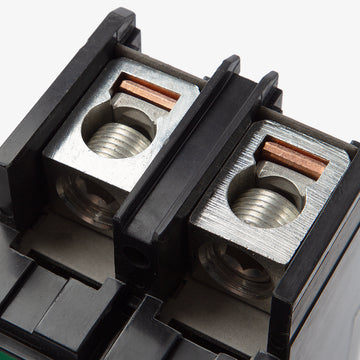

The TN suffix specifies the terminal configuration, indicating that the breaker is equipped with standard mechanical lugs on the line side and factory-installed threaded studs on the load side.
What wire sizes are accepted by the lugs on the QBM22150TN?
The line-side lugs accept aluminum or copper conductors ranging from 4 AWG to 300 kcmil.
What are the magnetic trip settings for the QBM22150TN?
This thermal-magnetic breaker features a fixed magnetic hold current of 1200A and a fixed magnetic tripping current of 2400A.
Is the QBM22150TN rated for 100 percent continuous current?
No, this breaker has a standard continuous current rating of 80 percent.
