Square D QDA221004 Molded Case Circuit Breaker
- 100A
- 2 Pole
- I-Line
Square D
QDA221004
Molded Case Circuit Breaker
Brand
Square D
SKU
QDA221004
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

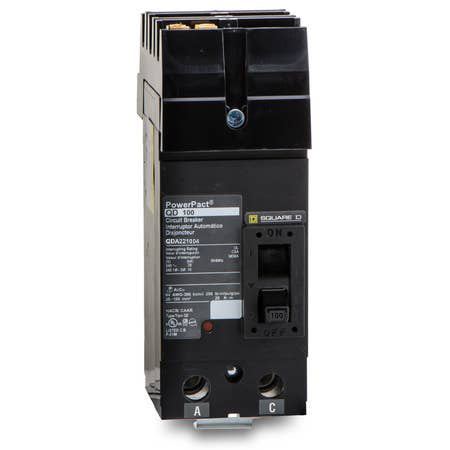

Square D QDA221004 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
The QDA221004 is an industrial molded case circuit breaker from Square D's PowerPacT Q-Frame family. Rated for 100A at 240VAC, it provides essential long-time and instantaneous (LI) trip functions. This unit installs into Square D I-Line panelboards and switchboards. It features a plug-on I-Line mounting style with a BC phase connection and replaces the legacy Q221004. With a 25kAIC interrupt rating, this HACR-rated breaker ensures robust fault clearing.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDA221004 |
| Series | QDA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | BC Phase Connection (Suffix 4) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Product FAQs
7 answersWhat type of panelboards are compatible with the QDA221004?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection on the line side.
Is the QDA221004 part of the PowerPacT series?
Yes, it is a PowerPacT Q-frame molded case circuit breaker. It also serves as a direct replacement for older Square D Q2 series breakers with the same specifications.
What does the D in the QDA221004 catalog number indicate?
In the PowerPacT Q-frame nomenclature, the D indicates an interrupting rating of 25kA at 240VAC. Other common Q-frame ratings include B (10kA), G (65kA), and J (100kA).
What does the A in the QDA prefix signify?
The A indicates the connection type. It specifies an I-Line shroud on the ON end for plug-in mounting, with mechanical lugs on the load end.
How much mounting space does this 2-pole Q-frame breaker require in an I-Line panel?
The QDA221004 requires 3 inches of mounting space, as each pole in the Q-frame series is 1.5 inches wide.
What wire sizes are accepted by the load side lugs on the QDA221004?
The mechanical lugs on this breaker accept aluminum or copper wire ranging from 4 AWG to 300 kcmil.
Are the trip settings on the QDA221004 adjustable?
No, this thermal magnetic breaker features fixed long-time and fixed instantaneous trip functions. The magnetic hold is set at 1200A and the magnetic trip is set at 2400A.
