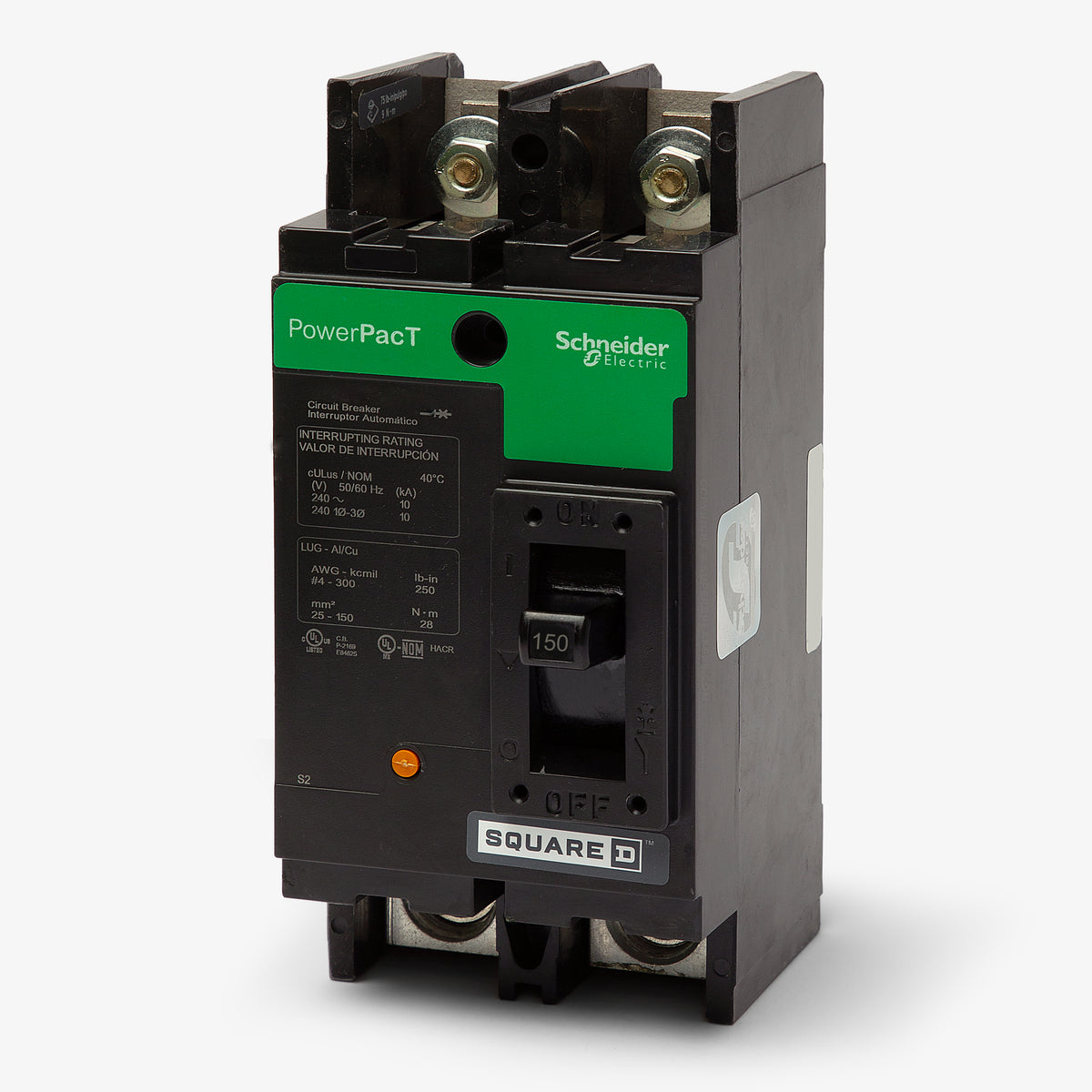

Schneider Electric QDP22150TM Molded Case Circuit Breaker
- 150A
- 2 Pole
- Unit Mount
Schneider Electric
QDP22150TM
Molded Case Circuit Breaker
Brand
Schneider Electric
SKU
QDP22150TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric QDP22150TM - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Schneider Electric QDP22150TM - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Schneider Electric |
|---|---|
| Part Number | QDP22150TM |
| Series | QDP |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Terminal Type | Stud/Tapped Pad |
|---|---|
| For Use With | EZ Meter-Pak Meter Centers, MP Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG-300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip |
Quantity
Schneider Electric QDP22150TM - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Schneider Electric |
|---|---|
| Part Number | QDP22150TM |
| Series | QDP |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Terminal Type | Stud/Tapped Pad |
|---|---|
| For Use With | EZ Meter-Pak Meter Centers, MP Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG-300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip |
Similar Items
150A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
Description
Serving as a drop-in replacement for the discontinued Q22150, this 150A Schneider Electric molded case circuit breaker provides upgraded 25kAIC protection at 240VAC. The two-pole PowerPacT Q-Frame device features fixed thermal-magnetic trip functions for reliable overcurrent defense. Designed with a unit-mount configuration, it integrates perfectly into Square D EZ Meter-Pak and MP Meter-Pak meter centers. This HACR-rated breaker includes load side lugs for straightforward wiring.Specifications
| Brand | Schneider Electric |
|---|---|
| Part Number | QDP22150TM |
| Series | QDP |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Terminal Type | Stud/Tapped Pad |
|---|---|
| For Use With | EZ Meter-Pak Meter Centers, MP Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG-300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip |
Product FAQs
10 answersWhat older circuit breaker does the QDP22150TM replace?
The QDP22150TM serves as a direct drop-in replacement for the discontinued Square D Q22150 circuit breaker.
Which metering equipment is the QDP22150TM designed for?
This breaker is designed to integrate directly into Square D EZ Meter-Pak and MP Meter-Pak meter centers.
What type of terminal connections does the QDP22150TM feature?
This unit-mount breaker features 1/4-20 inch studs on the line side for secure bus connections and standard lug terminals on the load side for field wiring.
What wire sizes are accepted by the load side lugs on this breaker?
The load side lugs accept aluminum or copper wire ranging from 4 AWG to 300 kcmil.
What is the recommended tightening torque for the load lugs?
The recommended tightening torque for the load side lugs is 248 lb-in (28 N.m).
What are the magnetic trip thresholds for the QDP22150TM?
This thermal-magnetic breaker has a fixed magnetic hold current of 1200A and a magnetic tripping current of 2400A.
Is the trip unit on the QDP22150TM adjustable?
No, it features a fixed, non-interchangeable thermal-magnetic trip unit with long-time and instantaneous (LI) functions.
What is the continuous current rating for this breaker?
The QDP22150TM is a standard 80 percent rated circuit breaker.
Is the QDP22150TM HACR rated?
Yes, this breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment.
Does this breaker include a push-to-trip feature?
Yes, it includes an integral push-to-trip button on the cover to manually trip the circuit breaker for testing and maintenance.
