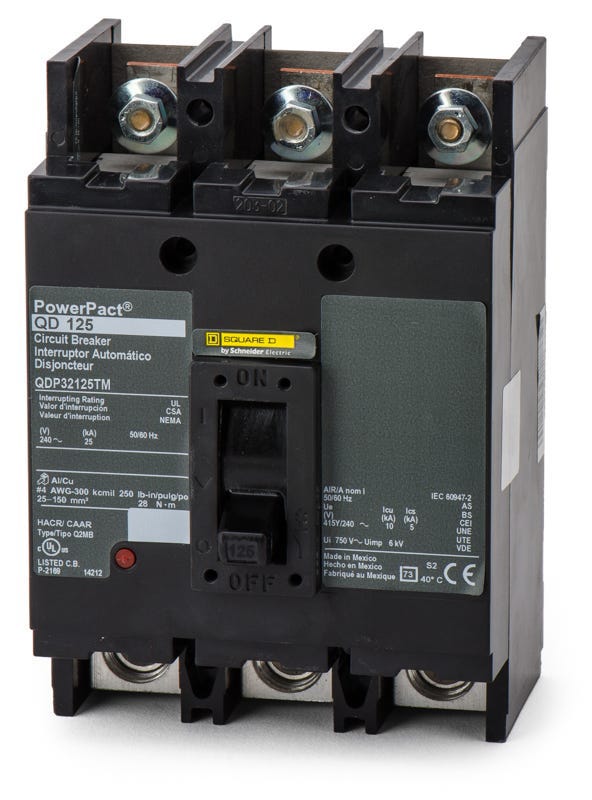

Square D QDP32125TM Molded Case Circuit Breaker
- 125A
- 3 Pole
- Bolt-On
Square D
QDP32125TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QDP32125TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDP32125TM - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDP32125TM - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | QDP |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Studs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D QDP32125TM - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QDP |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Studs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Designed to handle demanding 125-amp loads, this three-pole thermal-magnetic breaker ensures consistent performance across commercial facilities. It fastens securely into EZ Meter-Pak centers and compatible Square D panelboards using a dependable bolt-on mounting configuration. The device is the manufacturer's recommended substitute for older Q23125 units. Capable of interrupting 25kA faults at 240VAC, the HACR-rated unit includes a highly visible Visi-Trip indicator for quick diagnostics.Specifications
| Brand | Square D |
|---|---|
| Series | QDP |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Studs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat is the direct replacement for the obsolete Square D Q23125 circuit breaker?
The QDP32125TM is the manufacturer's recommended direct replacement for the legacy Q23125. The PowerPacT Q-frame series was designed by Schneider Electric to directly replace older Q2 series devices.
What type of terminal connections are included on the QDP32125TM?
The "TM" suffix in the catalog number indicates a hybrid terminal arrangement. The breaker features mounting studs with nuts and washers on the line side (ON end) and box-type lugs on the load side (OFF end).
What wire sizes are compatible with the load side lugs on this breaker?
The factory-installed load side lugs accept either aluminum or copper conductors ranging from 4 AWG to 300 kcmil.
What equipment is the QDP32125TM designed to be installed in?
This bolt-on Q-frame breaker is designed for use in Square D EZ Meter-Pak meter centers, as well as compatible unit-mount panelboards and switchboards.
Are the thermal and magnetic trip settings adjustable on the QDP32125TM?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous protection, but the trip points cannot be adjusted in the field.
Does this breaker include a push-to-trip feature for testing?
Yes, PowerPacT Q-frame circuit breakers include an integral push-to-trip button on the cover. This allows electricians to manually trip the breaker to verify the mechanical operation of the trip mechanism.
