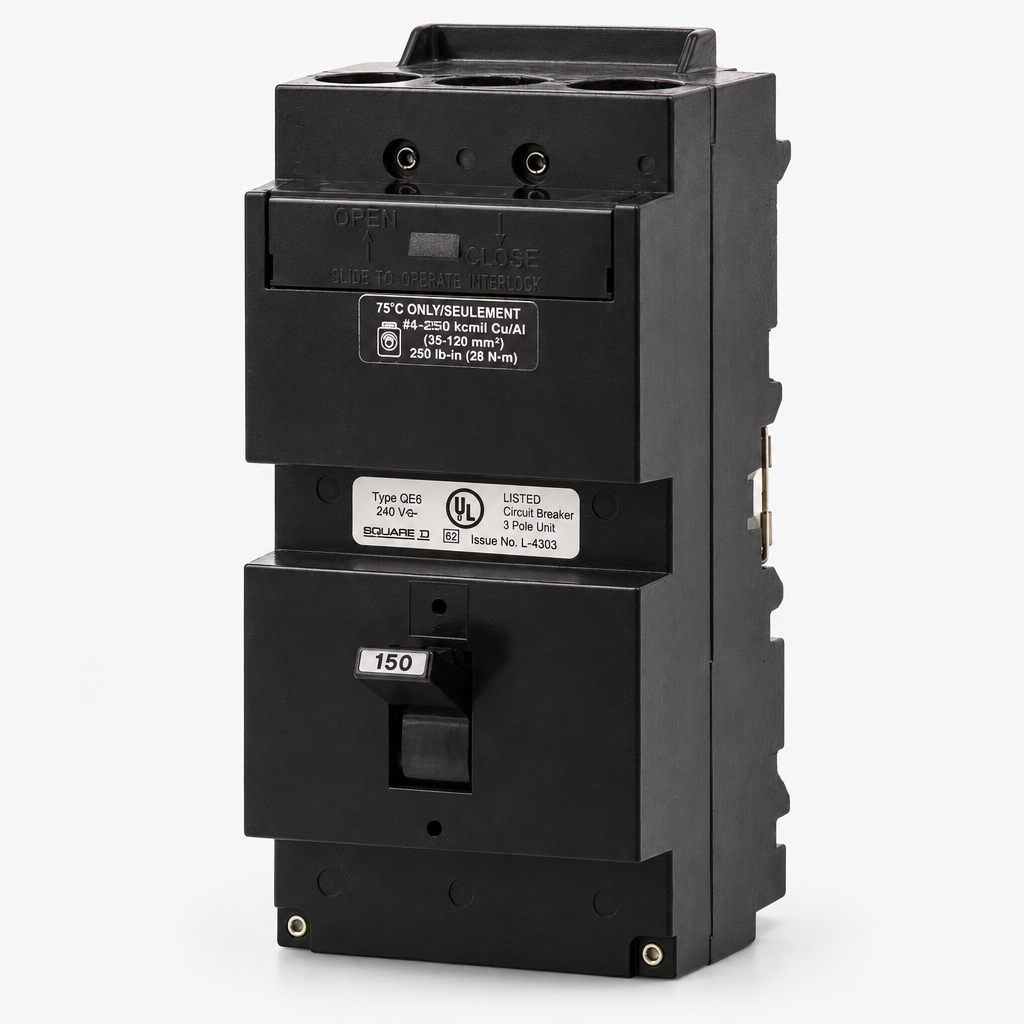

Square D QE3150VH Molded Case Circuit Breaker
- 150A
- 3 Pole
- Plug-On
Square D
QE3150VH
Molded Case Circuit Breaker
Brand
Square D
SKU
QE3150VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QE3150VH - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QE3150VH - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QE3150VH |
| Series | QE |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Square D EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Quantity
Square D QE3150VH - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QE3150VH |
| Series | QE |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Square D EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the QE3150VH is a three-pole molded case circuit breaker rated for 150 amps. It provides reliable thermal-magnetic protection for demanding electrical distribution systems. This plug-on breaker mounts into Square D EZ Meter-Pak meter centers, ensuring a secure and straightforward installation. Featuring a 22kAIC rating at 240VAC, it includes Visi-Trip technology for quick fault identification and is HACR rated for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | QE3150VH |
| Series | QE |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Square D EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Product FAQs
5 answersWhat equipment is the QE3150VH circuit breaker designed to fit?
This breaker mounts directly into Square D EZ Meter-Pak multi-metering centers that require a commercial 3-pole plug-on device.
Does this QE series breaker feature a tripped circuit indicator?
Yes, it includes the Square D Visi-Trip indicator. This provides a clear visual alert so you can quickly identify a tripped breaker in a multi-metering center without manual testing.
Are load lugs included with this breaker?
Yes, the breaker comes equipped with factory-installed box lugs on the load side. These lugs accept copper or aluminum conductors ranging from 4 AWG to 300 kcmil.
Can I adjust the trip settings on the QE3150VH?
No, the thermal-magnetic trip unit has fixed settings for both the long-time overcurrent and instantaneous short-circuit functions.
Is this circuit breaker rated for HVAC applications?
Yes, it is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment motor loads.
