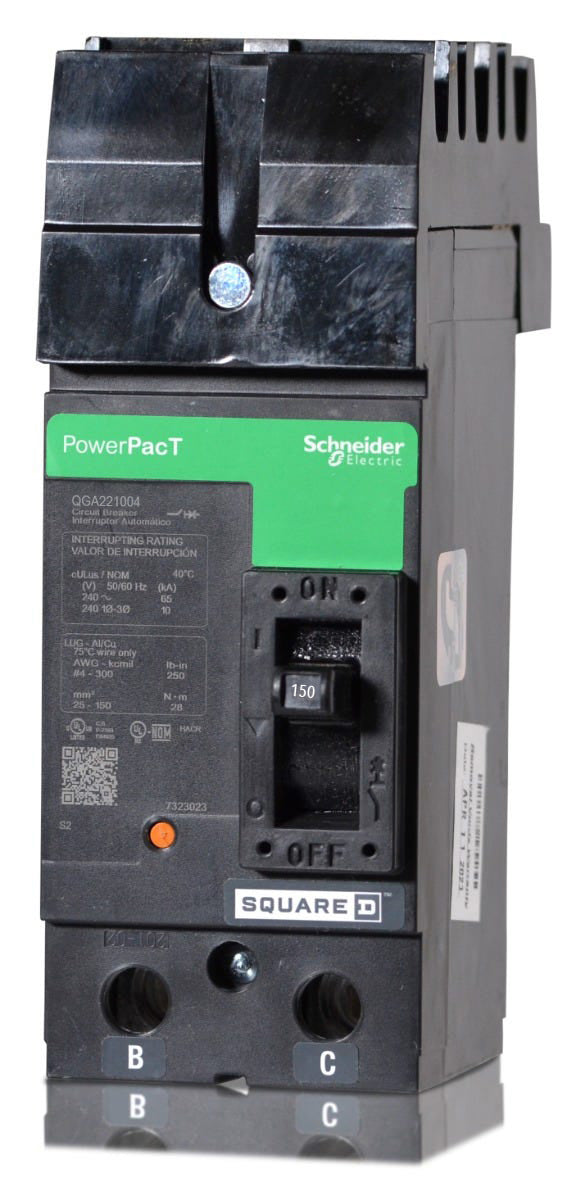

Square D QGA221004 Molded Case Circuit Breaker
- 100A
- 2 Pole
- I-Line
Square D
QGA221004
Molded Case Circuit Breaker
Brand
Square D
SKU
QGA221004
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGA221004 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Square D QGA221004 delivers 100A of thermal-magnetic protection. As a 2-pole MCCB from the PowerPacT Q-Frame family, it features a BC phase connection and Long-Time and Instantaneous (LI) trip functions. This unit installs into Square D I-Line panelboards (HCN, HCM, HCW) and switchboards. It serves as a direct replacement for legacy Q22100 breakers. Rated for 65kAIC at 240VAC, it includes a Visi-Trip indicator and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGA221004 |
| Series | QGA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards (HCN, HCM, HCW, HCWM), Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Padlock Attachment, Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Phase Connection BC, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat does the "4" at the end of the QGA221004 catalog number indicate?
The "4" indicates that this 2-pole I-Line circuit breaker is factory-configured for a BC phase connection. For an AB phase connection, the correct catalog number is QGA221001.
Is the QGA221004 a direct replacement for older Square D Q2 series breakers?
Yes. The PowerPacT Q-frame circuit breakers, including the QGA221004, are designed as direct replacements for legacy Square D Q2 series I-Line circuit breakers.
What size and type of wire can be used with the load lugs on the QGA221004?
The standard load lugs accept wire sizes ranging from 4 AWG to 300 kcmil. They are dual-rated for use with both copper (Cu) and aluminum (Al) conductors.
How much mounting space does this 2-pole Q-frame breaker require in an I-Line panelboard?
The QGA221004 requires 3 inches of mounting space. Q-frame I-Line circuit breakers measure 1.5 inches in width per pole.
Can I install the QGA221004 in a Square D NQ or NF series panelboard?
No. The QGA221004 features an I-Line style plug-in connection and is exclusively compatible with Square D I-Line panelboards, such as HCN, HCM, HCW, and HCWM, as well as I-Line switchboards.
Is the QGA221004 suitable for use on a 208Y/120V AC electrical system?
Yes. While it has a maximum voltage rating of 240V AC, it is fully rated for use on 208Y/120V AC systems and provides a 65kA interrupting capacity at that voltage.
Does the QGA221004 provide GFCI or AFCI protection?
No. This is a standard thermal-magnetic circuit breaker designed for equipment overcurrent and short-circuit protection. It does not include Ground Fault Circuit Interrupter (GFCI) or Arc Fault Circuit Interrupter (AFCI) functionality.
