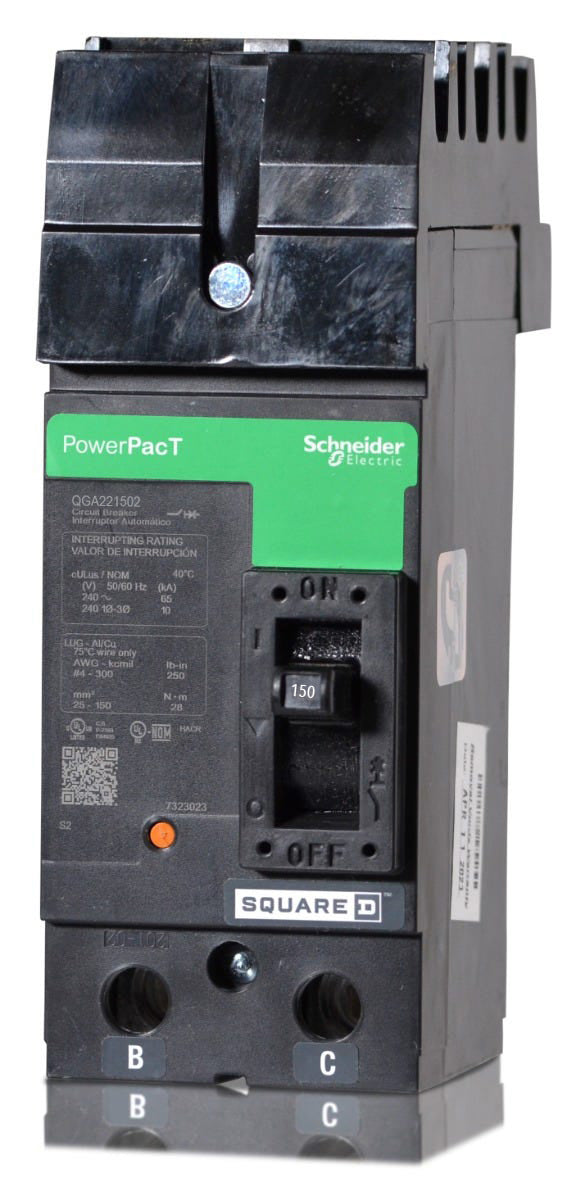

Square D QGA221502 Molded Case Circuit Breaker
- 150A
- 2 Pole
- I-Line
Square D
QGA221502
Molded Case Circuit Breaker
Brand
Square D
SKU
QGA221502
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGA221502 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QGA221502 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGA221502 |
| Series | QGA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase Connection AC (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Phase Connection AC, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Square D QGA221502 - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QGA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase Connection AC (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Phase Connection AC, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
150A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
Description
Providing robust thermal-magnetic protection, the Square D QGA221502 is a 2-pole, 150A MCCB. As part of the PowerPacT Q family, it handles the demanding requirements of commercial 240VAC electrical networks. This breaker mounts securely into Square D I-Line panelboards and replaces older Q22150AC breakers, ensuring continued compliance in existing infrastructure. Equipped with an AC phase connection, it offers a 65kA interrupting capacity, HACR certification, and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGA221502 |
| Series | QGA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase Connection AC (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Phase Connection AC, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhich panelboards accept the Square D QGA221502 circuit breaker?
This breaker is specifically designed for group-mounted construction in Square D I-Line panelboards and switchboards. It uses an I-Line style plug-in connection on the line side.
What phase connection does the QGA221502 use?
The 2 at the end of the catalog number indicates this 2-pole breaker is factory configured for an AC phase connection on the I-Line bus.
What are the wire size requirements for the load side lugs on the QGA221502?
The box-type lugs accommodate 4 AWG to 300 kcmil aluminum or copper conductors.
How does the QGA221502 differ from QBA or QDA breakers?
The G in the catalog number designates a 65kA at 240V AC interrupting rating. QBA and QDA models share the same physical footprint but have lower interrupting ratings of 10kA and 25kA respectively.
Is the QGA221502 a suitable replacement for older Q2 series breakers?
Yes, the PowerPacT Q-frame is the direct replacement for legacy Square D Q2 series devices. Ensure the amperage, voltage, and phase connection match your existing breaker.
Does this breaker require a separate mounting bracket for I-Line panels?
No, the QGA221502 features an integrated I-Line shroud on the ON end for direct plug-in mounting to the panelboard bus.
What type of protection does the QGA221502 trip unit provide?
It includes a fixed thermal-magnetic trip unit that provides long-time (overload) and instantaneous (short circuit) protection. The trip elements are non-interchangeable.
Does the QGA221502 include a mechanism to manually test the trip function?
Yes, all PowerPacT Q-frame circuit breakers feature an integral push-to-trip button on the cover to manually trip the breaker and verify the mechanism is operating correctly.
