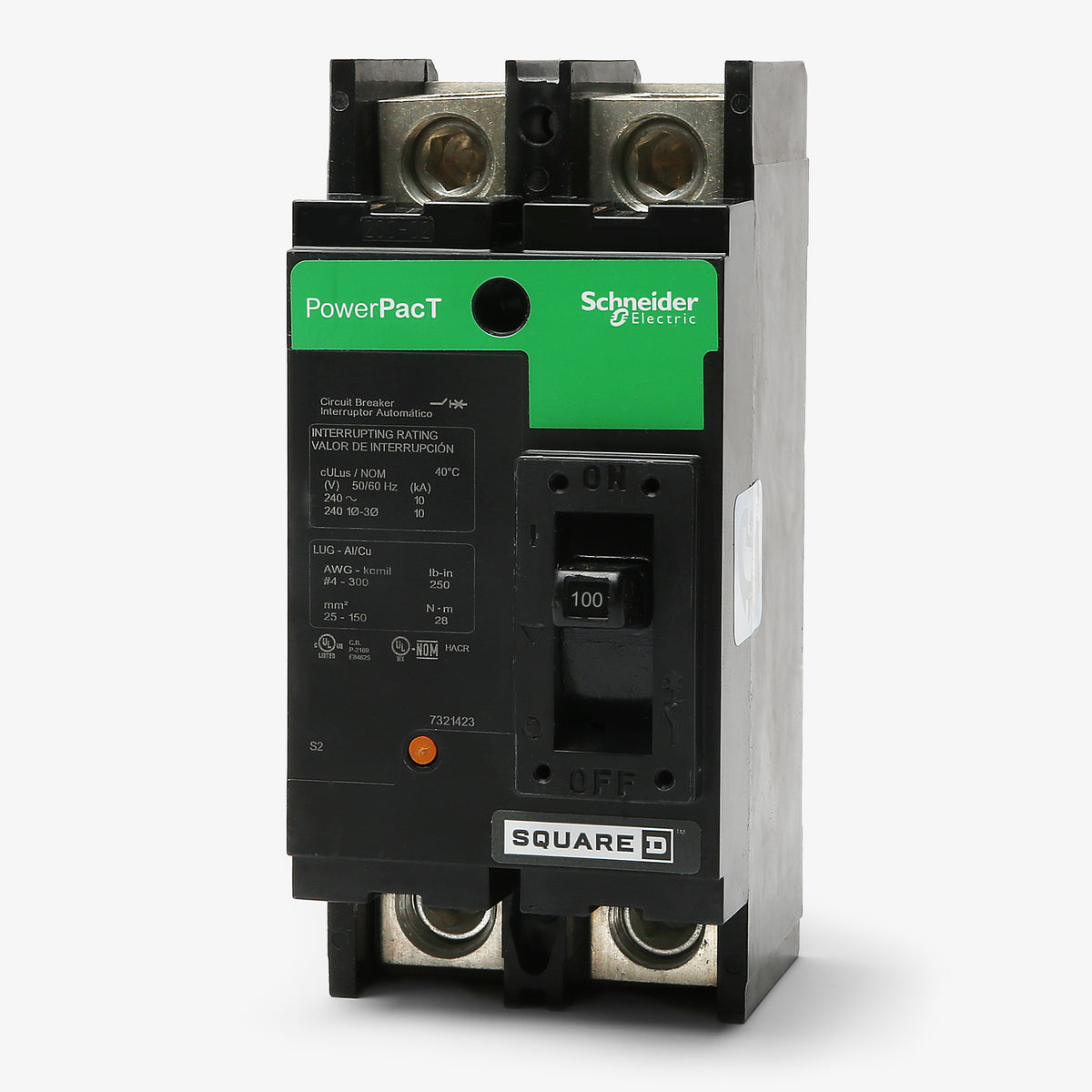

Square D QGL22100 Circuit Breaker
- 100
- 2 Pole
- Unit
Square D
QGL22100
Circuit Breaker
Brand
Square D
SKU
QGL22100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGL22100 2 Pole Circuit Breaker
New
Quantity
Quantity
Square D QGL22100 2 Pole Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGL22100 |
| Series | QGL |
| Amperage | 100 A |
| Poles | 2 |
| Mounting Style | Unit |
| Voltage | 240V |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQOD Panelboards, NQ Panelboards, Switchboards, Individual Enclosures |
| Wire Gauge | 4 AWG-300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Quantity
Square D QGL22100 2 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QGL |
| Amperage | 100 A |
| Poles | 2 |
| Mounting Style | Unit |
| Voltage | 240V |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQOD Panelboards, NQ Panelboards, Switchboards, Individual Enclosures |
| Wire Gauge | 4 AWG-300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Similar Items
70A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
Description
Square D QGL22100 2 Pole Circuit Breaker
The Square D QGL22100 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 240V. It has an interrupting rating of 65kAIC at 240V. The QGL22100 has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Square D |
|---|---|
| Part Number | QGL22100 |
| Series | QGL |
| Amperage | 100 A |
| Poles | 2 |
| Mounting Style | Unit |
| Voltage | 240V |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQOD Panelboards, NQ Panelboards, Switchboards, Individual Enclosures |
| Wire Gauge | 4 AWG-300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat types of panelboards and enclosures accept the QGL22100 breaker?
This unit mount breaker is designed for use in Square D NQOD and NQ panelboards, as well as compatible switchboards and individual enclosures.

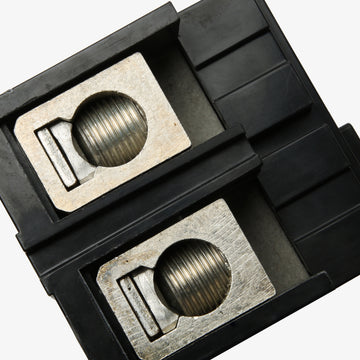

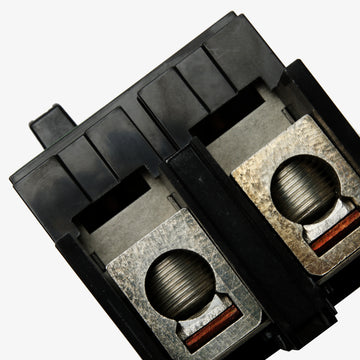

What are the wire size and torque specifications for the lugs on this breaker?
The factory installed lugs accept 4 AWG to 300 kcmil aluminum or copper conductors. The required tightening torque is 247.8 lb-in (28 N.m).
What are the magnetic trip settings for the QGL22100?
This thermal magnetic breaker features fixed trip settings with a magnetic hold current of 1200A and a magnetic tripping current of 2400A.
What do the letters in the QGL22100 catalog number indicate?
"Q" designates the PowerPacT Q-Frame, "G" indicates the 65kA at 240V interrupting rating, and "L" specifies that it is a unit mount breaker with lugs on both the line and load sides.
Is the QGL22100 rated for 100% continuous current?
No, this breaker has a standard 80% continuous current rating.
