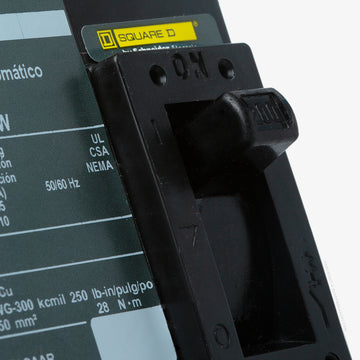

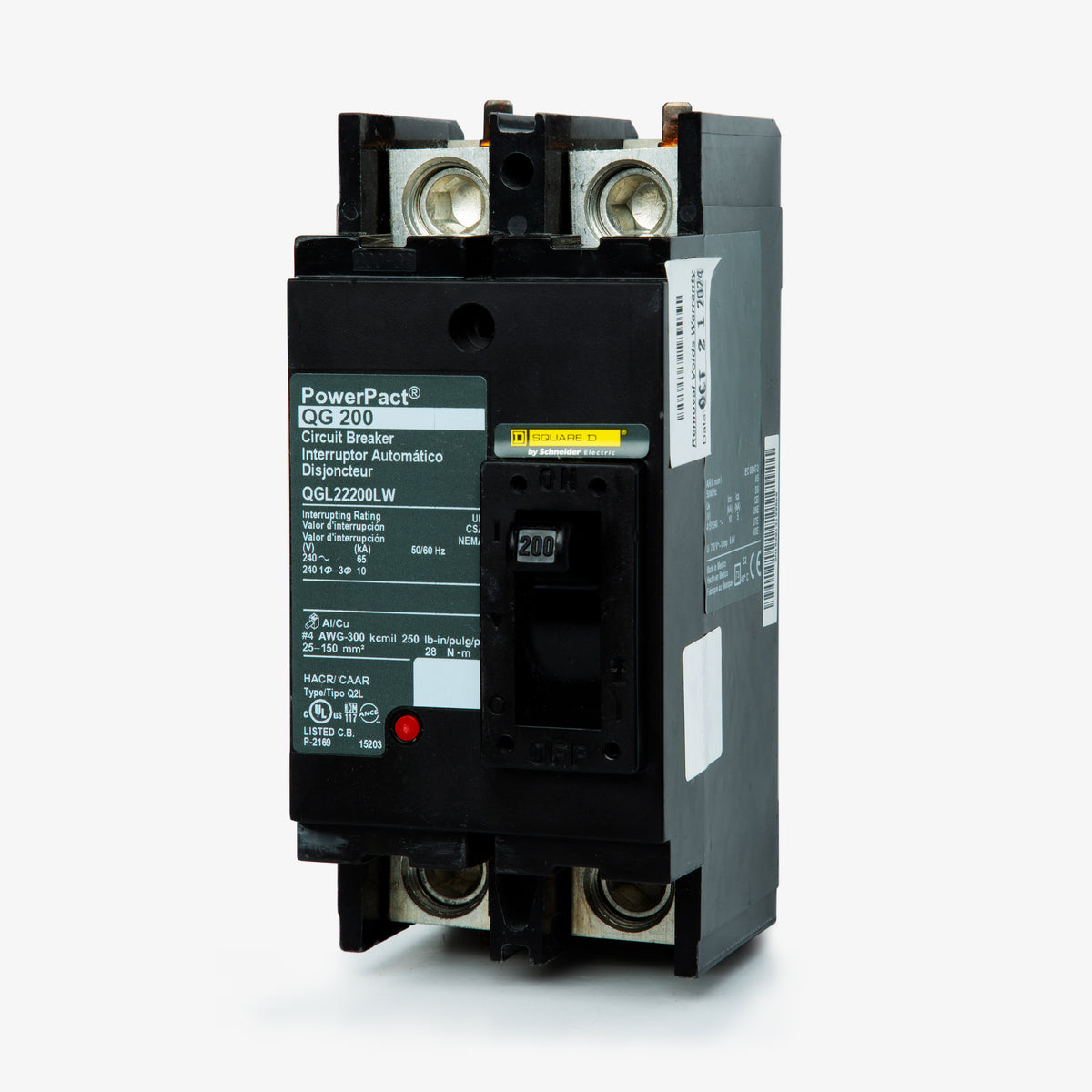

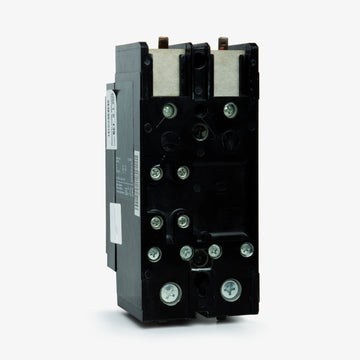

Square D QGL22200LW Molded Case Circuit Breaker
- 200A
- 2 Pole
- Unit Mount
Square D
QGL22200LW
Molded Case Circuit Breaker
Brand
Square D
SKU
QGL22200LW
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGL22200LW - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
175A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial distribution systems, the Square D QGL22200LW is a 2-pole, 200A molded case circuit breaker from the PowerPacT Q-Frame series. It delivers reliable thermal-magnetic protection with fixed LI functions. This unit-mount breaker installs into Square D NQ and NQOD panelboards, switchboards, and enclosures. It functions as a drop-in upgrade for the legacy Q2L2200. Rated at 65kAIC at 240V, it ensures robust fault protection and features integrated control wire taps.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGL22200LW |
| Series | QGL |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQOD Panelboards, NQ Panelboards, Switchboards, Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included, Control Wire Taps |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
7 answersWhich panelboards accept the QGL22200LW circuit breaker?
This PowerPacT Q-frame breaker installs directly into Square D NQ and NQOD panelboards, as well as compatible switchboards and individual enclosures.
Can the QGL22200LW be used to replace older Square D breakers?
Yes, this PowerPacT Q-frame breaker serves as a direct drop-in upgrade and replacement for the legacy Square D Q2L2200 circuit breaker.
What does the LW suffix designate on this specific catalog number?

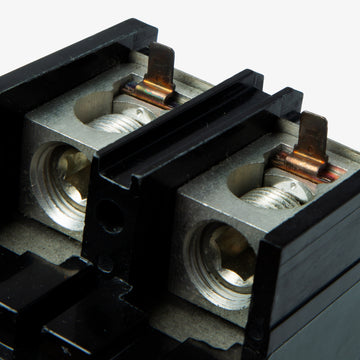

The LW suffix indicates that the breaker is equipped with control wire taps on both the line and load side lugs.
What wire sizes and materials are supported by the factory lugs?
The standard line and load lugs accept either copper or aluminum conductors ranging from 4 AWG to 300 kcmil.
What are the specific magnetic trip thresholds for this 200A breaker?
The fixed thermal-magnetic trip unit features a magnetic hold current of 1200A and a magnetic trip current of 2400A.
Does the 65kAIC rating apply to lower voltage applications?
Yes, the 65kA interrupting capacity applies to 240VAC systems as well as 208Y/120VAC and 120VAC applications.
Does this breaker plug into an I-Line bussing system?
No, the QGL22200LW is a unit mount, feed-thru circuit breaker designed for lug connections. It is not compatible with I-Line panelboards.
