Square D QO115EPD GFEP Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Square D
QO115EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
QO115EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

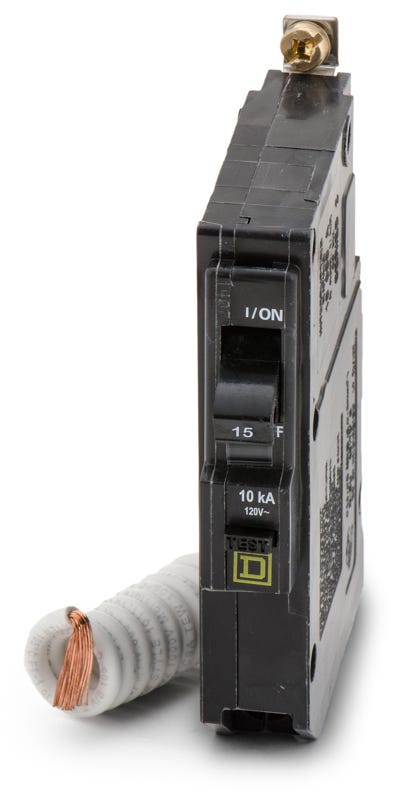

Square D QO115EPD - 15A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFEP Miniature Circuit Breaker
15A GFEP Miniature Circuit Breaker
15A GFEP Miniature Circuit Breaker
Description
Designed for commercial applications, the Square D QO115EPD is a 1-pole, 15A miniature circuit breaker delivering thermal-magnetic overcurrent and 30mA ground fault equipment protection. This plug-on breaker installs into Square D QO load centers and NQ panelboards. It utilizes a pressure plate terminal and accepts 14-8 AWG copper or 12-8 AWG aluminum wiring. Rated for 10 kAIC at 120VAC, it features the Visi-Trip indicator for clear visual confirmation of a tripped circuit.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO115EPD |
| Series | QO |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, HACR, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
6 answersWhat panels are compatible with the QO115EPD circuit breaker?
This plug-on breaker is designed exclusively for use in Square D QO load centers and NQ panelboards. It is not compatible with Homeline load centers or panels from other manufacturers.
What is the ground fault trip threshold for the QO115EPD?
This Equipment Protection Device (EPD) features a 30mA ground fault trip threshold. It is designed to protect equipment from low-level faults and is not intended for 5mA Class A personnel protection.
Does the QO115EPD require a neutral connection to function properly?
Yes, this breaker includes a pigtail neutral wire that must be connected directly to the neutral bus bar in the panel for the ground fault sensing circuitry to operate correctly.
What types of applications typically require a 30mA GFEP breaker?
Equipment protection devices (EPD) are commonly used for heat trace cables, snow melting equipment, and dedicated machinery where a standard 5mA GFCI might experience nuisance tripping.
Is there a bolt-on equivalent for the QO115EPD?
Yes, if you are installing in a panelboard that requires bolt-on connections, you will need the QOB115EPD instead of this plug-on QO version.
Can the QO115EPD be used to meet NEC requirements for bathroom or kitchen receptacle circuits?
No. Receptacles in bathrooms and kitchens require 5mA Class A personnel protection. This EPD breaker has a 30mA trip threshold and is strictly rated for equipment protection.
