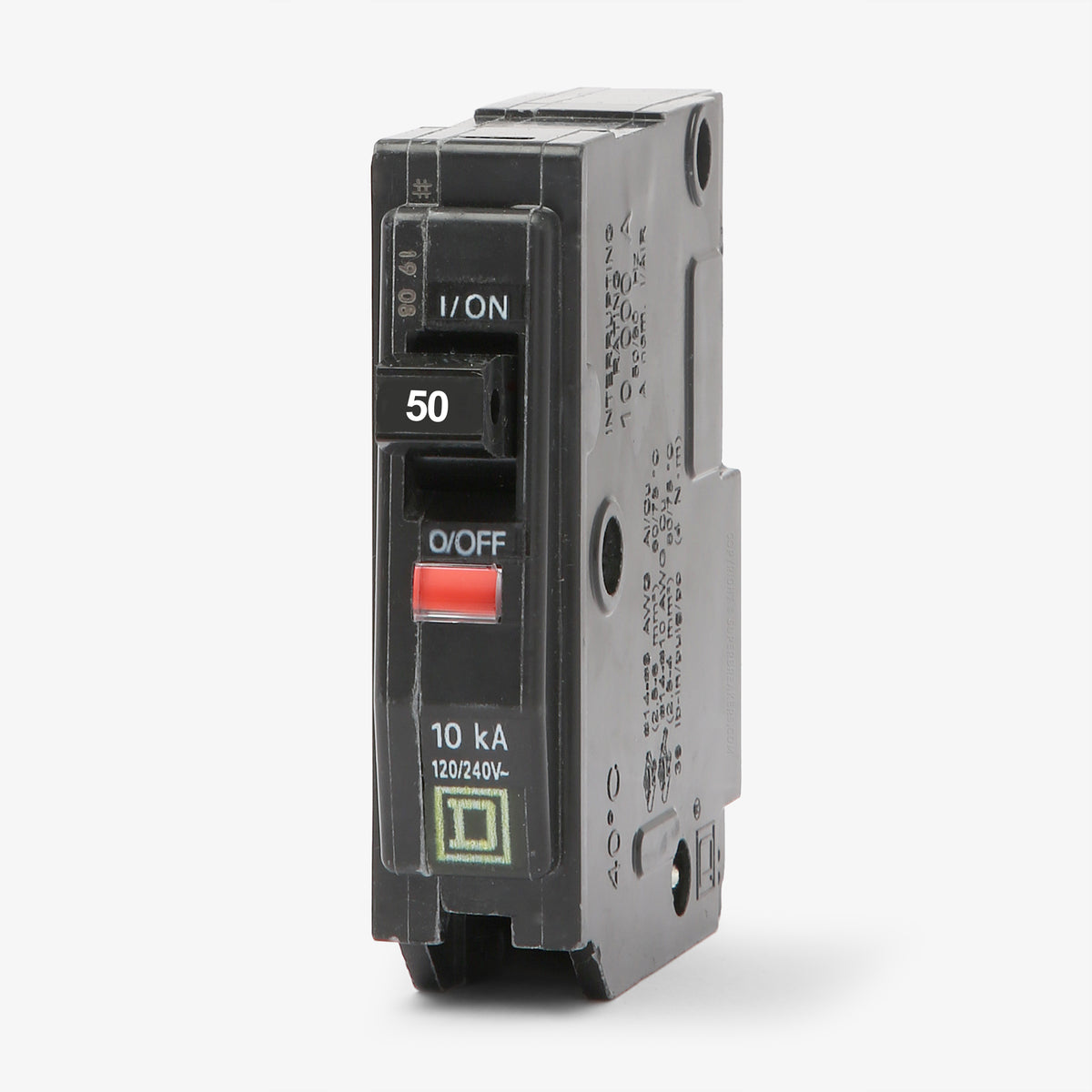

Square D QO150 Miniature Circuit Breaker
- 50A
- 1 Pole

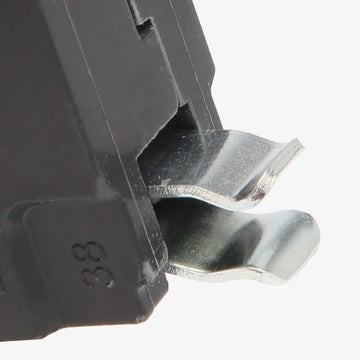

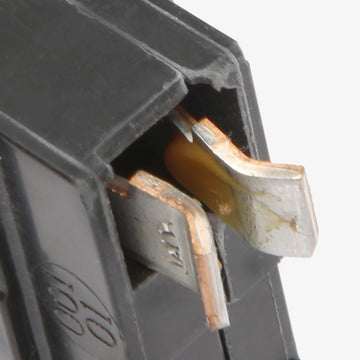

- Plug-On
Square D
QO150
Miniature Circuit Breaker
Brand
Square D
SKU
QO150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO150 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QO150 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO150 |
| Series | QO |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 8-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D QO150 - 50A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO150-R |
| Series | QO |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 8-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
40A 1 Pole Miniature Circuit Breaker
35A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
Description
Part of the QO series, this 50A single-pole miniature circuit breaker delivers reliable thermal-magnetic protection for residential and commercial applications. It is engineered to handle standard electrical loads while maintaining a compact 3/4-inch profile. This unit mounts into Square D QO load centers and NQ panelboards. The plug-on design ensures a secure connection, streamlining the installation process. Rated for 10kAIC at 120/240V, it includes Square D's signature Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO150 |
| Series | QO |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 8-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersCan I install this breaker in a Square D Homeline panel?
No. QO series breakers feature a 3/4-inch plug-on design and are not compatible with Homeline load centers, which require a 1-inch wide format.
What is the recommended tightening torque for the load terminal?
The box lug terminal requires a tightening torque of 44.25 lb-in (5 N.m). Always verify torque specifications with the panel label prior to installation.
Is this breaker rated for heating, air conditioning, and refrigeration equipment?
Yes, it carries a HACR rating, making it suitable for branch circuit protection on compatible HVAC equipment.
What is the bolt-on equivalent to this model?
The QOB150 is the bolt-on cross-reference. It features identical electrical characteristics but is designed to bolt directly to the busbar in NQ or NQOD panelboards.
How much panel space does this component require?
It occupies a single 3/4-inch space in a compatible load center or panelboard.
Will this plug-on breaker fit in older NQOD panelboards?
Yes. While designed for modern NQ panels, it is also backwards compatible with legacy NQOD panelboards configured to accept plug-on models.
