Square D QO215SWN Circuit Breaker
Quantity
Core Specs
See full specs
Square D QO215SWN 2 Pole Circuit Breaker
New
Quantity
Description

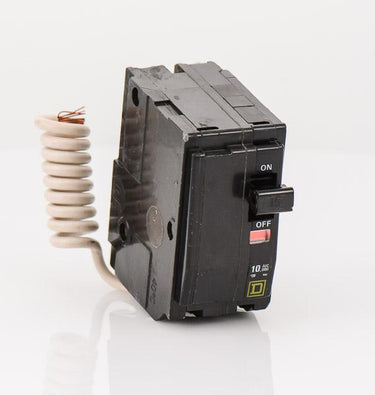

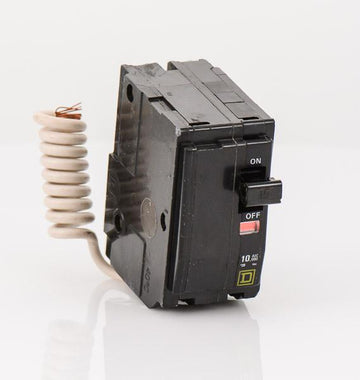

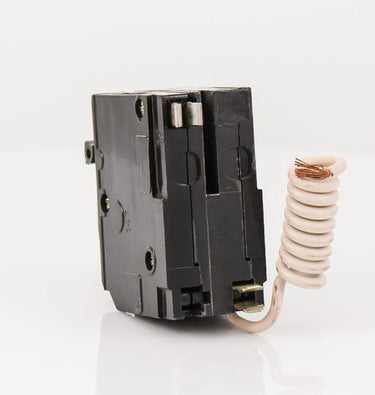

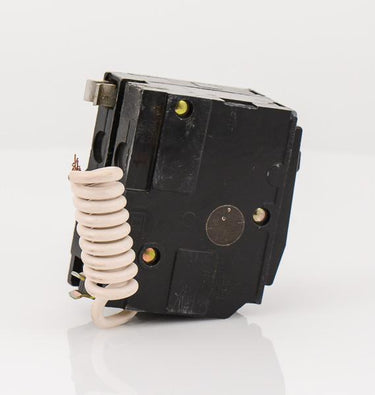

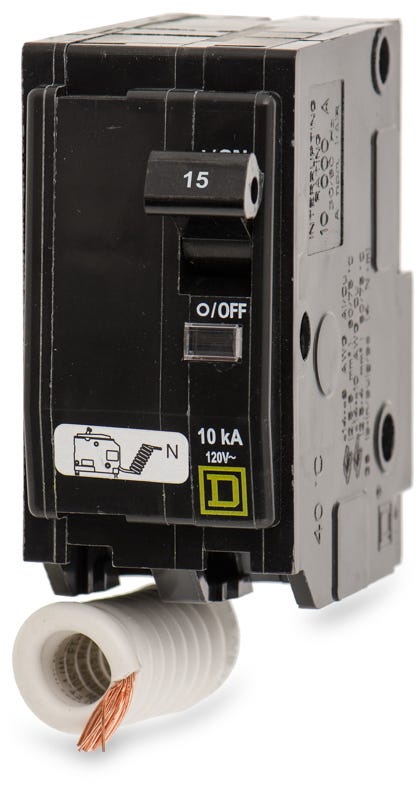

Square D QO215SWN 2 Pole Circuit Breaker
The Square D QO215SWN is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 15 Amps and a voltage rating of 120VAC. It has an interrupting rating of 10kAIC at 120VAC. The QO215SWN has a plug-in connection type and includes LI - long-time and instantaneous trip functions.
Specifications
| Amperage | 15 A |
|---|---|
| Voltage | 120VAC |
| Series | QO |
| Poles | 2 |
| Phase | 1 |
|---|---|
| Interrupting Rating | 10kAIC at 120VAC |
| Mounting Type | Plug-In |
|---|---|
| Frame Type | QO |
| Connection Type | Plug-In |
| Terminal Connection | Pressure Plate |
| Length (in) | 2.9 |
| Width (in) | 1.5 |
| Height (in) | 3.0 |
| Wire Gauge | AWG 14 to AWG 8, Copper or Aluminum |
| Protection | Thermal Magnetic |
|---|---|
| Functions | LI - Long-Time and Instantaneous Trip |
| Circuit Breaker Type | Switch Neutral |
| Approval | UL, CSA |
|---|---|
| Temperature Rating | 40 °C |
| Brand | Square D |
|---|---|
| MPN | QO215SWN |
| UPC | 785901400332 |
