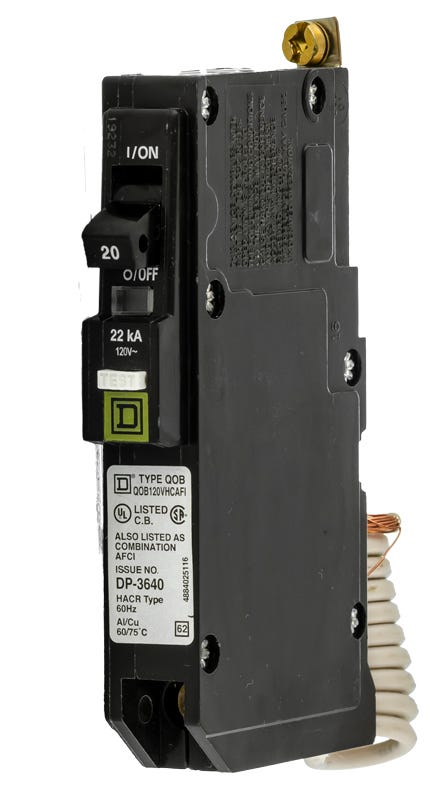

Square D QOB120VHCAFI AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Quantity
Square D QOB120VHCAFI - 20A AFCI Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB120VHCAFI - 20A AFCI Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB120VHCAFI |
| Series | QOB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 1699 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated, SWD Rated, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Square D QOB120VHCAFI - 20A AFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 1699 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated, SWD Rated, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism |
Description
Rated 22 kAIC at 120VAC, this high-interrupting combination arc-fault breaker handles commercial and industrial branch circuit protection. It installs into Square D NQ and NQOD panelboards using a reliable bolt-on connection. The unit features a standard pigtail neutral for straightforward installation and includes the signature Visi-Trip indicator to quickly identify tripped circuits. Meets NEC requirements for comprehensive arc-fault mitigation.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB120VHCAFI |
| Series | QOB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 1699 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated, SWD Rated, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhat panelboards are compatible with the QOB120VHCAFI?
This bolt-on breaker is designed for use in Square D NQ and legacy NQOD panelboards. It will not fit in standard QO load centers, which require plug-on breakers.
What does the VH designation indicate on this breaker?
The VH suffix denotes a higher interrupting rating of 22kAIC at 120V, compared to the standard 10kAIC rating found on standard QOB breakers.
Does the QOB120VHCAFI feature a pigtail or plug-on neutral?
This model features a standard pigtail neutral. The coiled white wire must be routed and terminated directly to the panel neutral bus bar to power the internal AFCI circuitry.
What level of arc fault protection does the CAFI designation provide?
CAFI stands for Combination Arc Fault Circuit Interrupter. It provides protection against both parallel arcs (line-to-neutral or line-to-ground) and series arcs (loose connections within a single conductor) to meet NEC requirements for branch circuits.
Is this a direct replacement for the standard QOB120CAFI?
Yes, it can replace a standard QOB120CAFI. The VH version provides a higher 22kAIC interrupting rating, making it suitable for systems with higher available fault current while maintaining the same physical footprint and AFCI functionality.
