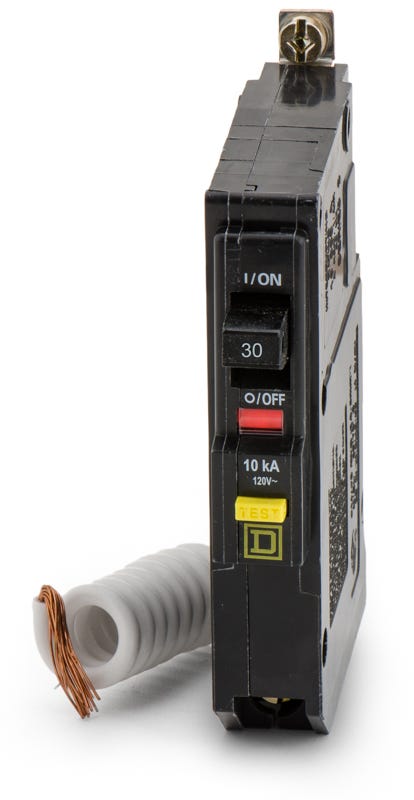

Square D QOB130GF GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Square D
QOB130GF
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QOB130GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB130GF - 30A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB130GF - 30A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB130GF |
| Series | QOB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Sold out
Quantity
Square D QOB130GF - 30A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB130GF-R |
| Series | QOB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Similar Items
30A GFCI Miniature Circuit Breaker
25A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
Description
The QOB130GF is a 30A, 120VAC single-pole breaker designed to deliver reliable Class A (6mA) ground fault protection. With a 10 kAIC rating, it safeguards personnel in commercial environments where moisture is present. Featuring a bolt-on connection, this breaker mounts into Square D NQ and NQOD panelboards. It includes a pigtail neutral wire for installation. Note that this model is replaced by the QOB130GFI. The integrated Visi-Trip indicator clearly flags tripped conditions.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB130GF |
| Series | QOB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
6 answersCan I install the QOB130GF in a standard Square D QO load center?
No. The QOB130GF is a bolt-on circuit breaker designed exclusively for Square D NQ and NQOD panelboards. Standard QO residential load centers require plug-on breakers.
What is the plug-on equivalent for this breaker?
If you need this same 30A GFCI protection for a standard plug-on QO load center, you should use the QO130GF or QO130GFI.
What level of ground fault protection does the QOB130GF provide?
This breaker provides Class A ground fault protection. It is designed to trip when a ground fault reaches the 6mA threshold, protecting personnel from electrical shock in areas prone to moisture.
How do I connect the pigtail neutral on this breaker?
The factory-installed white pigtail wire must be connected directly to the neutral bar in your NQ or NQOD panelboard. This connection is required to power the internal ground fault monitoring circuitry.
Does this breaker feature a Visi-Trip indicator?
Yes. The QOB130GF includes Square D Visi-Trip technology. When the breaker trips due to an overload, short circuit, or ground fault, a highly visible red flag appears in the indicator window to help you quickly locate the tripped breaker.
Is the QOB130GF still the current model?
Square D has transitioned this model to the newer QOB130GFI. Both part numbers represent the same 30A, 1-pole, bolt-on GFCI breaker for NQ and NQOD panels.
