Square D QOB2110VH Miniature Circuit Breaker
- 110A
- 2 Pole
- Bolt-On
Square D
QOB2110VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOB2110VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

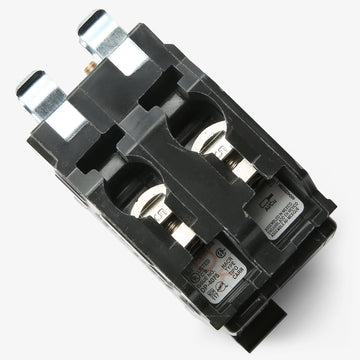

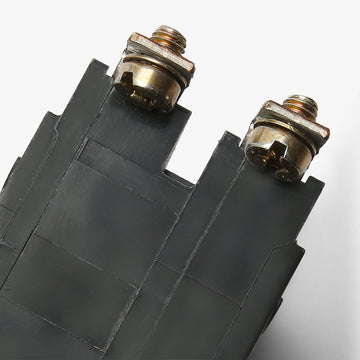

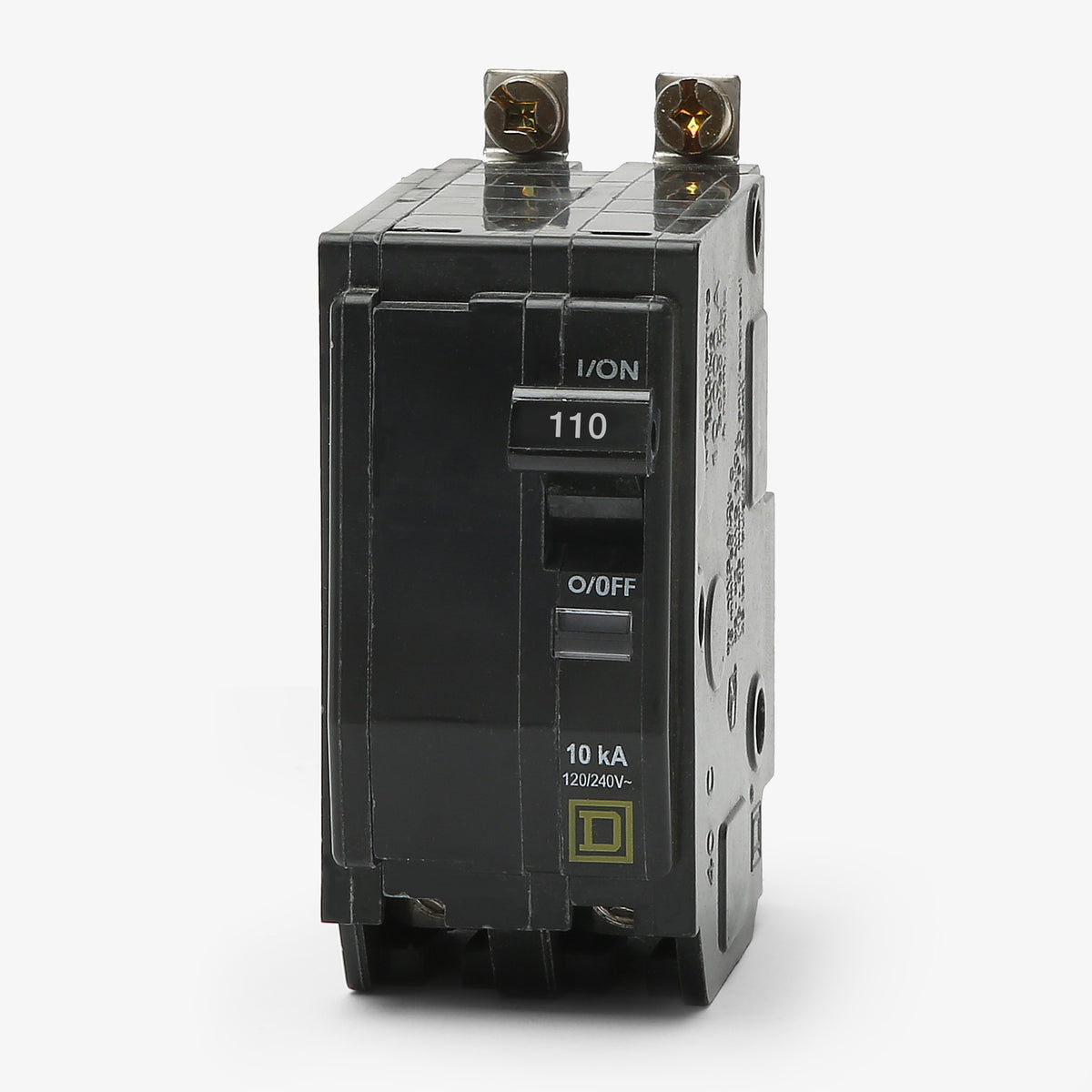

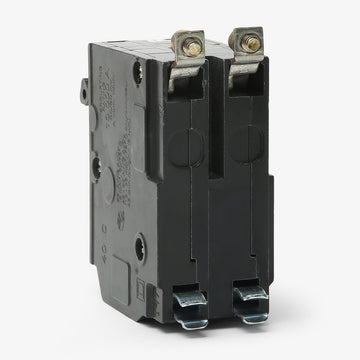

Square D QOB2110VH - 110A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
125A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
Description
Providing enhanced fault clearing capabilities, this 110A two-pole component is built for commercial and industrial facilities requiring higher interrupting ratings. It mounts into standard Square D NQ and NQOD panelboards using secure bolt-on terminals. With a 22kAIC rating at 120/240VAC, the device offers superior protection against severe short circuits while featuring the standard Visi-Trip window for immediate visual status confirmation.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB2110VH |
| Series | QOB |
| Amperage | 110A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QO-Frame |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip, High Interrupting Capacity |
Product FAQs
6 answersWhat panelboards are compatible with the QOB2110VH?
Because it features a bolt-on mounting design, it must be installed in Square D NQ or NQOD panelboards. It cannot be used in standard QO load centers, which require plug-on breakers.
How many panel spaces does the QOB2110VH require?
Although it is a 2-pole breaker, the QOB2110VH requires four pole spaces when installed in a single-phase NQ panelboard interior due to its 110A rating and physical size.
What does the "VH" suffix indicate on the QOB2110VH?
The "VH" suffix indicates a higher interrupting rating. While standard QOB breakers are rated at 10kAIC, the QOB2110VH is rated for 22kAIC at 120/240V AC.
What is the plug-on equivalent to the QOB2110VH?
The plug-on equivalent for use in standard QO load centers is the QO2110VH.
Does this breaker include Visi-Trip indication?
Yes, the QOB2110VH features a Visi-Trip indicator that provides a clear visual signal when the breaker has tripped, making it easier to identify faults in a crowded panel.
Is the QOB2110VH rated for DC voltage applications?
Yes, Square D QOB circuit breakers can be used in DC power systems with ratings up to 48V DC.
