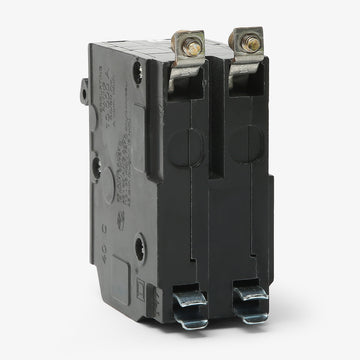

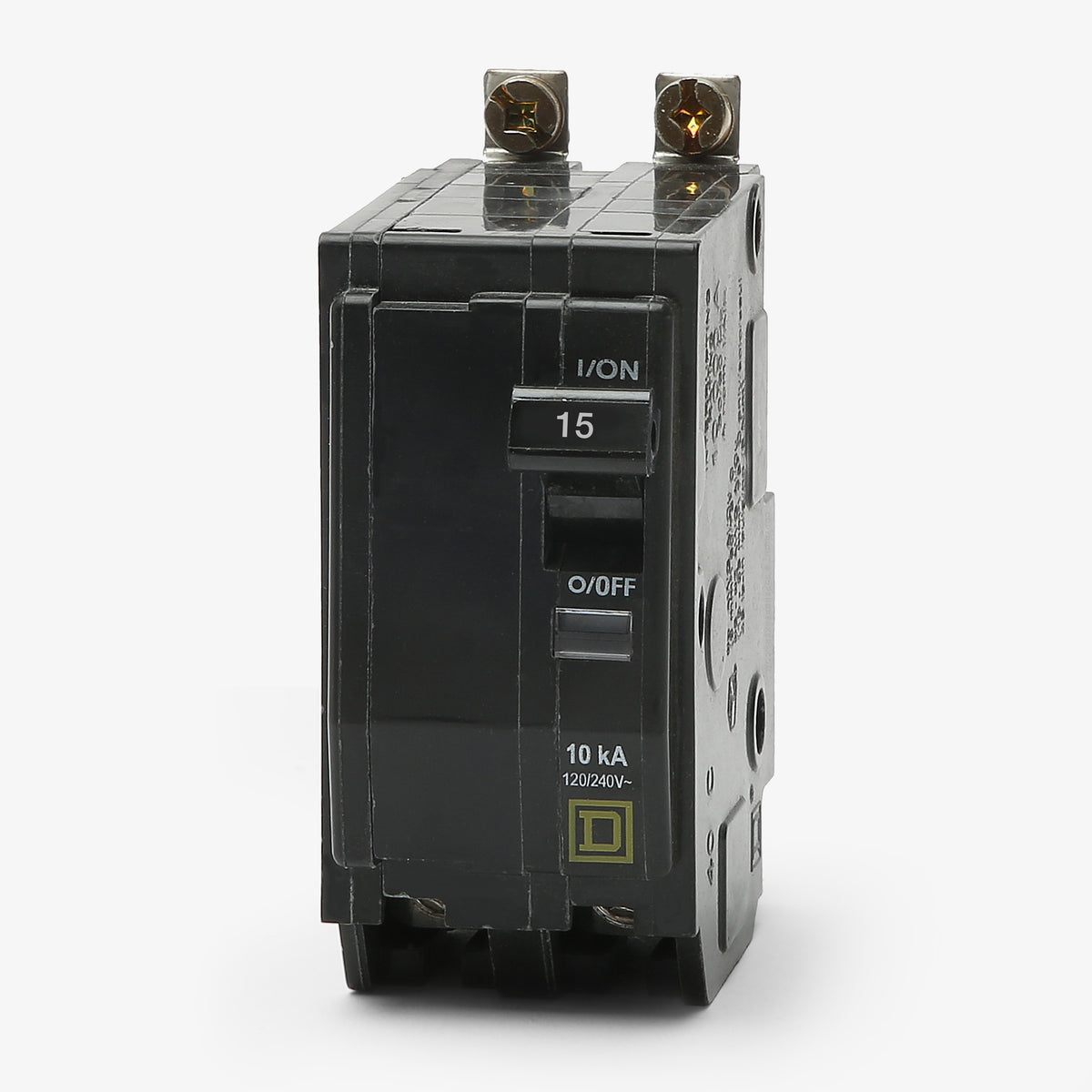

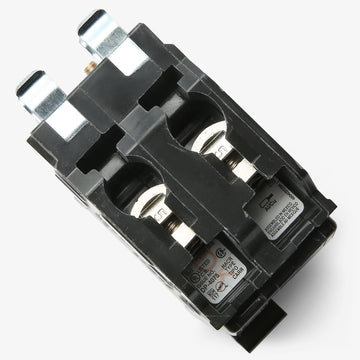

Square D QOB215VH Miniature Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Square D
QOB215VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOB215VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB215VH - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB215VH - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB215VH |
| Series | QOB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, High Interrupting Capacity |
Sold out
Quantity
Square D QOB215VH - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB215VH-R |
| Series | QOB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, High Interrupting Capacity |
Similar Items
QOB220VH1021 - 20A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description
Part of the Square D QO family, the QOB215VH is a 15-amp, 2-pole bolt-on circuit breaker designed for robust commercial and industrial applications. It installs into NQ and NQOD panelboards, utilizing a bolted connection to prevent loosening in high-vibration settings. The "VH" designation indicates a high interrupting capacity of 22 kAIC at 120/240VAC, offering enhanced protection against severe short circuits compared to standard 10kA models.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB215VH |
| Series | QOB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, High Interrupting Capacity |
Product FAQs
5 answersWhat does the "VH" stand for in the QOB215VH part number?
The "VH" indicates a Very High interrupting rating. The QOB215VH is rated for 22kAIC at 120/240VAC, whereas a standard QOB215 is rated for 10kAIC.
Can I use the QOB215VH in a standard QO load center?
No. The QOB215VH is a bolt-on circuit breaker designed specifically for Square D NQ and legacy NQOD panelboards. Standard QO load centers require plug-on breakers.
Can I replace a standard QOB215 with a QOB215VH?
Yes, the QOB215VH has the same physical dimensions and bolt-on mounting as the standard QOB215. It can be used as a direct replacement when a higher 22kAIC interrupting rating is required by the electrical system.
Does the QOB215VH feature a Visi-Trip indicator?
Yes, this breaker includes a Visi-Trip indicator. When the breaker trips, a highly visible red flag appears in the window to help you quickly identify the faulted circuit in a crowded panelboard.

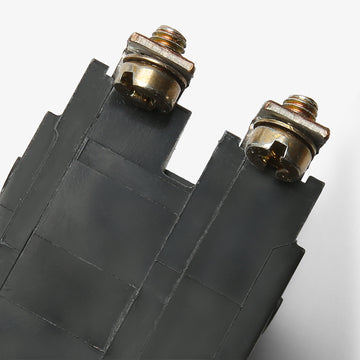

How does the QOB215VH connect to the panelboard bus?
The QOB215VH uses a bolt-on connection. It features a built-in mounting screw that physically bolts the breaker directly to the panelboard bus bar, providing a secure, vibration-resistant connection for commercial and industrial applications.
