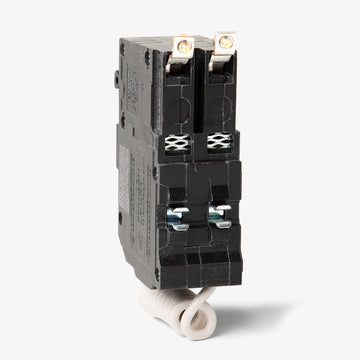

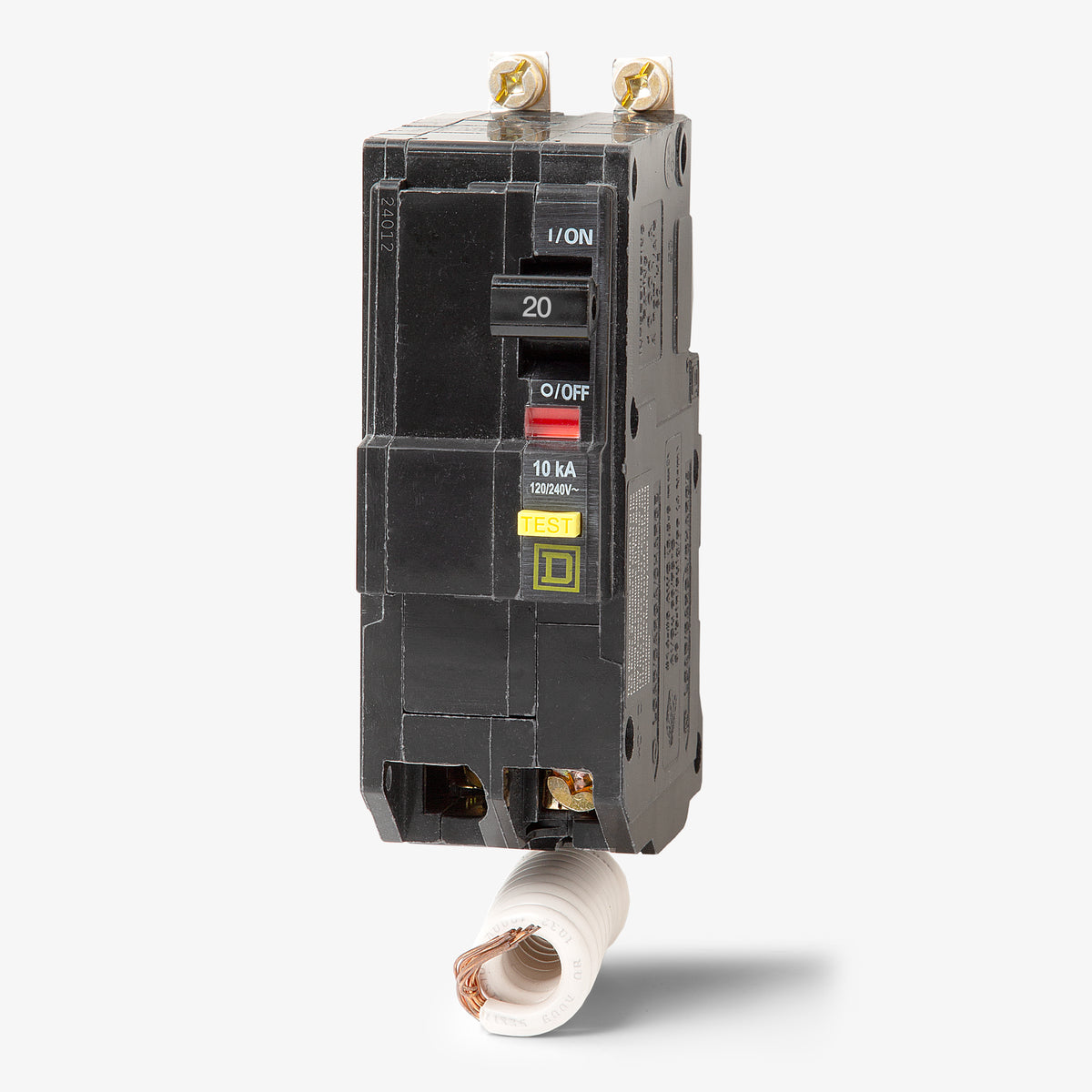

Square D QOB220GFI GFCI Miniature Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
Square D
QOB220GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QOB220GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB220GFI - 20A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB220GFI - 20A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB220GFI |
| Series | QOB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, RoHS Compliant |
Sold out
Quantity
Square D QOB220GFI - 20A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB220GFI-R |
| Series | QOB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, RoHS Compliant |
Similar Items
15A GFCI Miniature Circuit Breaker
I - 30A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
Description
Built for commercial applications, the QOB220GFI delivers reliable 6mA Class A ground fault protection. This 2-pole, 20A miniature circuit breaker safeguards personnel in wet locations per NEC requirements. It mounts into Square D NQ and NQOD panelboards using a bolt-on connection. The unit includes a pigtail neutral and is rated for 10kAIC at 120/240VAC. The Visi-Trip indicator provides immediate visual confirmation of a tripped circuit, minimizing downtime.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB220GFI |
| Series | QOB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, RoHS Compliant |
Product FAQs
7 answersCan I install the QOB220GFI in a standard QO load center?
No. The QOB220GFI is a bolt-on circuit breaker engineered specifically for Square D NQ and NQOD panelboards. Standard residential QO load centers require plug-on circuit breakers.
What is the plug-on equivalent to the QOB220GFI?
The plug-on alternative is the QO220GFI. It provides the exact same 20A, 2-pole Class A ground-fault protection but features a plug-on connection designed for standard QO load centers.
What is the difference between the QOB220GFI and the QOB220EPD?
The QOB220GFI offers Class A ground-fault protection, tripping at 6mA for personnel safety. The QOB220EPD is an Equipment Protection Device (EPD) that trips at a 30mA threshold, engineered to protect equipment rather than personnel.
Can the QOB220GFI be used on a straight 240V circuit that lacks a load neutral?

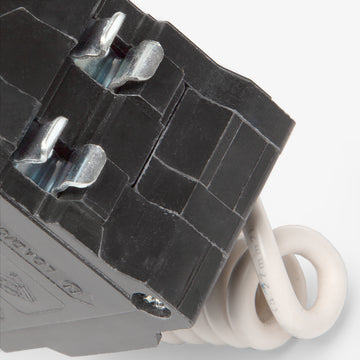

Yes. The breaker can protect 240V, 2-wire loads that do not require a load neutral connection. However, you must still land the breaker's factory-installed pigtail neutral on the panelboard neutral bar, as this connection is required to power the internal ground-fault sensing circuitry.
What are the lug torque specifications for the QOB220GFI?

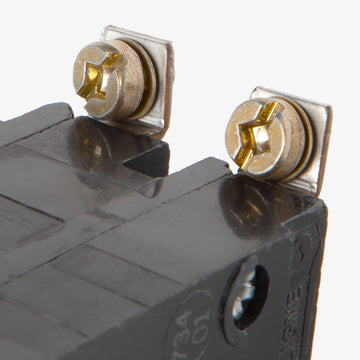

The pressure plate terminals require 35.4 lb-in (4 N.m) of torque when using 14 AWG to 10 AWG wire, and 40.7 lb-in (4.6 N.m) when using 8 AWG wire.
What level of ground-fault protection does the QOB220GFI provide?
This breaker delivers Class A ground-fault protection. The internal sensor continuously compares the current leaving the breaker to the current returning, and will trip the circuit if a ground-fault leakage of 6mA or higher is detected.
How does the Visi-Trip indicator function on the QOB220GFI?
The Visi-Trip mechanism displays a bright red flag in the breaker window when it trips due to a ground fault, overload, or short circuit. The operating handle will also move to a center tripped position, making it easy to identify tripped breakers in a crowded panelboard.
