Square D QOB225-1021 QOB2251021 - 25A 2 Pole Miniature Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
Square D
QOB225-1021
QOB2251021 - 25A 2 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB225-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB2251021 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
QOB2201021 - 20A 2 Pole Miniature Circuit Breaker
QOB220VH1021 - 20A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
Description

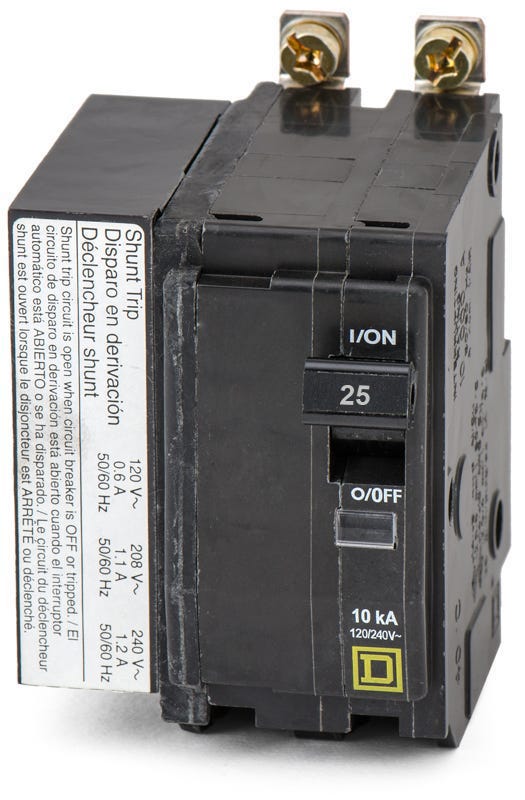

Built for advanced control, the Square D QOB225-1021 is a 2-pole, 25-amp miniature circuit breaker featuring a factory-installed 120/240VAC shunt trip. This allows users to remotely trip the breaker via an external signal for emergency stops. The device utilizes a rugged bolt-on mechanism for secure installation into Square D NQ and NQOD panelboards. Delivering a 10kAIC rating at 120/240VAC, this unit includes the exclusive Visi-Trip indicator for quick fault identification and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB225-1021 |
| Series | QOB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip |
Product FAQs
5 answersCan I install the QOB225-1021 in a standard Square D QO load center?
No. This is a QOB bolt-on breaker designed specifically for NQ and NQOD panelboards. Standard QO load centers require plug-on breakers.
What does the 1021 suffix indicate on the QOB225-1021 breaker?
The 1021 suffix denotes a factory-installed 120/240VAC shunt trip. This accessory allows the breaker to be opened remotely using an external control voltage signal, which is commonly used for emergency stop applications.
How does the QOB225-1021 connect to the panelboard busbar?
It utilizes a bolt-on connection, which is required for NQ and NQOD panelboards. This bolt-on design provides a secure, vibration-resistant mechanical and electrical connection.
How can I visually identify if the QOB225-1021 has tripped?
This breaker features the Square D Visi-Trip indicator. When a fault occurs and the breaker trips, a bright red flag appears in the indicator window, allowing for rapid identification of the tripped circuit in a crowded panelboard.
Is the QOB225-1021 suitable for direct current (DC) circuits?
Yes, in addition to its AC ratings, this thermal magnetic breaker is rated for DC applications up to 48VDC, providing 5kA of interrupting capacity for DC control or power circuits.
