Square D QOB2251021 Miniature Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
Square D
QOB2251021
Miniature Circuit Breaker
Brand
Square D
SKU
QOB2251021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB2251021 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
QOB2201021 - 20A 2 Pole Miniature Circuit Breaker
QOB220VH1021 - 20A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
Description

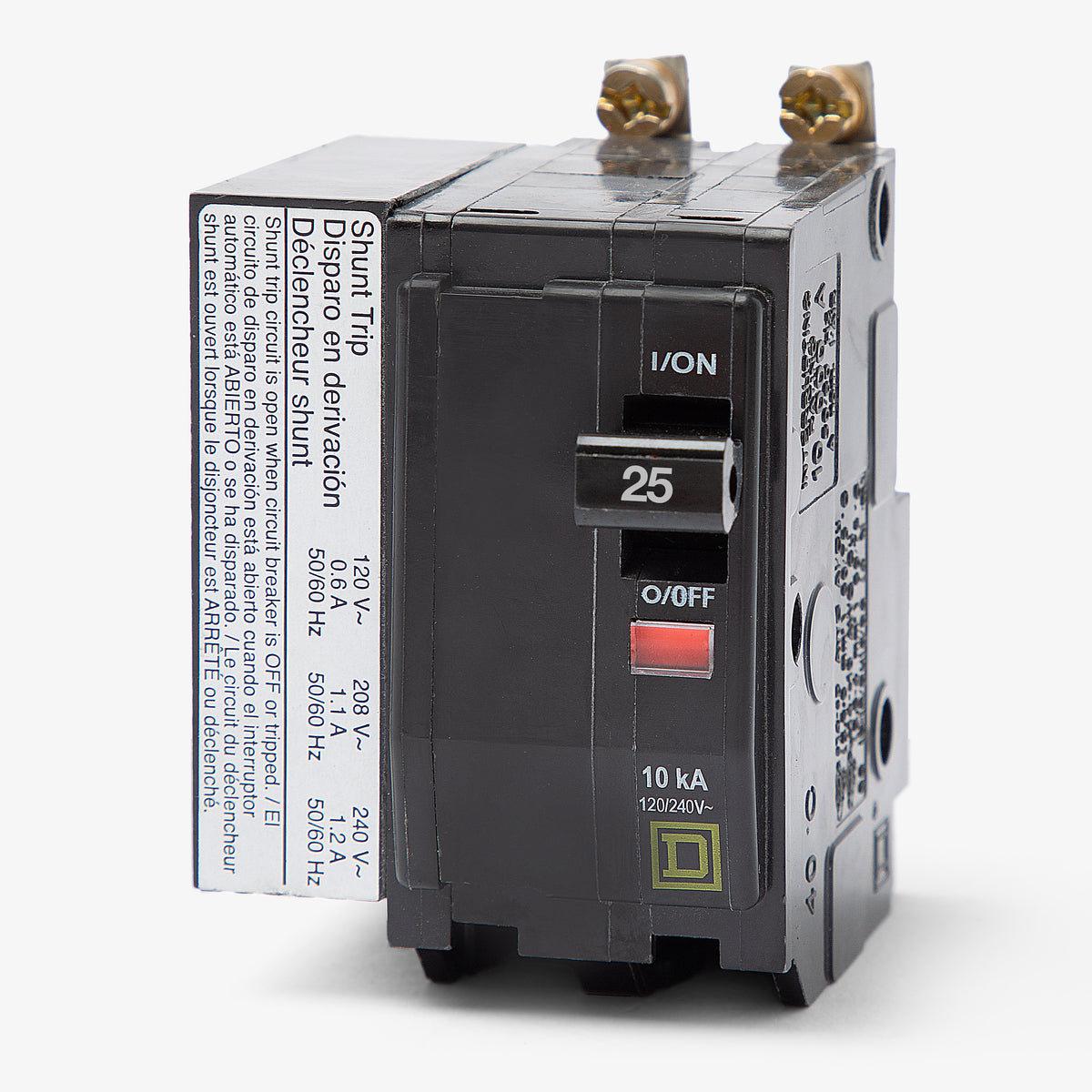

Engineered for commercial electrical systems, the Square D QOB2251021 delivers reliable overcurrent protection. This 25A, two-pole miniature circuit breaker features a thermal-magnetic trip mechanism and a 10kAIC rating at 120/240VAC. This unit installs into Square D NQ and NQOD panelboards. The bolt-on mounting style ensures a secure, vibration-resistant connection to the busbar. A factory-installed shunt trip allows the breaker to be opened remotely.Specifications
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, RoHS Compliant |
Product FAQs
6 answersWhat panelboards are compatible with the QOB2251021 circuit breaker?
This bolt-on miniature circuit breaker is designed for use in Square D NQ and NQOD panelboards.
What does the 1021 suffix mean on this Square D breaker?
The 1021 suffix indicates that the breaker includes a factory-installed 120/208/240VAC shunt trip accessory, which allows the breaker to be tripped remotely.
How many panel spaces does the QOB2251021 require?
Because it is a two-pole breaker with a factory-installed shunt trip accessory, it requires three total panel spaces for installation.
Is the QOB2251021 HACR rated?
Yes, this thermal-magnetic circuit breaker is HACR rated, making it suitable for group motor applications like heating, air conditioning, and refrigeration equipment.
Does this breaker feature a tripped circuit indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips, the handle moves to a center position and a red indicator appears in a window on the case for quick identification.
How does the trip mechanism operate on this two-pole breaker?
It utilizes a common trip, thermal-magnetic mechanism. An overcurrent on either pole will cause both poles to open simultaneously.
