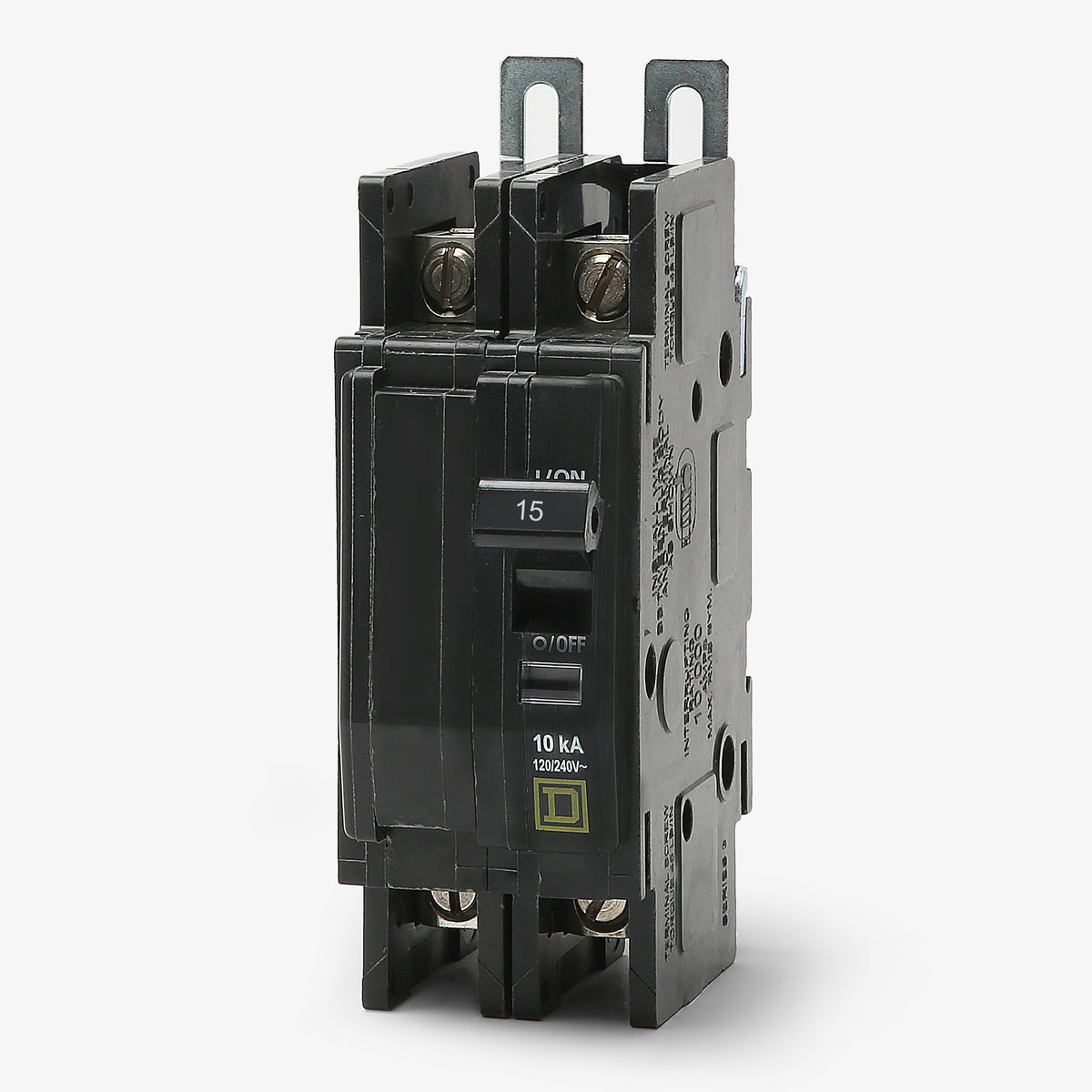

Square D QOU215 Miniature Circuit Breaker
- 15A
- 2 Pole
- Unit Mount
Square D
QOU215
Miniature Circuit Breaker
Brand
Square D
SKU
QOU215
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOU215 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOU215 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU215 |
| Series | QOU |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | OEM Panels, Control Panels, DIN Rail Systems, Enclosures |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated, SWD Rated |
| Approval | CSA, HACR, IEC, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Sold out
Quantity
Square D QOU215 - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU215-R |
| Series | QOU |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | OEM Panels, Control Panels, DIN Rail Systems, Enclosures |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated, SWD Rated |
| Approval | CSA, HACR, IEC, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Similar Items
20A 2 Pole Miniature Circuit Breaker
10A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
Description
Designed to support residential, commercial, and industrial environments, this 15A thermal-magnetic breaker delivers consistent overcurrent defense. It serves as a dependable solution for diverse electrical setups. Installation into custom enclosures, OEM panels, and DIN rail systems remains straightforward thanks to the unit-mount architecture. The integrated box lugs accept 14-2 AWG aluminum or copper conductors. Carrying both HACR and SWD ratings, it safely controls fluorescent lighting.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOU215 |
| Series | QOU |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOU |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | OEM Panels, Control Panels, DIN Rail Systems, Enclosures |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, HACR Rated, SWD Rated |
| Approval | CSA, HACR, IEC, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed |
Product FAQs
7 answersCan the QOU215 be installed on a standard DIN rail?
Yes, the QOU215 can be mounted on a symmetrical 35mm DIN rail. However, you will need to source a separate 2-pole mounting foot accessory, catalog number QOUMF2, to attach the breaker to the rail.
Will the QOU215 fit in a standard Square D QO residential load center?
No, the QOU215 is a unit-mount circuit breaker meant for surface, flush, or DIN rail mounting in custom enclosures, OEM control panels, and industrial machinery. It will not snap into a standard QO or Homeline load center bus bar.
Can the QOU215 be reverse-fed in a control panel?
Yes, this breaker features reversible line and load lugs without restrictive line or load markings. This allows it to be safely back-fed or reverse-fed in OEM enclosures and localized disconnects.
Does the QOU215 carry an HACR rating for HVAC systems?
Yes, the QOU215 is HACR rated, meaning it is certified for overcurrent protection in heating, air conditioning, and refrigeration equipment.
Does the QOU215 feature trip indication?
Yes, this breaker includes the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, the handle snaps to a center position and a high-visibility red indicator appears to easily identify the tripped circuit.
What mounting hardware is required for flush or surface mounting?
The QOU215 features a unit-mount design with integrated mounting feet that allow for direct surface or flush installation without requiring additional brackets. Additional accessories are only necessary if you are mounting it to a DIN rail.
How are conductors terminated on the QOU215?

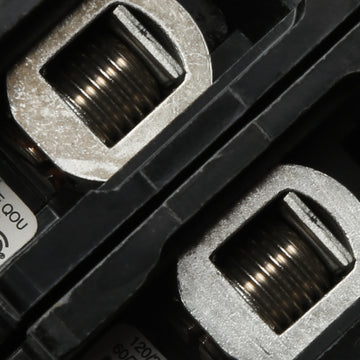

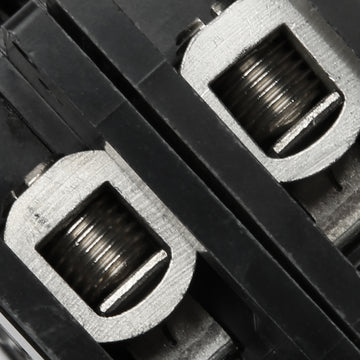

The breaker is equipped with reversible slotted box lugs on both the line and load sides. These high-pressure lugs securely accept 14 to 2 AWG aluminum or copper conductors for flexible point-of-use wiring.
