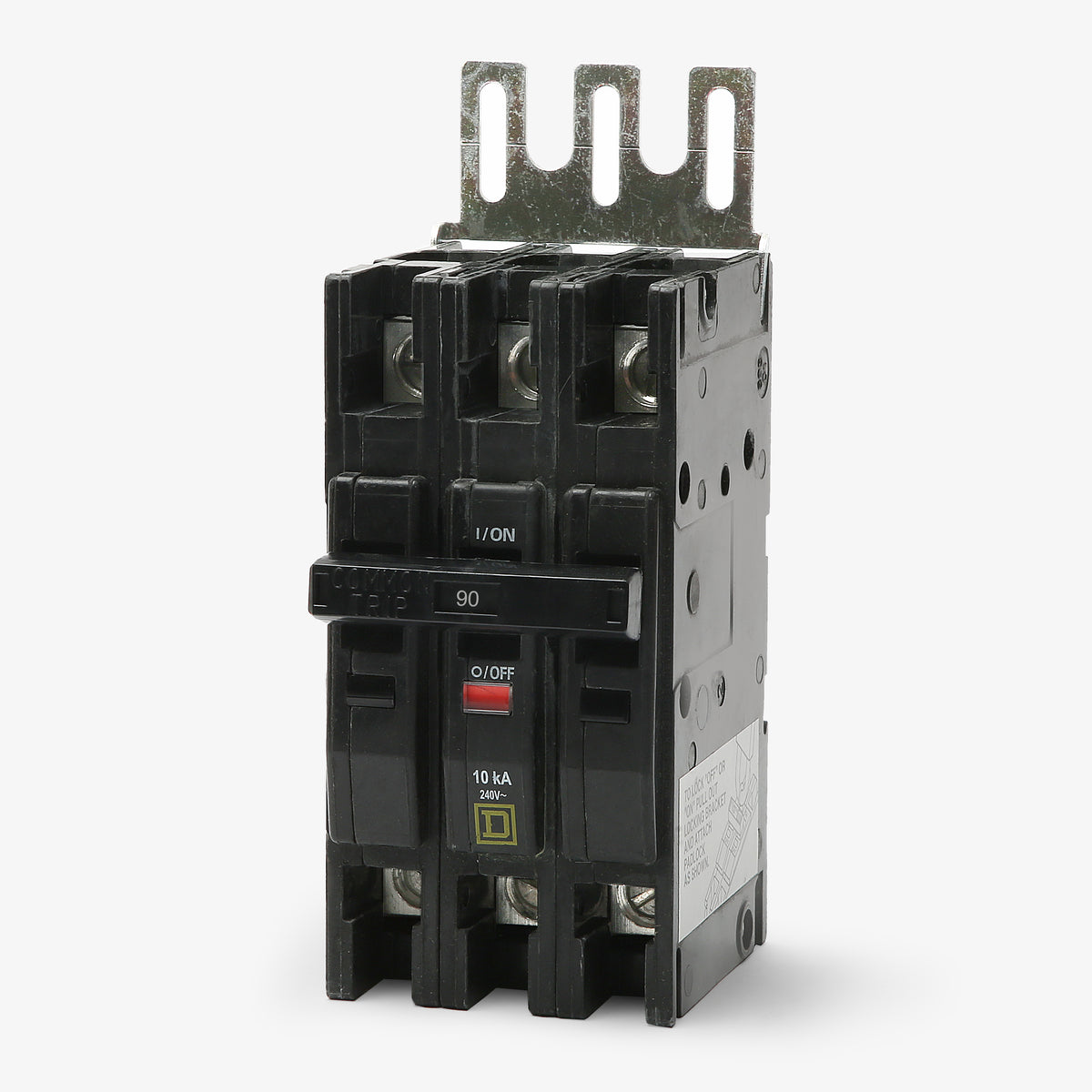

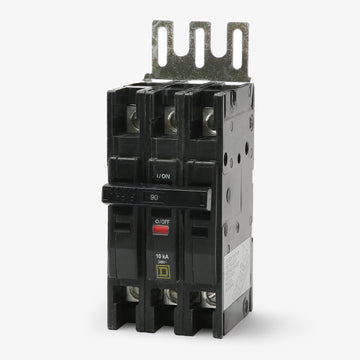

Square D QOU390 Miniature Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
Square D
QOU390
Miniature Circuit Breaker
Brand
Square D
SKU
QOU390
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOU390 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOU390 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU390 |
| Series | QOU |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 60VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 60VDC |

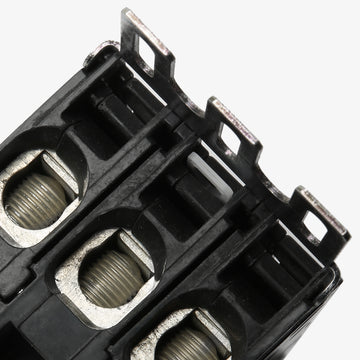

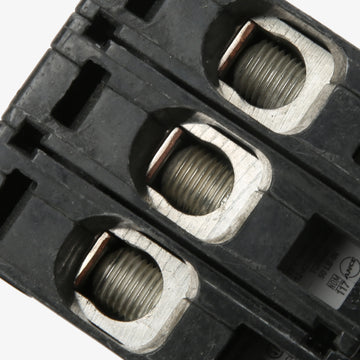

| Terminal Type | Box Lugs |
|---|---|
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 12-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Mounting Feet, Padlock Attachment, Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip |
Sold out
Quantity
Square D QOU390 - 90A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOU390-R |
| Series | QOU |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 60VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 60VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 12-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Mounting Feet, Padlock Attachment, Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip |
Similar Items
80A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
Description
Part of the QOU series, this 90A miniature circuit breaker offers dependable thermal-magnetic trip functions for commercial and industrial loads. It is engineered for versatile installation across various environments. Designed to mount onto DIN rails or flat surfaces within OEM panels, it provides a flexible solution for custom enclosures. The box lug terminals accommodate aluminum or copper wiring from 12 to 2/0 AWG.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOU390 |
| Series | QOU |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 60VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 60VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 12-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Mounting Feet, Padlock Attachment, Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip |
Product FAQs
6 answersCan I install the QOU390 in a standard Square D QO residential load center?
No. While it belongs to the broader QO family, the QOU390 is a unit-mount (cable-in/cable-out) breaker. It lacks the plug-on jaws required for QO load centers and is strictly designed for DIN rails, OEM panels, and individual enclosures.
How do you mount the QOU390 in an OEM control panel?
This breaker can be snapped directly onto a standard 35mm symmetrical DIN rail. It can also be surface-mounted or flush-mounted using compatible Square D QOUMF mounting feet.
Is the QOU390 suitable for protecting HVAC equipment?
Yes. This model is UL Listed as an HACR-type circuit breaker, making it approved for use with heating, air conditioning, and refrigeration motor group applications.
Are the line and load lugs on the QOU390 reversible?
No. Unlike low-amperage QOU breakers which feature reversible lugs, the high-amperage QOU models (80A through 125A) are manufactured with non-reversible line and load lugs.
Does this breaker feature a visual trip indicator?
Yes, it includes Square D Visi-Trip technology. If the breaker trips due to an overload or short circuit, the handle rests in a center position and exposes a highly visible red indicator to easily identify the faulted circuit.
How does the breaker respond to a fault on a single phase?
The QOU390 features an internal common trip mechanism linked to a single handle. If an overcurrent or short circuit occurs on any one phase, all three poles will open simultaneously to completely de-energize the circuit.
