Square D SDT240 Circuit Breaker
Quantity
Core Specs
See full specs
Square D SDT240 2 Pole Circuit Breaker
Re-Certified
Quantity
Quantity
Square D SDT240 2 Pole Circuit Breaker
Re-Certified
Quantity
Quantity
Square D SDT240 2 Pole Circuit Breaker
New
Quantity
Description

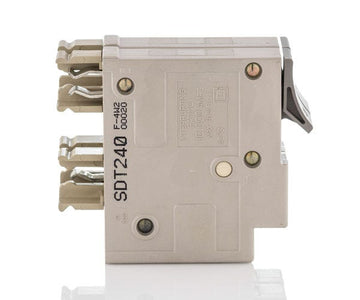

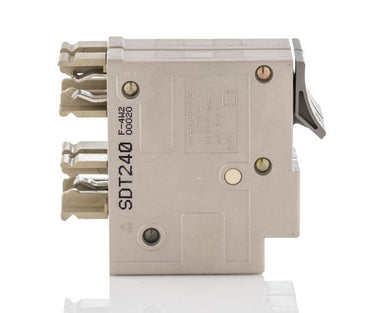

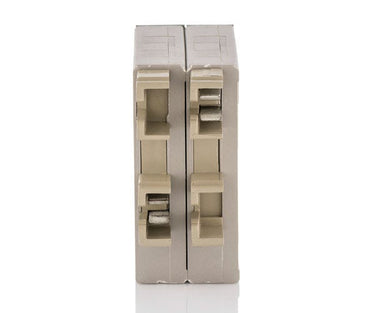

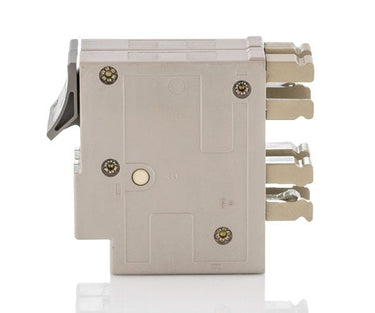

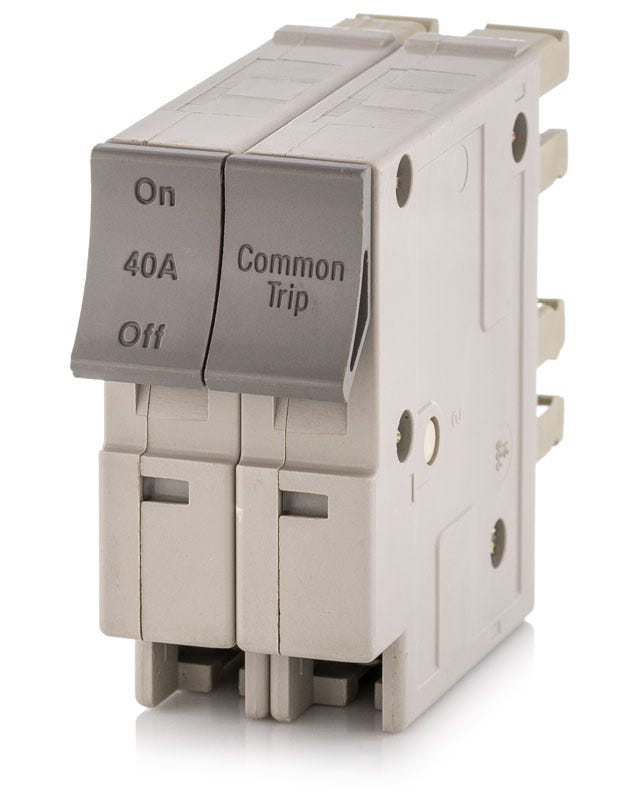

Square D SDT240 2 Pole Circuit Breaker
The Square D SDT240 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240VAC. The SDT240 has a plug-in connection type and includes long time and instantaneous trip functions.
Specifications
Product FAQs
4 answersWhat load centers are compatible with the Square D SDT240?
The SDT240 is designed exclusively for use in legacy Square D Trilliant load centers. It will not fit standard Square D QO or Homeline panels.
Is the Square D Trilliant SDT240 breaker still manufactured?
No, the Square D Trilliant product line and its SDT breakers are obsolete and no longer manufactured by Schneider Electric. Exact replacements are sourced to maintain existing Trilliant enclosures.
Can I substitute a Homeline or QO breaker for the SDT240 in a Trilliant panel?
No. Square D Homeline and QO breakers have different physical dimensions and mounting mechanisms. Only Trilliant SDT series breakers will safely fit and connect to a Trilliant load center busbar.
How can I identify if the SDT240 has tripped?
This breaker features a Visi-Trip indicator flag that provides a clear visual confirmation when the breaker has tripped due to an overload or short circuit, simplifying troubleshooting in the panel.
