Square D VH221N Safety Switch

New

$193.74 No stock

Quantity

Description

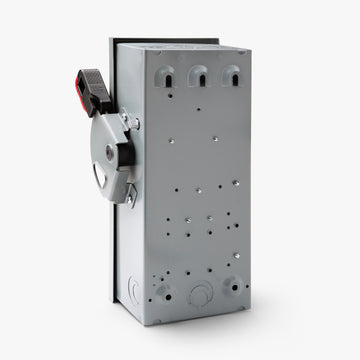

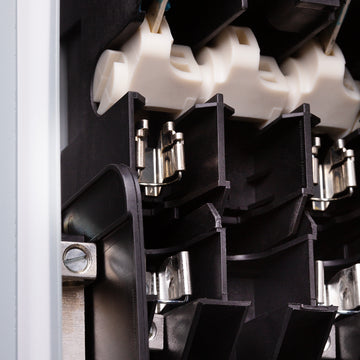

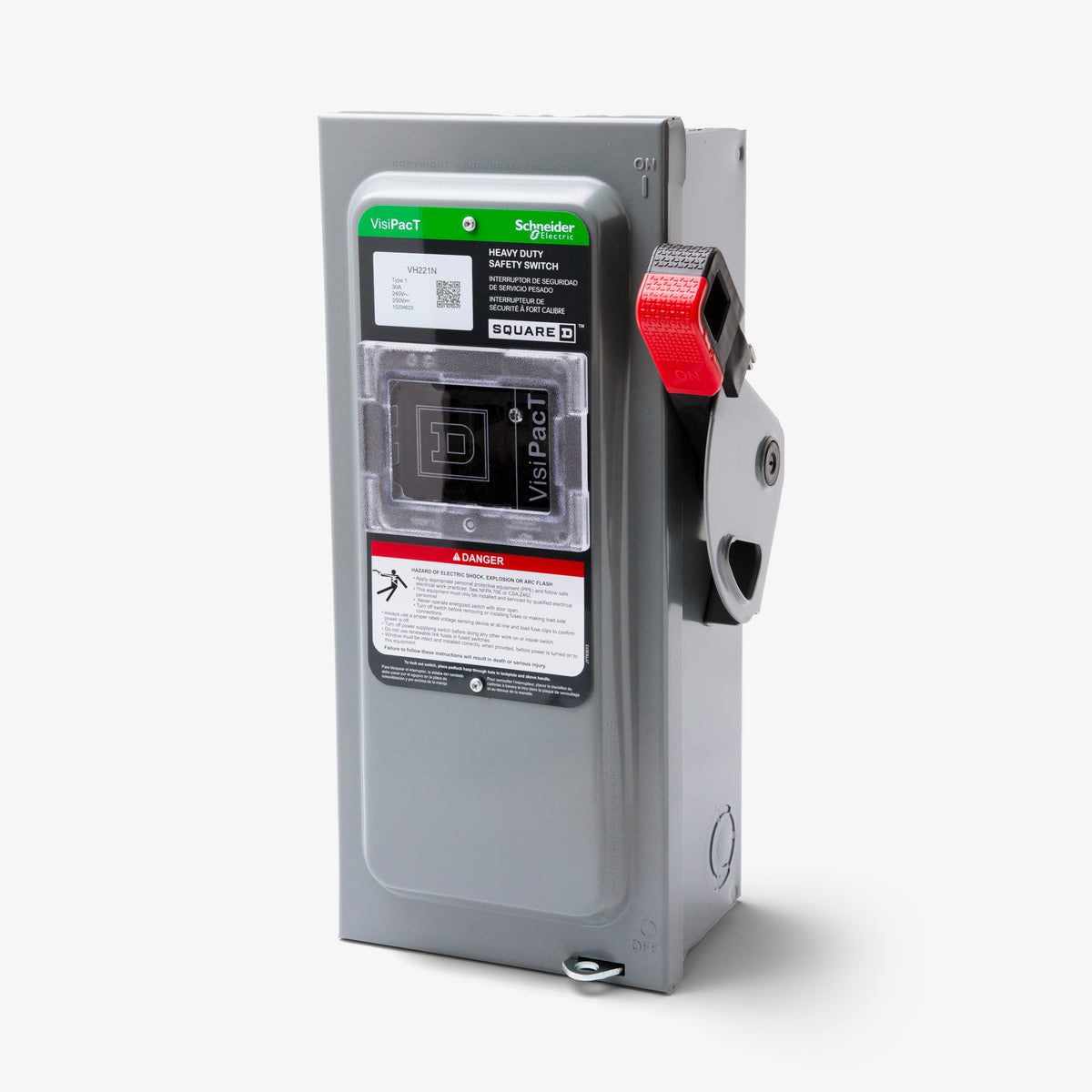

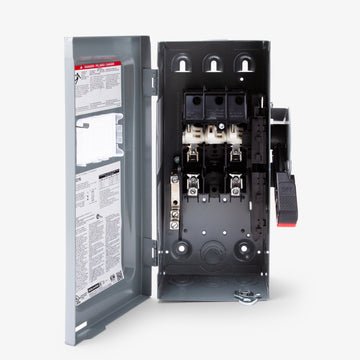

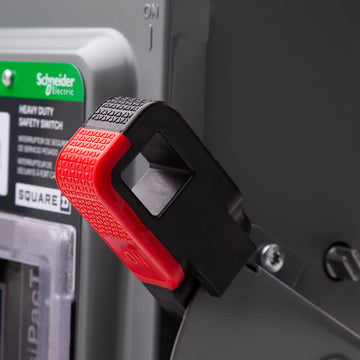

Square D VH221N Safety Switch

The Square D VH221N is a 2 Pole safety switch with a current rating of 30 Amps and a voltage rating of 240VAC, 250VDC. It includes dual cover interlock. The VH221N has a surface mounting type and it is used for service entrance, heavy and indoor applications.

Specifications

Series F
Amperage 30
Voltage 240VAC, 250VDC
Poles 2
Phase 1
Mounting Type Surface
Approval UL
Terminal Connection Lugs
Nema Rating 1
Wire Gauge AWG 12 to AWG 6, AWG 14 to AWG 6, Aluminum/Copper
Standards EU, RoHS
Temperature Rating -30 to 40 °C
Duty Rating Heavy Duty
Fusibility Fusible
Configuration Single
Number Of Wires 3
Enclosure Material Galvanized Steel
Action Single Throw
Contact Configuration DPST
