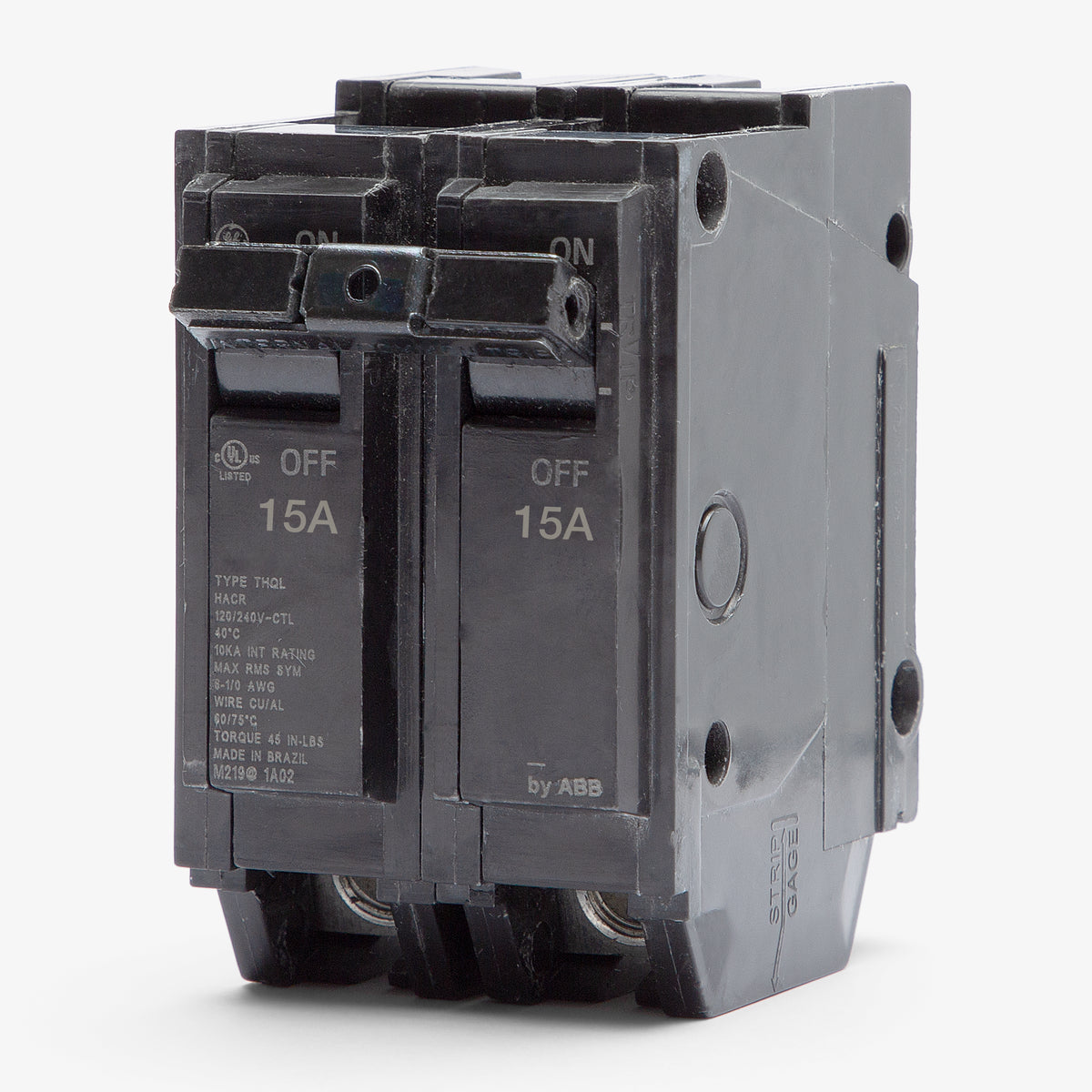

ABB / General Electric THQL2115 Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2115
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2115 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL2115 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2115 |
| Series | THQL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers, AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQL2115 - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2115-R |
| Series | THQL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers, AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQL2120ST1
20A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL2125
25A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL2130
30A 2 Pole Miniature Circuit Breaker
Description
Designed to handle smaller 240V circuits, this 15A Q-Line breaker is ideal for baseboard heaters, well pumps, and dedicated lighting. The unit fits seamlessly into GE PowerMark Gold load centers and AQ lighting panels. Carrying both HACR and SWD ratings, it is approved for use with heating, air conditioning, and fluorescent lighting circuits while maintaining a standard 10kAIC fault current rating.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2115 |
| Series | THQL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers, AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
8 answersWhat load centers are compatible with the THQL2115?
This breaker is designed for use in GE Q-Line, PowerMark Gold, AQ Lighting Panels, and the newer ABB ReliaHome series load centers.
Can I use this breaker in a panel that requires half-size breakers?
No. The THQL2115 is a standard 1-inch per pole breaker, requiring 2 inches of total panel space. If your panel requires 1/2-inch breakers, you will need the THQP series instead.
Is the THQL2115 rated for switching fluorescent lighting?
Yes, this 15-amp breaker carries an SWD (Switching Duty) rating, meaning it is approved for switching fluorescent lighting circuits on a regular basis.
Does this breaker carry an HACR rating?
Yes, the THQL2115 is HACR rated, making it suitable for use with compatible heating, air conditioning, and refrigeration equipment.
How much panel space does the THQL2115 require?
As a 2-pole THQL frame breaker, it requires two standard 1-inch spaces, taking up a total of 2 inches of width in the load center.
How do I know if the THQL2115 has tripped?
GE Q-Line breakers feature an easy-to-spot trip indication. When tripped, the handle moves to a distinct center position between the ON and OFF positions.
Are GE and ABB THQL breakers the same?
Yes. ABB acquired GE Industrial Solutions, so THQL breakers may be branded as either GE or ABB. They share the exact same form factor and are fully interchangeable in compatible panels.
Does the THQL2115 provide GFCI or AFCI protection?
No, this is a standard thermal-magnetic breaker. It does not provide ground-fault (GFCI) or arc-fault (AFCI) protection.
