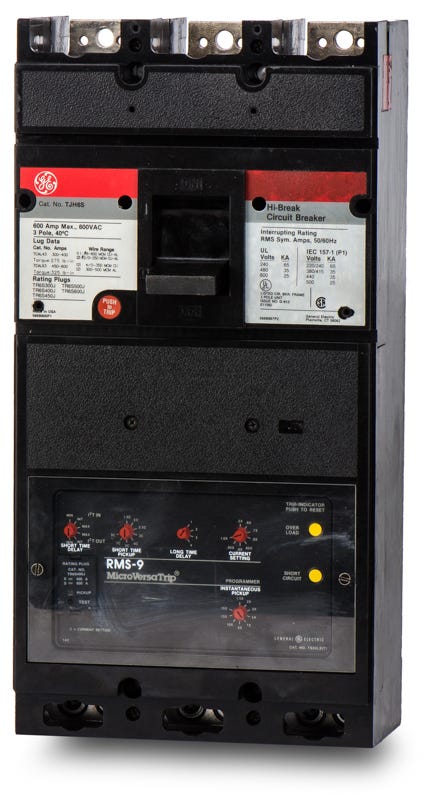

ABB / General Electric TJH6S Molded Case Circuit Breaker
- 600A
- 3 Pole
- Bolt-On
Quantity
ABB / General Electric TJH6S - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Designed to support existing infrastructure, the GE TJH6S is a 3-pole, 600A electronic trip circuit breaker frame. It is built for commercial environments, requiring a compatible MicroVersaTrip unit and rating plug to function. This bolt-on MCCB is engineered for use with GE A-Series panelboards, Spectra Series switchboards, and standard J-Frame enclosures. Delivering a 65kAIC interrupting rating at 240VAC, this breaker frame offers high-capacity protection and solid-state sensing precision.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJH6S-R |
| Series | TJH |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Switchboards, GE J-Frame Enclosures |
| Wire Gauge | Requires TCAL63 Lugs: (2) 250-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Electronic Trip |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lugs, Trip Unit, Rating Plug |
|---|---|
| Accessories | Lugs (TCAL63), Rating Plug, Trip Unit |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Frame Only |
Product FAQs
6 answersWhat enclosures and panelboards are compatible with the TJH6S breaker?
The TJH6S is a J-Frame breaker engineered for compatibility with GE A-Series Panelboards, GE Spectra Series Switchboards, and standard GE J-Frame enclosures.
Is the trip unit included with the TJH6S breaker?
No, the TJH6S is sold as a frame-only component. It requires a separately sourced electronic trip unit, such as a MicroVersaTrip, along with a corresponding rating plug to provide circuit protection.
What type of lugs are required for terminating the TJH6S?
This breaker frame requires TCAL63 lugs for termination. These lugs accommodate two 250 to 500 kcmil copper or aluminum (Cu/Al) conductors per phase. Lugs are not included with the frame.
What frame size and family does the TJH6S belong to?
The TJH6S is a 600A frame that belongs to the legacy GE J600 line of molded case circuit breakers, commonly referred to as J-Frames.
Does the TJH6S provide thermal-magnetic or electronic protection?
The TJH6S utilizes solid-state electronic trip technology. However, because it is a frame-only unit, the specific protection functions depend on the external trip unit installed.
How does the TJH6S mount into a panelboard?
The TJH6S features a bolt-on mounting style, designed to securely bolt directly to the busbars of compatible GE A-Series and Spectra Series equipment.
