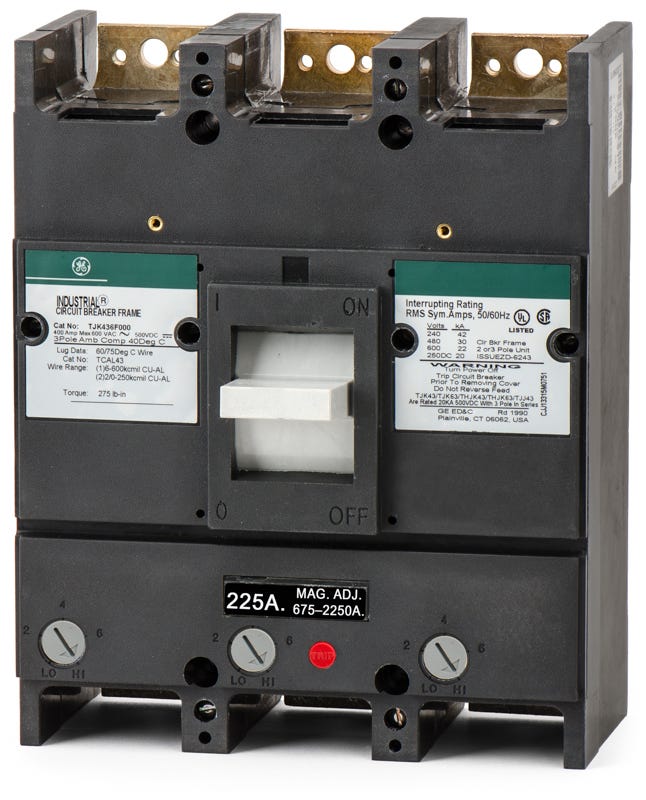

ABB / General Electric TJK436225WL Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
ABB / General Electric
TJK436225WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJK436225WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJK436225WL - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TJK436225WL - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK436225WL |
| Series | TJK |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | TJK |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TCAL43) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Quantity
ABB / General Electric TJK436225WL - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK436225WL-R |
| Series | TJK |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | TJK |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TCAL43) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Similar Items
ABB / General ElectricTJK636250WL
250A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK436200WL
200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK436300WL
300A 3 Pole Molded Case Circuit Breaker
Description
Providing heavy-duty LI protection, the GE TJK436225WL is a 3-pole, 225A molded case circuit breaker. It utilizes an interchangeable thermal-magnetic trip unit to safeguard commercial electrical systems. Unlike standard bolt-on models, this unit mount breaker is designed for standalone enclosures, switchboards, and motor control centers. The breaker delivers a solid 30 kAIC interrupt rating at 480VAC. It comes equipped with TCAL43 line and load lugs for immediate wire termination.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK436225WL |
| Series | TJK |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | TJK |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TCAL43) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
6 answersWhat does the WL suffix in the TJK436225WL catalog number indicate?
The WL suffix designates that the circuit breaker is supplied from the factory with both line and load side lugs installed, making it ready for immediate wire termination.
Are the trip settings on the TJK436225WL adjustable?
Yes, the thermal-magnetic trip unit features an adjustable magnetic trip function. This allows you to modify the instantaneous short-circuit response, while the thermal overload protection remains fixed.
Can the TJK436225WL be installed in a reverse feed configuration?
No. GE J600 line breakers with interchangeable trip units, including the TJK and THJK frames, are not suitable for reverse feed applications. Power must be supplied to the designated line terminals.
Is this breaker compatible with direct current (DC) systems?
Yes, this model is rated for DC applications. It provides a 20kA interrupting capacity at both 250VDC and 500VDC.
How does the TJK frame compare to the THJK frame?
Both frames belong to the GE J600 line and share the exact same physical dimensions and mounting footprint. The primary difference is that the THJK series offers a higher interrupting capacity (AIC) than the standard TJK series.
What are the dual-wire capabilities of the included lugs?
The standard lugs on this breaker can accommodate either a single conductor ranging from 6 AWG to 600 kcmil, or two separate conductors ranging from 2/0 AWG to 250 kcmil per phase. Both copper and aluminum wires are supported.
