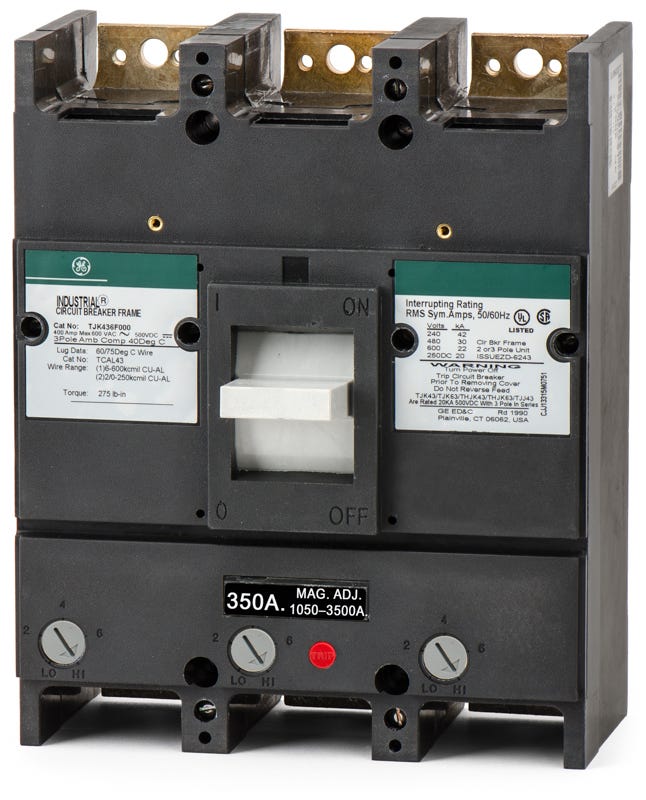

ABB / General Electric TJK436350WL Molded Case Circuit Breaker
- 350A
- 3 Pole
- Unit Mount
ABB / General Electric
TJK436350WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJK436350WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJK436350WL - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TJK436350WL - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK436350WL |
| Series | TJK |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil (Single) or 250 kcmil (Double) |
| Min Wire | 6 AWG (Single) or 2/0 AWG (Double) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Sold Separately) |
| Standards | UL 489, NEMA AB-1, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Sold out
Quantity
ABB / General Electric TJK436350WL - 350A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK436350WL-R |
| Series | TJK |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil (Single) or 250 kcmil (Double) |
| Min Wire | 6 AWG (Single) or 2/0 AWG (Double) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Sold Separately) |
| Standards | UL 489, NEMA AB-1, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Similar Items
ABB / General ElectricTJK436400WL
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK636400WL
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK436400
400A 3 Pole Molded Case Circuit Breaker
Description
Providing versatile overcurrent defense, the GE TJK436350WL is a 3-pole, 350A unit-mount circuit breaker. It features an interchangeable thermal-magnetic trip unit with adjustable magnetic settings, delivering precise long-time and instantaneous protection. This model is supplied without lugs (WL suffix), allowing for customized terminal configurations in enclosures, switchboards, and motor control centers. It is HACR rated and supports reverse feed applications. It delivers 30kAIC at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK436350WL |
| Series | TJK |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 6 AWG-600 kcmil (Cu/Al) or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil (Single) or 250 kcmil (Double) |
| Min Wire | 6 AWG (Single) or 2/0 AWG (Double) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Sold Separately) |
| Standards | UL 489, NEMA AB-1, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
7 answersWhy is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, J600 line breakers like the TJK436350WL may feature ABB branding, GE branding, or a combination of both. The physical breaker and its specifications remain identical regardless of the label.
What does the WL suffix indicate on the TJK436350WL catalog number?
The WL suffix indicates that the circuit breaker includes factory-installed copper/aluminum wire lugs on both the line and load sides.
Can I terminate two conductors per phase on the included lugs?
Yes. The factory lugs accept either a single conductor from 6 AWG to 600 kcmil or dual conductors from 2/0 AWG to 250 kcmil per phase.
Is the TJK436350WL rated for use in direct current systems?
Yes, this breaker is rated for DC applications. It provides an interrupting capacity of 20kA at both 250VDC and 500VDC.
Can this breaker be installed in a plug-in panelboard?
No. The TJK436350WL is a unit mount breaker designed to be bolted directly into enclosures, switchboards, and motor control centers.
What does the LI trip function code mean for this breaker?
The LI designation indicates that the thermal magnetic trip unit provides Long-Time (L) overload protection via a fixed thermal element, and Instantaneous (I) short-circuit protection via an adjustable magnetic element.
What frame family does the TJK436350WL belong to?
It is part of the legacy GE J600 line, specifically utilizing the TJK molded case frame.
