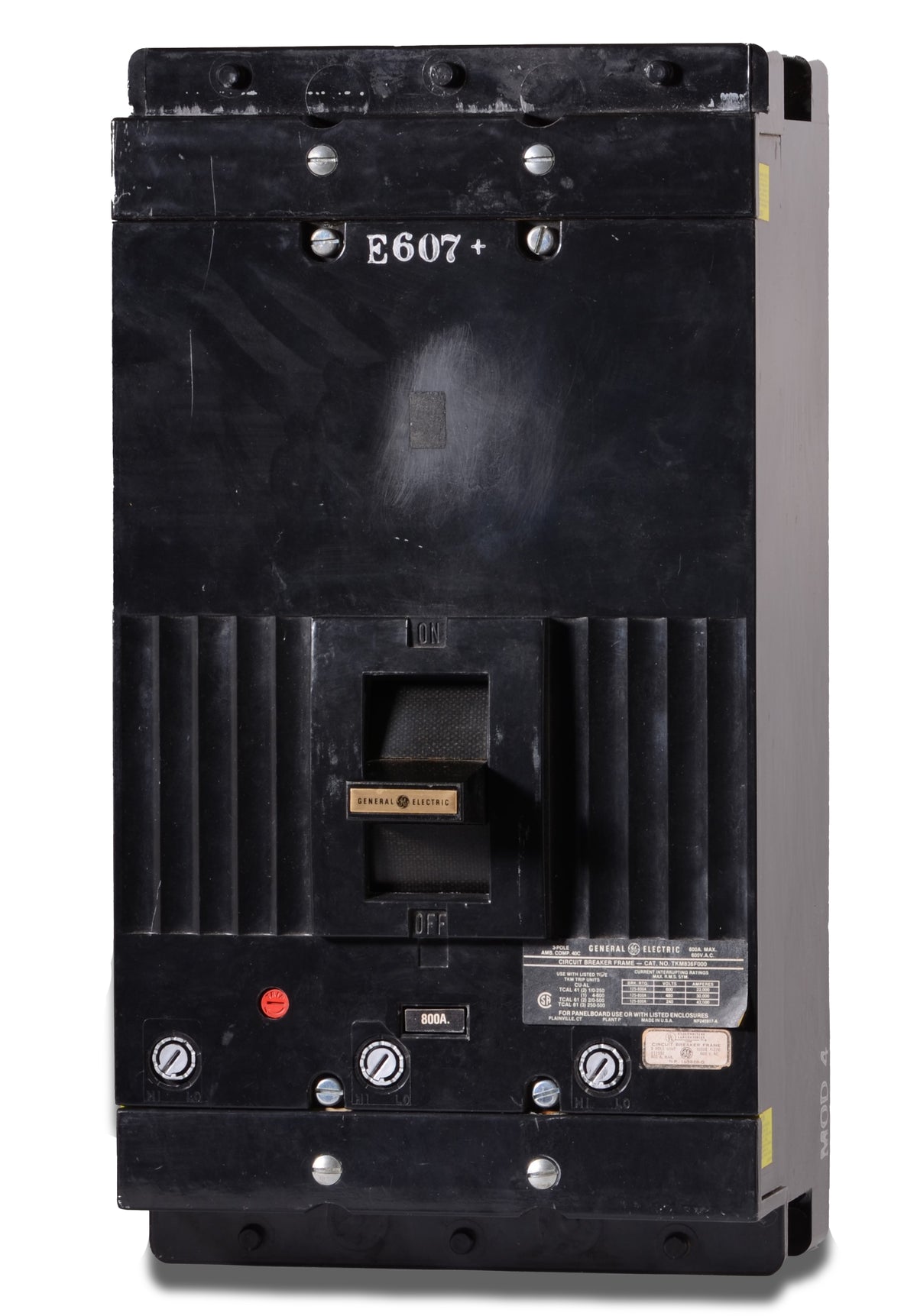

ABB / General Electric TKMA836800WL Molded Case Circuit Breaker
- 800A
- 3 Pole
- Unit Mount
ABB / General Electric
TKMA836800WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TKMA836800WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TKMA836800WL - 800A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TKMA836800WL - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TKMA836800WL |
| Series | TKMA |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Line & Load Lugs (TCAL81) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated |
Quantity
ABB / General Electric TKMA836800WL - 800A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TKMA836800WL-R |
| Series | TKMA |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Line & Load Lugs (TCAL81) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated |
Similar Items
ABB / General ElectricTKMA836500WL
500A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTKMA836450WL
450A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHKMA836800
800A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial environments, the GE TKMA836800WL is a 3-pole, 800A molded case circuit breaker. This unit mount MCCB installs into compatible GE switchboards, motor control centers, and enclosures. For modern upgrades, this legacy K-Frame breaker can be retrofitted with the Tmax XT6 series. Equipped with an interchangeable thermal-magnetic trip unit, it delivers long-time and instantaneous (LI) protection. It features an adjustable magnetic trip and a 42kA rating at 240VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TKMA836800WL-R |
| Series | TKMA |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Line & Load Lugs (TCAL81) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated |
Product FAQs
5 answersWhat does the "WL" suffix indicate on the TKMA836800WL catalog number?
The "WL" suffix signifies that the circuit breaker is shipped from the factory with both line and load mechanical lugs installed. Without this suffix, the breaker is supplied as a bare frame with a trip unit, requiring separate lug kits.
What panel types are compatible with this GE K-Frame breaker?
As a unit-mount, feed-thru breaker, it bolts directly to the backpan of compatible GE switchboards, motor control centers, and standalone industrial enclosures. It does not plug onto a busbar and is incompatible with plug-in style panelboards like GE Spectra.
How is the trip unit adjusted on this thermal-magnetic breaker?
The long-time thermal overload protection is fixed at the 800A rating and cannot be changed. However, the instantaneous magnetic short-circuit pickup is field-adjustable using the tuning dial located on the face of the trip unit.
Can the factory lugs accommodate aluminum conductors?
Yes, the mechanical lugs included with the "WL" configuration are dual-rated for both copper and aluminum wire. Each phase lug accepts three parallel conductors, sized from 3/0 AWG to 500 kcmil.
Is it safe to adjust the magnetic trip dial while the breaker is energized?
No. To comply with NFPA 70E and standard safety practices, you must fully de-energize the panel and verify the absence of voltage before opening the enclosure to adjust the trip unit dials or service terminations.
