General Electric TQD32200ST1 Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Quantity
General Electric TQD32200ST1 3 Pole Circuit Breaker
Re-Certified
Quantity
Quantity
General Electric TQD32200ST1 3 Pole Circuit Breaker
New
Quantity
| Brand | General Electric |
|---|---|
| Part Number | TQD32200ST1 |
| Series | TQD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | TQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 MCM |
| Max Wire | 300 MCM |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included (TCAL25), Shunt Trip (Factory Installed) |
| Approval | CSA, UL |
| Temp Rating | 40 °C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Quantity
General Electric TQD32200ST1 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | General Electric |
|---|---|
| Series | TQD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | TQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 MCM |
| Max Wire | 300 MCM |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included (TCAL25), Shunt Trip (Factory Installed) |
| Approval | CSA, UL |
| Temp Rating | 40 °C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Description

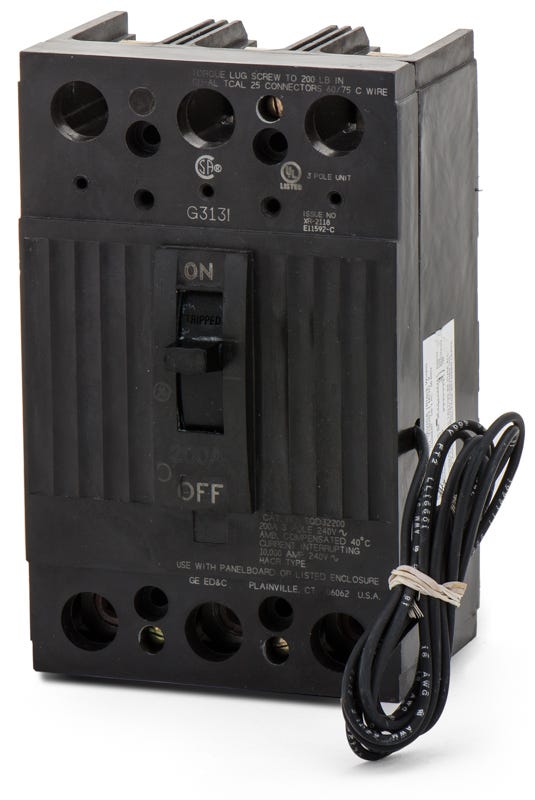

General Electric TQD32200ST1 3 Pole Circuit Breaker
The General Electric TQD32200ST1 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240VAC. The TQD32200ST1 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | General Electric |
|---|---|
| Series | TQD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | TQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 MCM |
| Max Wire | 300 MCM |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included (TCAL25), Shunt Trip (Factory Installed) |
| Approval | CSA, UL |
| Temp Rating | 40 °C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWill this breaker arrive branded as GE or ABB?
ABB completed its acquisition of GE Industrial Solutions in 2018. Depending on the manufacturing date, TQD32200ST1 breakers may feature either GE or ABB branding on the label. The product remains identical in form, fit, and function regardless of the brand name.
What does the ST1 suffix indicate on this circuit breaker?
The ST1 suffix means the breaker includes a factory-installed 120VAC shunt trip mechanism. This allows the breaker to be tripped remotely by an external control signal, which is commonly used for emergency safety shutdowns or automated facility management systems.
What panelboards are compatible with the TQD32200ST1?
This bolt-on Q-Line breaker is engineered specifically for installation in GE A-Series panelboards, GE Spectra Series panelboards, and dedicated GE TQD enclosures.
What wire sizes and materials are accepted by the load side lugs?
The load lugs on this breaker are rated for both copper and aluminum conductors. They will accept wire sizes ranging from 4 AWG up to 300 kcmil.
Is the TQD32200ST1 rated for Heating, Air Conditioning, and Refrigeration (HACR) loads?
Yes, this molded case circuit breaker carries an HACR load rating, making it suitable for protecting commercial and industrial HVAC equipment.
What is the safe operating ambient temperature range for this breaker?
This thermal magnetic circuit breaker is rated to operate safely in ambient environments ranging from -13 degrees to 158 degrees Fahrenheit (-25 degrees to 70 degrees Celsius).
Does this breaker plug onto the panel bus?
No. The TQD32200ST1 utilizes a bolt-on connection type. It must be mechanically bolted directly to the panelboard busbars and is not compatible with plug-on residential load centers.
Can I field-adjust the trip settings on this unit?
No. The TQD32200ST1 features fixed thermal and fixed magnetic trip elements. The Long-Time and Instantaneous (LI) trip curves are set at the factory and cannot be field-adjusted by the installer.
