ABB / General Electric TXQB1120 Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Quantity

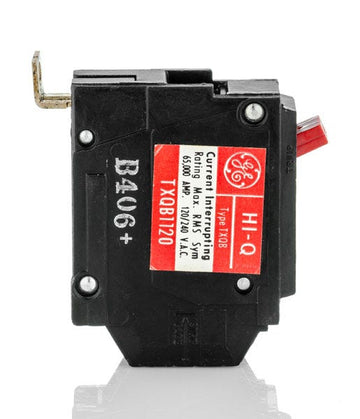

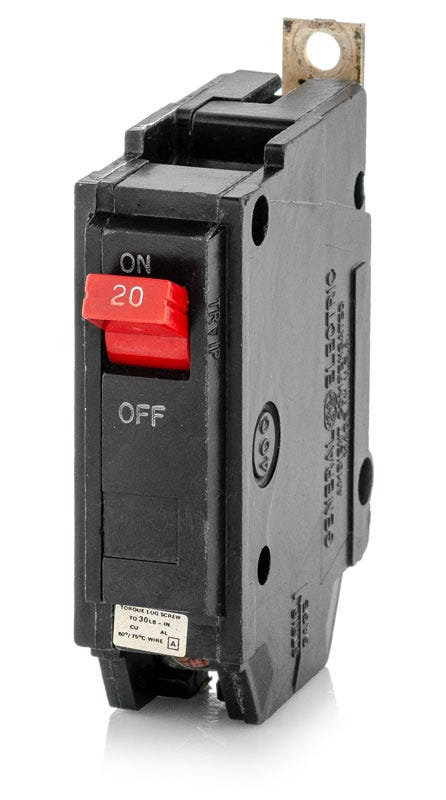

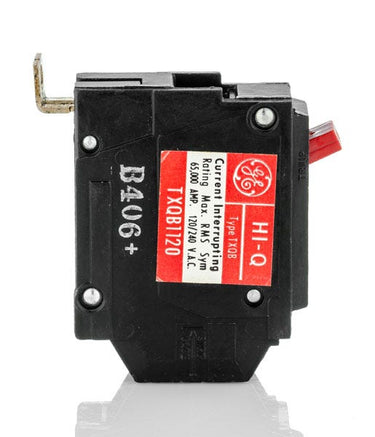

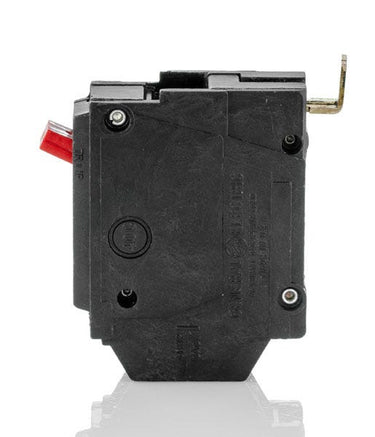

ABB / General Electric TXQB1120 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Description
Engineered for high-fault environments, the GE TXQB1120 is a 20A, single-pole miniature circuit breaker. It provides robust protection for commercial branch circuits. This Q-Line breaker features a bolt-on connection designed for GE A-Series panelboards and AQ lighting panels. The secure mounting ensures reliable performance in demanding systems. With a high interrupting capacity of 65kAIC at 120/240VAC, it safely handles elevated fault currents. The unit is both HACR and SWD rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TXQB1120 |
| Series | TXQB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 120/240VAC |
| Frame Type | TXQB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, SWD, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
5 answersWhich panelboards accept the TXQB1120 circuit breaker?
This breaker is compatible with GE A-Series panelboards and GE AQ lighting panels. It requires a busbar designed for bolt-on Q-Line breakers.
Will the TXQB1120 fit in a standard GE residential load center?
No. This is a bolt-on breaker designed for commercial panelboards. Standard GE residential load centers require plug-on breakers, such as the THQL series.
Can the TXQB1120 replace a THQB1120 or THHQB1120?
Yes. The TXQB1120 shares the exact same physical dimensions and bolt-on mounting as the THQB1120 and THHQB1120. It serves as a direct replacement while providing a significantly higher interrupting rating of 65kAIC.
Why would I need the 65kAIC rating of the TXQB1120?
The 65kAIC rating allows the breaker to safely clear up to 65,000 amps of fault current. This high interrupting capacity is often required in commercial, industrial, or high-density environments where the available fault current exceeds the limits of standard 10kAIC or 22kAIC breakers.
Is the TXQB1120 rated for use with HVAC equipment and fluorescent lighting?
Yes. This breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment. It is also SWD rated, meaning it can be used to safely switch 120V fluorescent lighting loads on and off.
