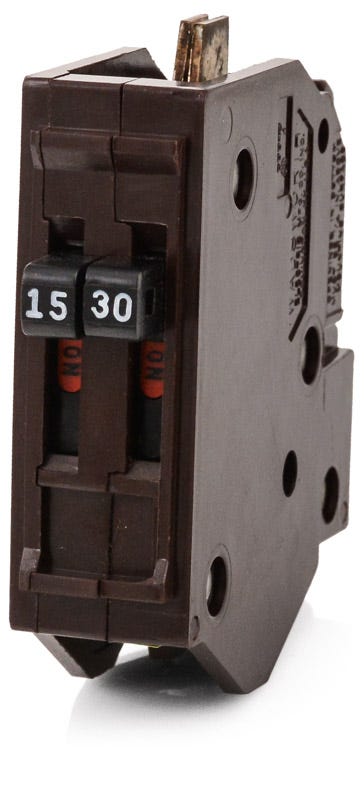

Wadsworth B1530NI 15/30A Tandem Miniature Circuit Breaker
- 15/30A
- 1 Pole
- Plug-On
Quantity
Wadsworth B1530NI - 15/30A Tandem Miniature Circuit Breaker
New
Quantity
Description
Engineered for residential applications, this 15/30A tandem unit provides two independent circuits within a single-pole footprint. It is specifically designed to fit into older Wadsworth load centers, ensuring safe power distribution. This original legacy component is commonly replaced by the UBIA1530NI. This Class CTL non-interchangeable breaker features thermal-magnetic trip technology and a standard 10kAIC rating for reliable protection.Specifications
| Brand | Wadsworth |
|---|---|
| Part Number | B1530NI |
| Series | B |
| Amperage | 15/30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | A-NI |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Wadsworth Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | Tandem |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Class CTL, Twin/Tandem |
Product FAQs
5 answersWhat panels accept the Wadsworth B1530NI tandem breaker?
This tandem breaker is designed exclusively for legacy Wadsworth load centers that accept Class CTL non-interchangeable breakers. It will not fit panels from other manufacturers.
Is there a modern replacement for the Wadsworth B1530NI?
Yes, the UBIA1530NI is the direct aftermarket replacement for this legacy Wadsworth tandem breaker.
Can I install this tandem breaker in any slot within my Wadsworth panel?
No. Because it is a Class CTL breaker, it must be installed in panel slots specifically notched to accept tandem breakers. This prevents overloading the physical capacity of the panel.
What does the A-NI frame designation mean for this breaker?
The A-NI frame indicates that this is a non-interchangeable breaker. The thermal magnetic trip unit is fixed and cannot be swapped out or adjusted in the field.
How does a tandem breaker like the B1530NI function?
A tandem breaker provides two independent circuits in the physical space of a single-pole breaker. For the B1530NI, this includes one 15-amp circuit and one 30-amp circuit within a single panel slot.
