Eaton / Westinghouse E1040 Molded Case Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
Eaton / Westinghouse
E1040
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
E1040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

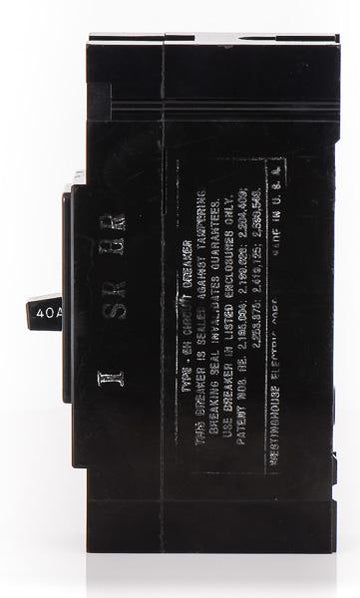

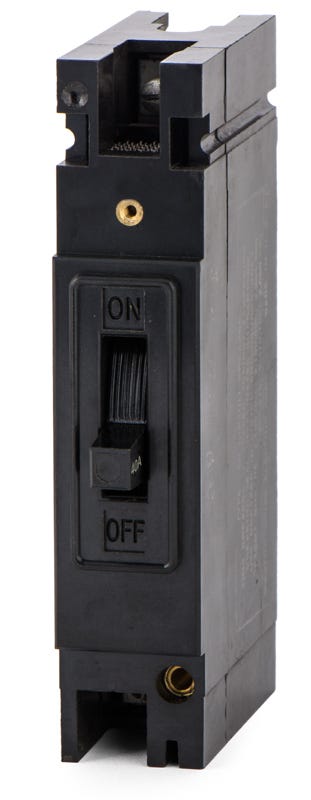

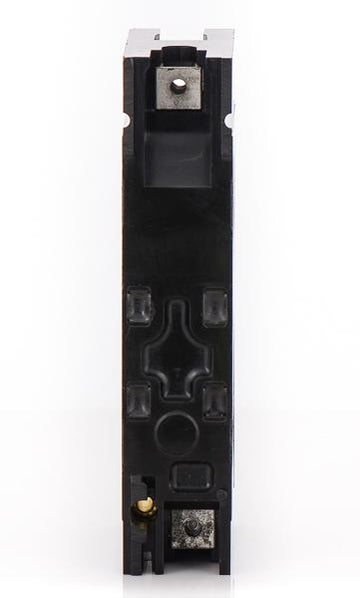

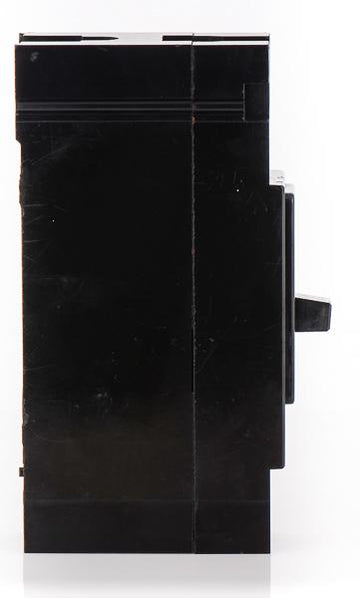

Eaton / Westinghouse E1040 - 40A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
15A 1 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
A dependable solution for commercial power management, this 40-amp single-pole breaker provides essential overcurrent protection. It mounts into standard Eaton and legacy Westinghouse panelboards, offering an exact fit for older E-Frame installations. With a 7kAIC rating at 120VAC and support for 125VDC applications, this bolt-on MCCB ensures safe operation. It features fixed thermal-magnetic trip functions and shares cross-reference compatibility with EHD1040 and EB1040 models.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | E1040-R |
| Series | E |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 7kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | E |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards, Eaton Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards accept the E1040 circuit breaker?
This bolt-on breaker mounts directly into legacy Westinghouse and standard Eaton panelboards configured for E-Frame installations.
Are there alternative catalog numbers that replace the E1040?
Yes, the EHD1040 and EB1040 are direct cross-reference replacements. They share the same 1-pole, 40-amp E-Frame profile and bolt-on mounting configuration.
What wire sizes are supported by the E1040 terminals?
The breaker includes lugs that accommodate 14 AWG through 1/0 AWG conductors. The terminals are rated for both copper and aluminum wiring.
Is the E1040 suitable for DC voltage systems?
Yes, this breaker supports 125VDC applications with a 5kAIC interrupting rating, making it suitable for specific direct current control and power circuits.
Does the E1040 offer adjustable trip settings?
No, this breaker features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) functions.
