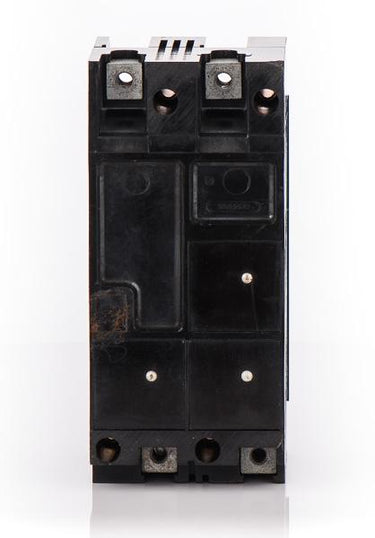

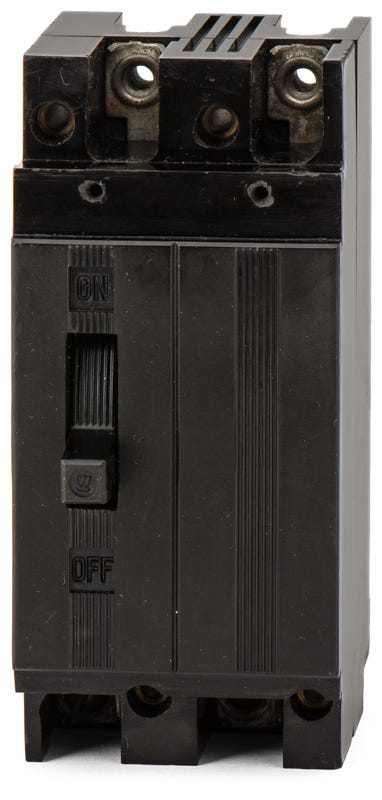

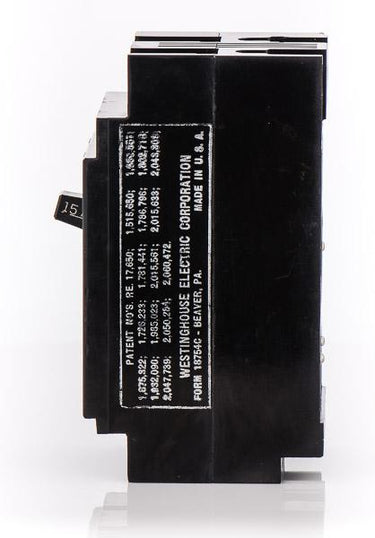

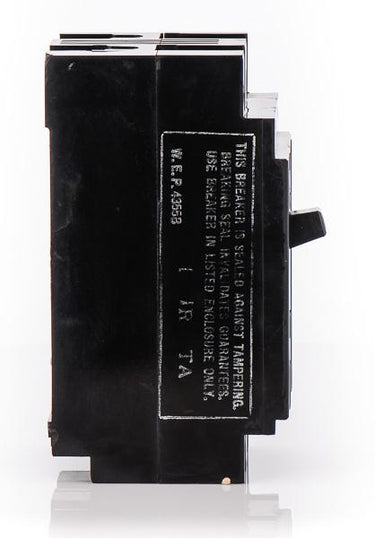

Eaton / Westinghouse E2015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Eaton / Westinghouse
E2015
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
E2015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse E2015 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for older commercial systems, the E2015 restores power without requiring panel upgrades. This 15-amp, two-pole molded case circuit breaker is engineered for legacy Westinghouse and Eaton panelboards. It installs securely via a bolt-on connection, ensuring a stable fit in existing AB De-Ion and Pow-R-Line enclosures. It is cross-referenced with the EHD2015 substitute. Rated for 7 kAIC at 240VAC, this E-frame breaker features fixed thermal-magnetic trip units.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | E2015-R |
| Series | E |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 7kA @ 240VAC, 5kA @ 125/250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards, Eaton Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the E2015 circuit breaker?
The E2015 is engineered for legacy Westinghouse and Eaton panelboards. It serves as a direct drop-in replacement for older commercial systems, restoring power without requiring a full panel upgrade.
What is the modern cross-reference for the legacy E2015 breaker?
The newer EHD2015 is the standard cross-reference substitute. However, utilizing the exact E2015 replacement avoids the complexity of adapting the newer EHD model to older enclosures.
How does the E2015 breaker mount into the panelboard?
This breaker installs securely using a standard bolt-on connection, ensuring a stable and reliable fit in existing AB De-Ion and Pow-R-Line enclosures.
What wire sizes are accepted by the E2015 lugs?
The terminal lugs accommodate 14 AWG to 1/0 AWG wire sizes and are rated for both copper and aluminum conductors. Ensure proper torque specifications are followed during installation to prevent terminal failure.
What type of trip unit is equipped on the E2015?
It features a fixed thermal-magnetic trip unit, providing both long-time (thermal) overload protection and instantaneous (magnetic) short-circuit protection. The trip settings are factory fixed and cannot be adjusted in the field.
Can the E2015 be used in DC applications?
Yes, in addition to its standard AC ratings, this breaker is rated for 125/250VDC systems with an interrupting capacity of 5kAIC, making it suitable for specific direct current control circuits or legacy DC applications.
