Eaton / Westinghouse E3035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
E3035
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
E3035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

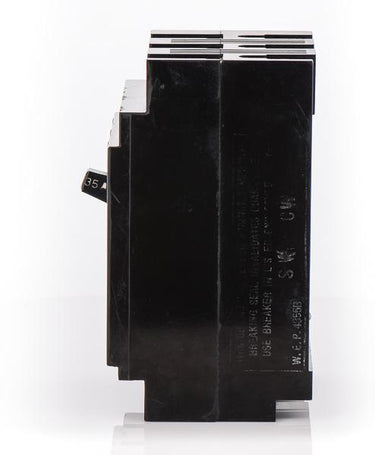

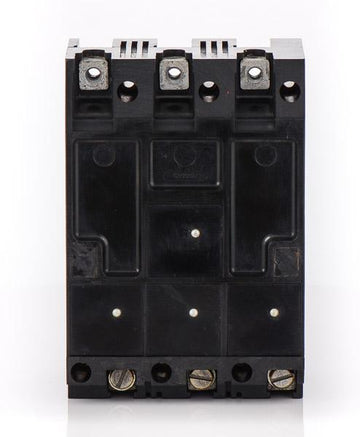

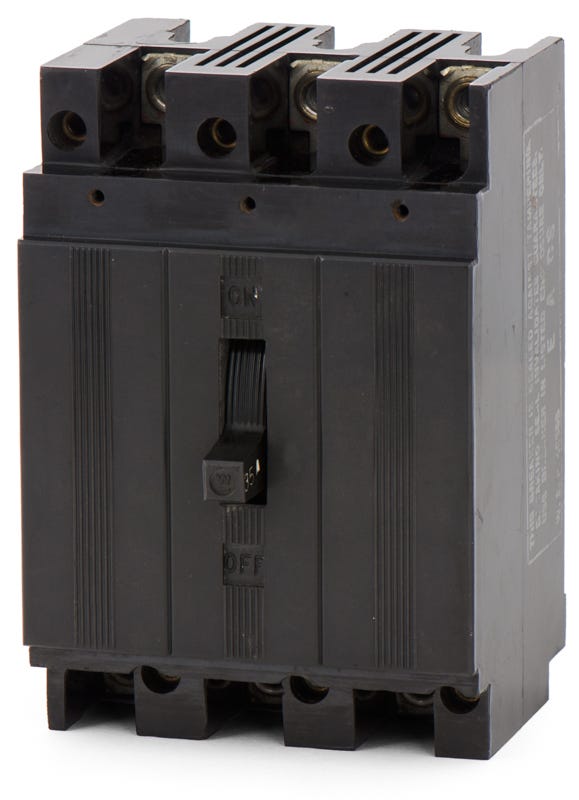

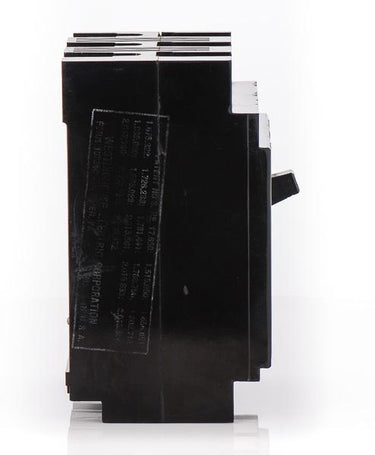

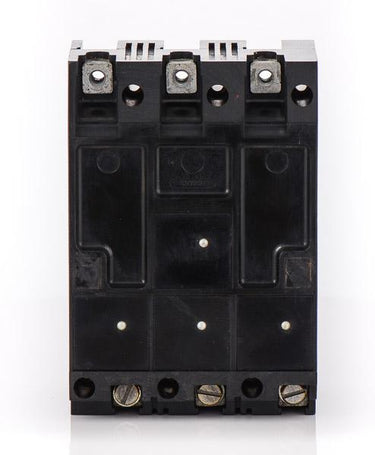

Eaton / Westinghouse E3035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for aging electrical infrastructure, the Eaton E3035 is a 3-pole, 35A molded case circuit breaker. It utilizes fixed thermal and magnetic trip technology to deliver reliable long-time and instantaneous protection. This unit mounts into classic Westinghouse and Eaton panelboards, ensuring exact fitment for legacy systems. It serves as an exact cross-reference for the EHD3035 and EB3035 models. The breaker handles up to 240VAC with a 7 kAIC short-circuit rating.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | E3035-R |
| Series | E |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 7kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Eaton Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Standard Interrupting Capacity |
Product FAQs
4 answersWhat panelboards are compatible with the E3035 circuit breaker?
This bolt-on breaker mounts into classic Westinghouse and Eaton panelboards, including legacy AB De-Ion and Eaton Pow-R-Line panels designed for E-frame breakers.
What are the direct cross-references for the E3035 breaker?
This unit serves as an exact drop-in replacement for the EHD3035 and EB3035 models, ensuring exact fitment for aging electrical infrastructure.
Can the E3035 be used in DC electrical systems?
Yes, in addition to its standard AC rating, this breaker is rated for DC applications, providing up to 5kA interrupting capacity at 250VDC.
What type of trip protection does the E3035 provide?
It utilizes fixed thermal and magnetic trip technology to deliver reliable long-time and instantaneous protection against overloads and short circuits.
