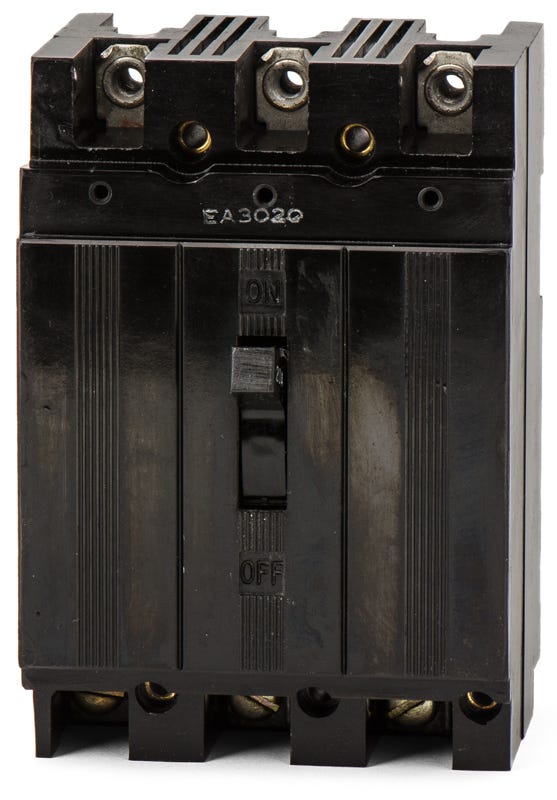

Eaton / Westinghouse EA3020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
EA3020
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EA3020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EA3020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Westinghouse EA3020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EA3020 |
| Series | EA |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP Panelboards, Westinghouse FDP Panelboards, Eaton Pow-R-Line 3 Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Quantity
Eaton / Westinghouse EA3020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EA3020 |
| Series | EA |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP Panelboards, Westinghouse FDP Panelboards, Eaton Pow-R-Line 3 Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Similar Items
15A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy E-Frame series, this 20A, 3-pole molded case circuit breaker provides thermal-magnetic protection for commercial facilities. This bolt-on unit mounts into older Westinghouse CDP and FDP panelboards, as well as Eaton Pow-R-Line 3 enclosures. It serves as the exact predecessor to the modern EHD3020, ensuring a precise fit without aftermarket adapters. Rated for 10kAIC at 240VAC, it features fixed long-time and instantaneous (LI) trip functions.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EA3020 |
| Series | EA |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP Panelboards, Westinghouse FDP Panelboards, Eaton Pow-R-Line 3 Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Product FAQs
5 answersWhich panelboards are compatible with the EA3020 circuit breaker?
This E-frame breaker is designed for installation in legacy Westinghouse CDP and FDP panelboards, as well as modern Eaton Pow-R-Line 3 distribution systems.
What is the modern Eaton replacement for the legacy Westinghouse EA3020?
The EA3020 can be directly replaced by the newer Eaton EHD3020 circuit breaker, which shares the same E-frame footprint for a drop-in replacement in existing panelboards.
Can the EA3020 be used in DC electrical systems?
Yes, this breaker is rated for DC applications up to 125/250VDC, providing a 5kAIC interrupting capacity for direct current circuits.
How does the EA3020 mount into the panelboard?
It features a bolt-on mounting configuration, securing directly to the busbars of compatible CDP, FDP, and Pow-R-Line 3 panelboards.
Does the EA3020 provide ground fault or arc fault protection?
No. The EA3020 is a standard thermal-magnetic breaker equipped with fixed long-time and instantaneous (LI) trip functions. It does not include GFCI or AFCI circuitry.
