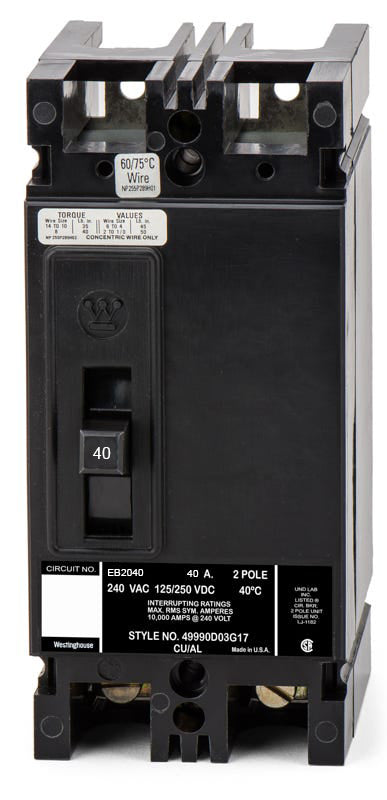

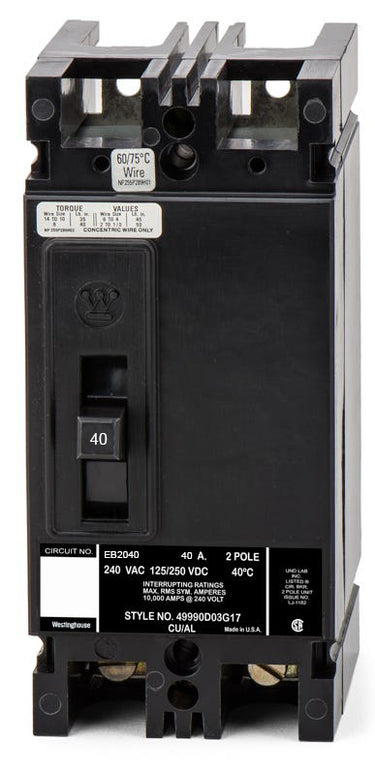

Eaton / Westinghouse EB2040 Molded Case Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Eaton / Westinghouse
EB2040
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EB2040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EB2040 - 40A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
25A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Serving older commercial facilities, the 40A EB2040 restores functionality to legacy electrical systems. This two-pole molded case breaker utilizes proven thermal-magnetic trip technology for consistent protection. It mounts into vintage Westinghouse F-Frame enclosures and Eaton Pow-R-Line C panelboards. Facility managers utilize this exact-fit unit instead of the modern EHD2040 substitute to avoid complex retrofits. Rated for 10kAIC at 240VAC, it handles standard fault currents safely.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EB2040 |
| Series | EB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Frame Type | EB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Westinghouse F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards accept the EB2040 circuit breaker?
This breaker is designed to mount in legacy Westinghouse F-Frame enclosures and modern Eaton Pow-R-Line C panelboards.
Are Eaton, Cutler-Hammer, and Westinghouse EB2040 breakers identical?
Yes. Eaton acquired the Westinghouse distribution equipment business, so the EB2040 is the exact same physical and electrical component regardless of which of these three brand names is printed on the label.
Can I replace an obsolete EB2040 with an EHD2040?
Yes. The Eaton EHD series is the direct modern replacement for legacy EB and EH frame breakers. An EHD2040 shares the same physical dimensions and bolt-on mounting configuration as the EB2040.
Can the EB2040 be used in direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for DC applications up to 125/250VDC, providing a 5kA interrupting capacity for those circuits.
Are the trip units on the EB2040 adjustable?
No. The EB2040 features fixed thermal and fixed magnetic trip functions, meaning the long-time and instantaneous trip settings cannot be modified in the field.
