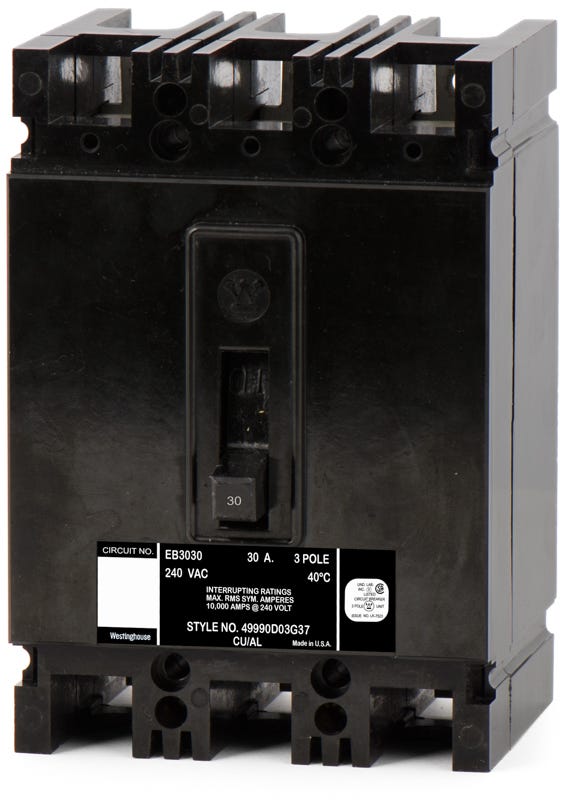

Eaton / Westinghouse EB3030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
EB3030
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EB3030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

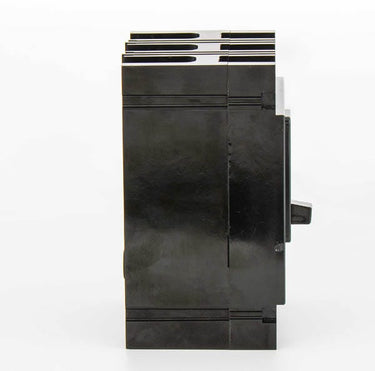

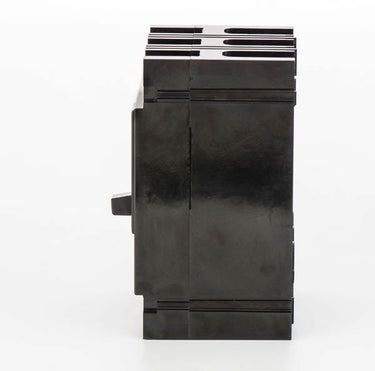

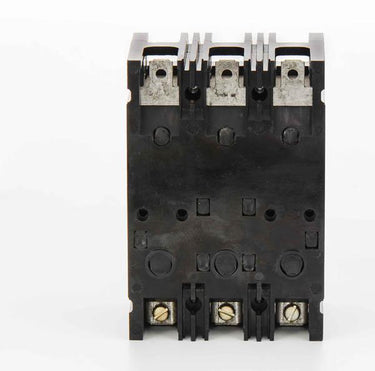

Eaton / Westinghouse EB3030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
25A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton EB3030 is a 3-pole, 30A molded case circuit breaker. It provides reliable protection for aging electrical systems. This bolt-on breaker mounts into legacy Eaton Pow-R-Line C and Westinghouse F-Frame panelboards. As an exact fit replacement, it eliminates retrofitting and substitutes the EHD3030. Featuring fixed thermal-magnetic trip technology, it is rated for 10kAIC at 240VAC and utilizes AB De-Ion arc extinction for safety.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EB3030-R |
| Series | EB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line C Panelboards, Westinghouse F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhich panelboards accept the EB3030 circuit breaker?
This breaker is engineered for use in Eaton Pow-R-Line C panelboards and legacy Westinghouse F-Frame panelboards.
Is the Westinghouse EB3030 still manufactured?
No, the EB series is an obsolete legacy E-frame breaker. Eaton has replaced this line with current F-frame breakers, such as the EHD or FDB series, depending on your specific system voltage and interrupting requirements.
Can the EB3030 be applied in DC circuits?
Yes, it is suitable for direct current applications. It carries a maximum 250VDC rating with a 5kA interrupting capacity.
Do I need special lugs to use aluminum wire with the EB3030?
No, the factory-installed lugs are dual-rated for both copper and aluminum conductors. They accept wire sizes ranging from 14 AWG up to 1/0 AWG.
What are the advantages of the bolt-on mounting style for the EB3030?
Bolting the breaker directly to the panelboard bus ensures a rigid, high-contact connection. This prevents the breaker from loosening over time, especially in industrial environments prone to heavy vibration.
