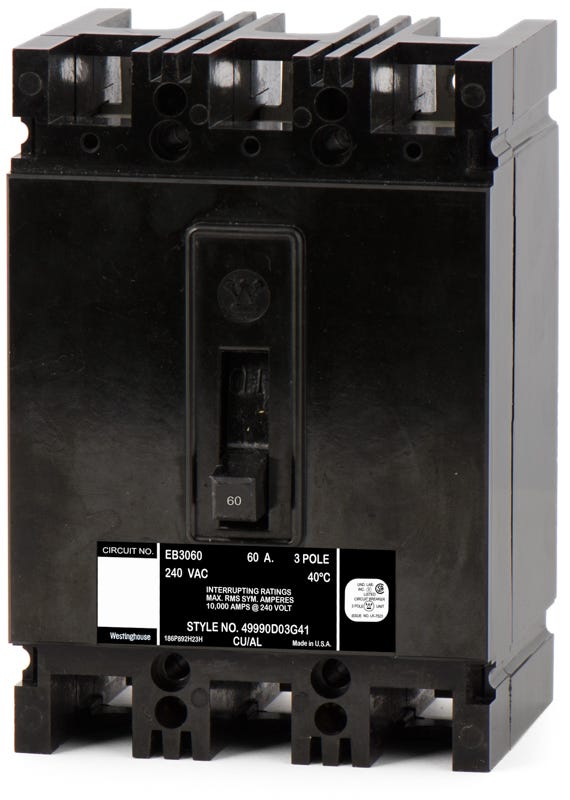

Eaton / Westinghouse EB3060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
EB3060
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EB3060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EB3060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy AB De-Ion family, this 60A molded case circuit breaker provides essential thermal-magnetic protection for commercial systems. Rated for 10kAIC at 240VAC, the EB3060 installs into existing Westinghouse and Cutler-Hammer panelboards. It serves as an exact physical replacement for aging infrastructure, eliminating the need for complex retrofits. While the EHD3060 is the modern substitute, utilizing the original EB frame ensures seamless integration with your current setup.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EB3060-R |
| Series | EB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Eaton Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Non-Interchangeable Trip, Standard Interrupting Capacity |
Product FAQs
5 answersWhich panelboards accept the EB3060 circuit breaker?
The EB3060 is designed for legacy Westinghouse and Eaton panelboards. Because it is an older E-frame design, you must verify your specific panelboard's interior labeling to confirm it explicitly lists EB series breakers as acceptable before installation.
Does the EB3060 support DC voltage applications?
Yes, in addition to standard AC systems, this breaker is rated for DC applications up to 250VDC. When applied in DC circuits, the interrupting capacity is 5kA, compared to its 10kA rating at 240VAC.
What wire types and sizes are supported by the EB3060 terminals?
The standard lug terminals accommodate both copper (Cu) and aluminum (Al) conductors. They accept wire sizes ranging from 14 AWG up to 1/0 AWG, making the breaker suitable for a variety of branch and feeder circuit installations.
Is the Westinghouse EB3060 still in active production?
No, the EB series is an obsolete legacy E-frame breaker. Eaton has replaced these with current F-frame breakers, though exact cross-references require verifying your panelboard's mounting configuration and available space.
What protection functions are provided by the EB3060 trip unit?
It utilizes a fixed thermal-magnetic trip unit that delivers long-time protection for overloads and instantaneous protection for short circuits. Both the thermal and magnetic elements are fixed and cannot be field-adjusted.
