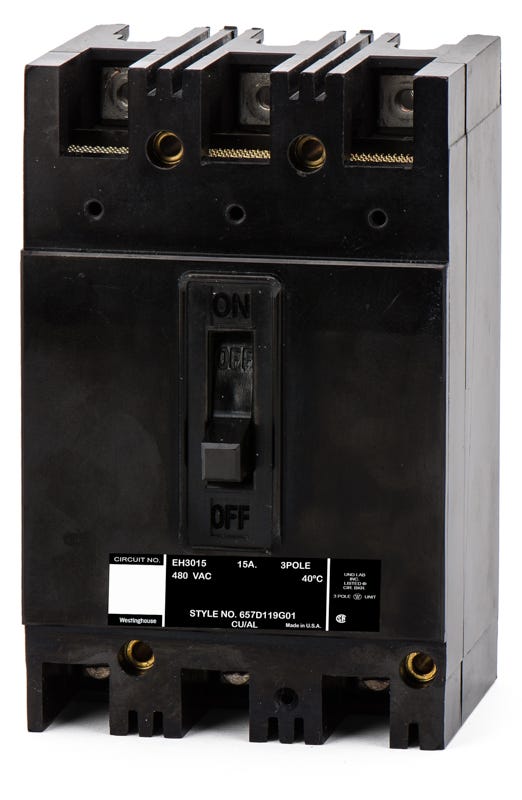

Eaton / Westinghouse EH3015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
EH3015
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EH3015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EH3015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Designed for commercial applications, the Eaton EH3015 is a 3-pole, 15A legacy molded case circuit breaker. It utilizes proven thermal-magnetic technology to safeguard electrical circuits. This bolt-on MCCB is engineered to fit older Westinghouse and Eaton NEHB panelboards. It provides an exact replacement solution that replaces EHB3015 and EHD3015 models without retrofits. Rated at 14kAIC for 480VAC systems, it includes load side lugs and is HACR rated for HVAC equipment.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EH3015-R |
| Series | EH |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse NEHB Panelboards, Eaton NEHB Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, HID Rated |
Product FAQs
6 answersWhat panelboards are compatible with the EH3015 circuit breaker?
The EH3015 is a bolt-on molded case circuit breaker designed specifically for installation in Eaton and Westinghouse NEHB panelboards.
Are Eaton and Westinghouse EH-series breakers interchangeable?
Yes. Eaton acquired the Westinghouse distribution equipment division, meaning an Eaton EH3015 is an exact drop-in replacement for an original Westinghouse EH3015 in NEHB panelboards.
Does the EH3015 require separate mounting hardware for installation?
As a bolt-on breaker, the line side of the EH3015 bolts directly to the busbars of an NEHB panelboard. The load side includes factory-installed lug terminals for branch circuit wiring, so no additional terminal kits are required for standard installation.
Is the EH3015 suitable for direct current applications?
Yes, this breaker is rated for use in DC systems. It provides up to 10kA of interrupting capacity at 250VDC, making it a viable option for industrial control circuits or specialized equipment requiring DC branch protection.
Is the Westinghouse EH3015 obsolete?
The original Westinghouse-branded EH3015 is a legacy E-Frame breaker and is no longer manufactured under that name. However, Eaton continues to produce exact replacements under the Eaton and Cutler-Hammer brands to support existing NEHB panelboards.
What type of fault protection does the EH3015 provide?
The breaker utilizes a fixed thermal-magnetic trip unit with Long-Time and Instantaneous (LI) functions. The thermal element protects against gradual overloads, while the magnetic element trips instantly to clear severe short circuits.
