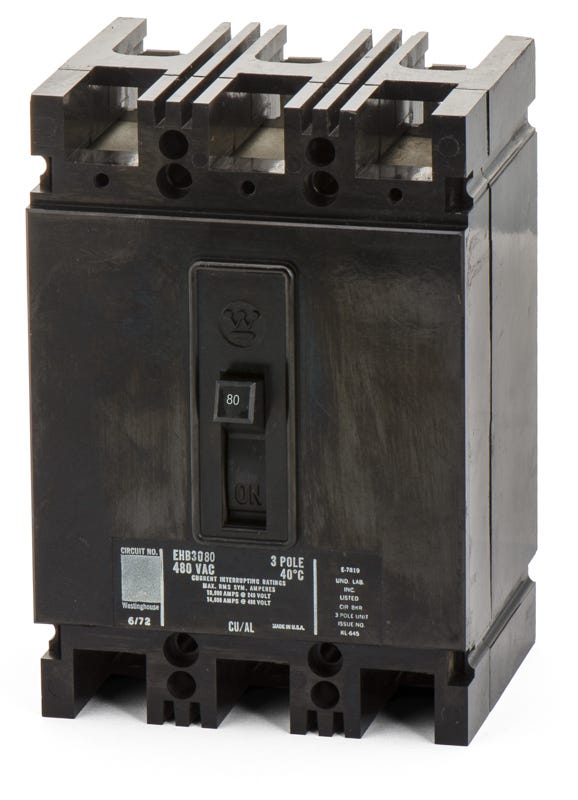

Eaton / Westinghouse EHB3080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
EHB3080
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EHB3080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EHB3080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
70A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Delivering reliable power management for commercial buildings, the Eaton EHB3080 is an 80-amp, three-pole MCCB. It features a robust thermal-magnetic trip unit that provides both long-time overload and instantaneous short-circuit protection. Designed specifically for legacy infrastructure, this E-Frame device installs into Westinghouse NEHB panelboards. It offers an exact physical match for older systems. When transitioning to newer hardware, the EHD3080 serves as the exact substitute.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EHB3080-R |
| Series | EHB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards |
| Wire Gauge | 4-2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Visual Trip Indicator, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the EHB3080 circuit breaker?
The EHB3080 is an E-frame breaker designed to bolt directly into legacy Westinghouse and Eaton Cutler-Hammer panelboards. It serves as an exact match for older infrastructure, eliminating the need for retrofit kits.
What is the modern replacement for the obsolete EHB3080?
The EHB series is obsolete. Eaton recommends the EHD3080, which is an F-frame breaker, as the direct cross-reference and drop-in replacement for modernizing older panelboards.
Can the trip settings on the EHB3080 be adjusted?
No, the EHB3080 features a fixed thermal-magnetic trip unit. Both the long-time thermal and instantaneous magnetic trip functions are factory-set and non-adjustable.
Can I use the EHB3080 in a plug-on load center?
No, the EHB3080 is strictly a bolt-on circuit breaker designed for commercial and industrial panelboards. It will not fit in residential load centers that require plug-on breakers.
What wire gauge and material can be used with the EHB3080 lugs?
The standard lugs accept 4 AWG to 2/0 AWG wire and are rated for both copper and aluminum conductors.
What type of fault protection does the EHB3080 provide?
It utilizes a thermal-magnetic mechanism to provide standard LI protection. This includes a delayed thermal response for overloads and an instantaneous magnetic response for short-circuit faults.
