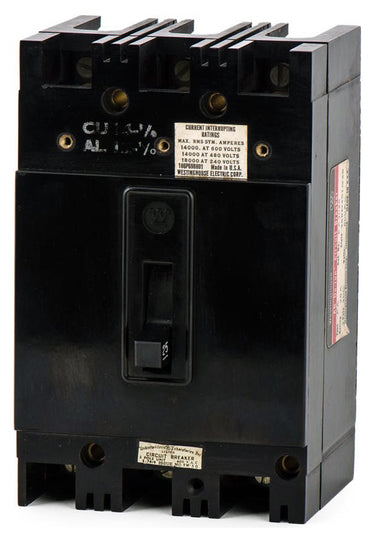

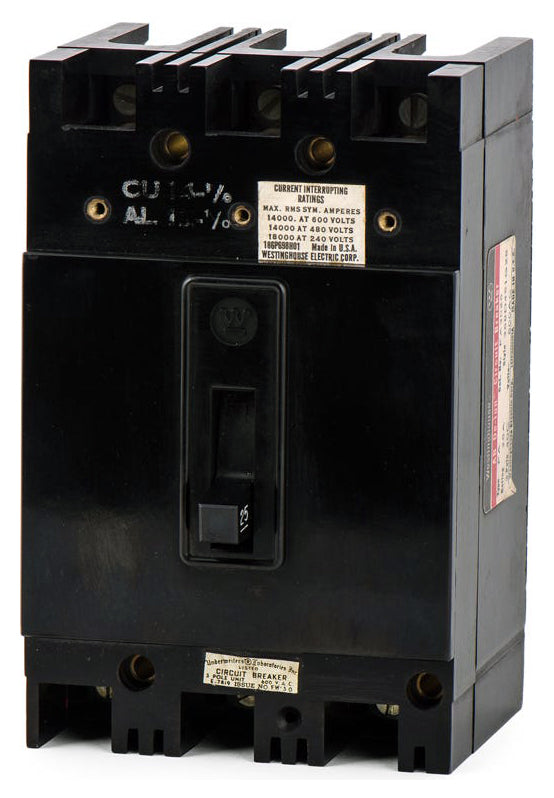

Eaton / Westinghouse FA3100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Quantity
Eaton / Westinghouse FA3100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Built for heavy-duty industrial environments, this 100A three-pole breaker utilizes proven thermal-magnetic trip technology for consistent performance. It integrates seamlessly into existing Westinghouse motor control centers, switchboards, and Eaton Pow-R-Line C panelboards. Equipped with advanced AB De-Ion arc quenching capabilities, it safely interrupts faults up to 14kA at 480VAC. This unit is an ideal drop-in solution for aging infrastructure, easily cross-referencing to the FD3100.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | FA3100 |
| Series | FA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards, Motor Control Centers, Switchboards, Eaton Pow-R-Line C Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | AB De-Ion Arc Quenching |
Product FAQs
6 answersWhat panels and enclosures are compatible with the FA3100 circuit breaker?
The FA3100 is designed for use in legacy Westinghouse panelboards, motor control centers, and switchboards, as well as Eaton Pow-R-Line C panelboards.
Are lugs included with the FA3100, and what wire sizes do they accept?
Yes, the FA3100 comes equipped with lugs that accept 14 AWG to 1/0 AWG copper or aluminum wire.
Can the FA3100 be used in DC power systems?
Yes, this breaker is rated for up to 250VDC with a 10kA interrupting capacity, in addition to its standard AC voltage ratings.
Is the Westinghouse FA3100 an obsolete breaker?
Yes, the FA frame is a legacy Westinghouse design now managed under the Eaton and Cutler-Hammer brands. It is commonly sourced to maintain existing panels without requiring a complete retrofit.
Can the FA3100 replace other Westinghouse F-frame breakers?
Yes, the FA3100 shares the same physical footprint as other legacy F-frame breakers and can often serve as a direct drop-in substitute for FDB3100 and FD3100 units in existing enclosures.
Does the FA3100 feature adjustable trip settings?
No, this breaker uses a thermal magnetic trip unit with fixed thermal and fixed magnetic settings for both long-time and instantaneous protection.
