Eaton / Westinghouse FCL3015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Eaton / Westinghouse
FCL3015
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
FCL3015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

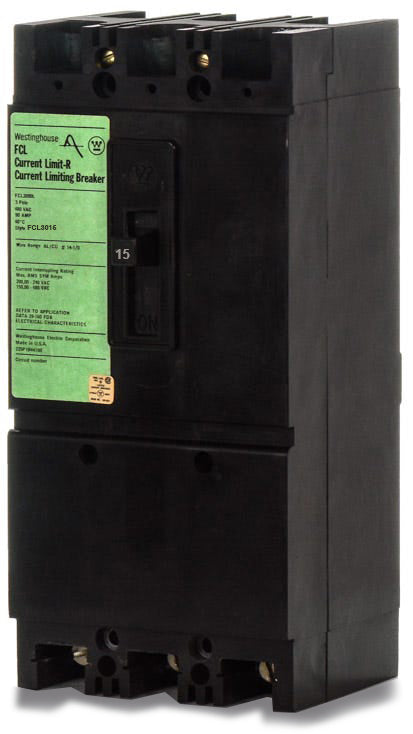

Eaton / Westinghouse FCL3015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
25A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Designed to restrict let-through energy, the Eaton FCL3015 is a 15A, 3-pole current-limiting circuit breaker for industrial facilities. It utilizes fixed thermal-magnetic trip technology to quickly clear severe faults, protecting sensitive downstream components from damage. This legacy F-frame device mounts into Eaton Series C panelboards and switchboards. It provides a seamless replacement solution for aging Westinghouse systems. Rated 200kAIC at 240V, it is succeeded by the FDC3015 series.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Series | FCL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 150kA @ 480VAC |
| Frame Type | FCL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated |
| Special Features | Current Limiting |
Product FAQs
8 answersWhat panelboards are compatible with the FCL3015?
This breaker is designed for use in Eaton Series C panelboards, as well as compatible industrial switchboards and motor control centers.
Can I install the FCL3015 in a standard residential load center?
No. The FCL3015 is an industrial molded case circuit breaker. It requires a bolt-on connection and will not fit in standard residential plug-on load centers like the Eaton BR or CH series.
Are Westinghouse and Eaton FCL3015 breakers the same?
Yes. Eaton acquired the Westinghouse distribution equipment line and integrated it into their Cutler-Hammer division. An FCL3015 branded as Westinghouse, Cutler-Hammer, or Eaton represents the same physical breaker and is fully interchangeable.
What does the FCL frame designation mean?
The FCL designation indicates that this is a current limiting version of the standard Eaton or Westinghouse F-Frame breaker. It shares the same physical footprint as standard F-Frame breakers but provides significantly higher interrupting ratings.
What does the current limiting feature of the FCL3015 do?
As a current limiting breaker, the FCL3015 is designed to clear a high-level fault in less than half a cycle. This rapid action significantly reduces the let-through energy and peak current, providing enhanced protection for downstream circuits and equipment.
Are the trip settings on the FCL3015 adjustable?
No. This breaker features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without adjustable dials.
What wire sizes do the lugs on the FCL3015 accept?
The factory lugs on this breaker accommodate conductors ranging from 14 AWG up to 1/0 AWG. Always verify the specific lug markings for copper or aluminum compatibility and follow the manufacturer torque requirements during installation.
Can the FCL3015 be used as a plug-on breaker?
No. The FCL3015 is a unit mount, bolt-on circuit breaker. It requires bolted connections for secure installation in panelboards or switchboards and is not compatible with plug-on chassis designs.
