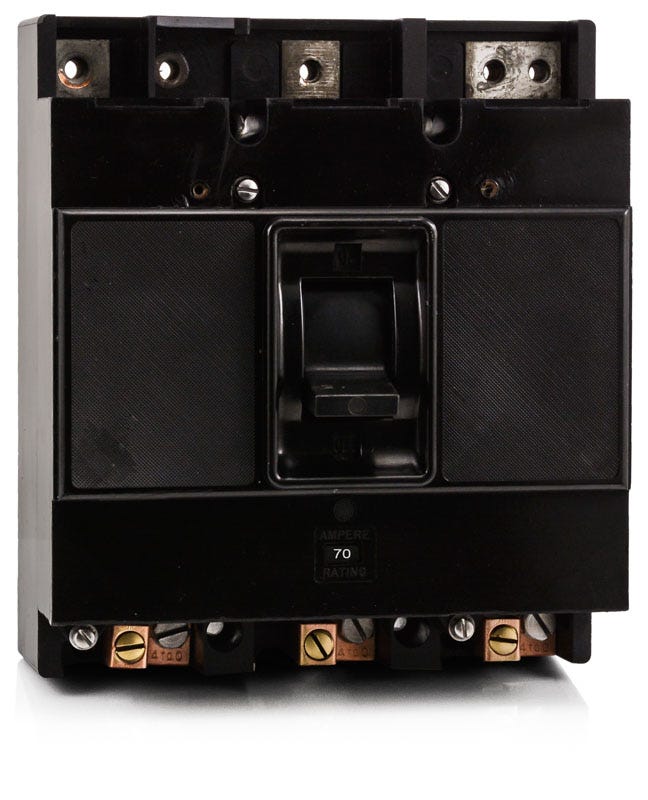

Eaton / Westinghouse G3070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
G3070
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
G3070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse G3070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Maintaining legacy electrical systems requires exact-match components, and this 70A three-pole breaker delivers precisely that. It integrates flawlessly into classic Westinghouse panelboards and motor control centers, bypassing the hassle of modern adapter kits. Upgrading to an FD-frame equivalent often forces panel modifications at 600V. By utilizing this authentic G-frame unit, facilities retain their original 10kAIC protection at 600VAC while benefiting from reverse feed capabilities.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | G3070-R |
| Series | G |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 600VAC, 14kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40°C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat enclosures are compatible with the G3070 circuit breaker?
The G3070 is designed to mount into vintage Westinghouse panelboards and motor control centers that accept G-frame bolt-on breakers.
Is the Westinghouse G3070 interchangeable with Eaton breakers?
Yes. Eaton acquired the Westinghouse electrical distribution line. The G3070 is now part of the Eaton Series C family and serves as a direct replacement for older Westinghouse G-frame breakers without requiring enclosure upgrades.
Does the G3070 require line-side lugs for installation?
No. Because the G3070 is a bolt-on breaker, the line side fastens directly to the panelboard busbars. It comes complete with load-side lug terminals for the outgoing circuit.
What are the interrupting capacity (AIC) limits for the G3070 across different voltages?
The G3070 provides up to 18kA interrupting capacity at 240VAC. For higher voltage systems, it is rated at 14kA at 480VAC, 10kA at 600VAC, and 14kA at 250VDC.
What type of protection does the G3070 trip unit provide?
It utilizes a fixed thermal-magnetic trip unit that provides long-time (thermal) protection against overloads and instantaneous (magnetic) protection against short circuits.
What wire sizes are supported by the load lugs on the G3070?
The factory-installed load lugs accept wire gauges from 10 AWG up to 1/0 AWG. Ensure proper torque specifications are followed during installation to prevent terminal overheating.
