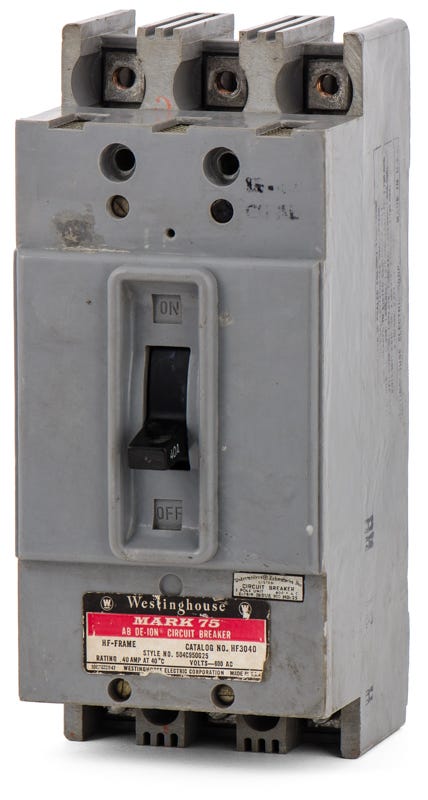

Eaton / Westinghouse HF3040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Quantity
Eaton / Westinghouse HF3040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
A drop-in solution for older systems, the 40-amp Eaton HF3040 provides dependable thermal-magnetic protection for 3-phase commercial applications. It is rated for use on systems up to 600VAC or 250VDC. This bolt-on MCCB fits perfectly into legacy Westinghouse panelboards, Pow-R-Line C setups, and standard F-Frame enclosures. It restores functionality to aging infrastructure and is replaced by the HFD3040. The breaker carries a 65kAIC rating at 240V and includes Mark 75 technology.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | HF3040-R |
| Series | HF |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Eaton Pow-R-Line C Panelboards, Eaton F-Frame Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Mark 75, HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat is the modern replacement for the legacy Westinghouse HF3040?
The Eaton HFD3040 is the direct modern replacement. Because both breakers belong to the F-Frame family, the HFD3040 shares the exact same physical dimensions and mounting footprint as the original HF3040.
Can I install the HF3040 in a modern Eaton panelboard?
Yes, while originally a Westinghouse product, the HF3040 is fully compatible with modern Eaton Pow-R-Line C panelboards and standard Eaton F-Frame enclosures, as well as legacy Westinghouse panels.
How is the HF3040 wired for 250VDC applications?
When applying the HF3040 in DC systems up to 250VDC, multiple poles must be wired in series. For grounded or ungrounded systems, the specific wiring configuration depends on the load isolation and voltage, following Eaton F-Frame DC wiring guidelines.
Does the HF3040 allow for field-adjustable trip settings?
No, this breaker utilizes a thermal-magnetic trip unit with fixed long-time and fixed instantaneous (LI) functions. The trip curve is factory-set and cannot be adjusted by the installer.
Are the HF3040 and FD3040 physically interchangeable?
Yes. Both are Eaton/Westinghouse F-Frame breakers and share the same dimensions and bolt-on mounting. However, they have different short-circuit interrupting ratings, so you must verify that the breaker meets your system fault current requirements before substituting.
