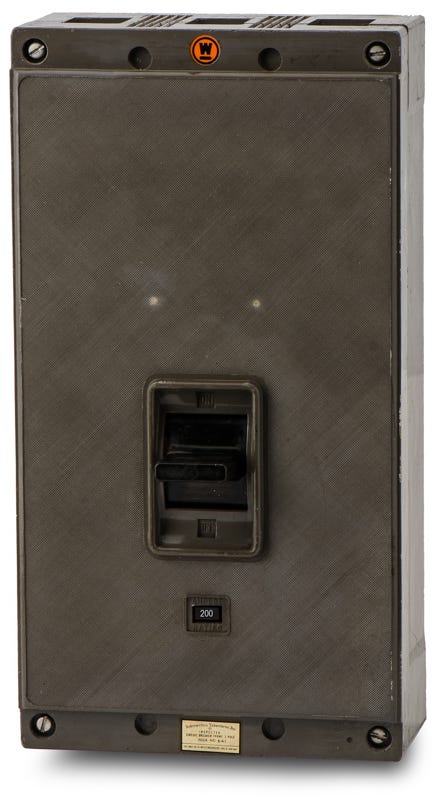

Eaton / Westinghouse HK3200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Panel Mount
Eaton / Westinghouse
HK3200
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
HK3200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse HK3200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for older Westinghouse systems, the HK3200 is a 200A, 3-pole molded case circuit breaker. It is engineered for commercial and industrial power distribution. This K-Frame MCCB installs into legacy panelboards, switchboards, and motor control centers without requiring custom adapters. It is officially replaced by the modern HKD3200. Featuring thermal-magnetic trip technology with adjustable magnetic settings, it delivers a 65 kAIC interrupting capacity at 480VAC.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | HK3200-R |
| Series | HK |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Lock, Motor Operator |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit, Trip-Free Mechanism |
Product FAQs
6 answersIs the HK3200 interchangeable with other Eaton Series C K-frame breakers?
Yes, the HK3200 shares the same physical footprint as KD, KDB, and HKD frame breakers. It installs into legacy Westinghouse panelboards and switchboards without requiring custom adapters. It is officially replaced by the modern HKD3200.
What enclosures and systems are compatible with the HK3200?
This K-frame breaker is designed for use in Westinghouse and Eaton Cutler-Hammer panelboards, switchboards, and motor control centers that accept Series C K-frame breakers.
How does the adjustable magnetic trip function on the HK3200?
The thermal magnetic trip unit features a fixed thermal element for overload protection and an adjustable magnetic setting. This allows users to dial in the instantaneous short circuit pickup level for better coordination with downstream devices.
What does the LI trip function code indicate on this breaker?
The LI designation means the breaker provides Long Time (L) and Instantaneous (I) protection. The Long Time function protects against sustained overloads, while the Instantaneous function provides immediate tripping during severe short circuits.
Are the standard lugs on the HK3200 rated for both aluminum and copper wire?
Yes, the factory-installed line and load lugs are dual-rated for both aluminum and copper conductors ranging from 3 AWG to 350 kcmil. Use an appropriate oxide inhibitor when terminating aluminum wire.
What is the advantage of the high interrupting capacity on the HK3200?
With a 65 kAIC rating at 480VAC, this breaker safely clears severe fault currents in commercial and industrial systems with high available fault current. This prevents catastrophic equipment damage and helps maintain system stability during short circuit events.
