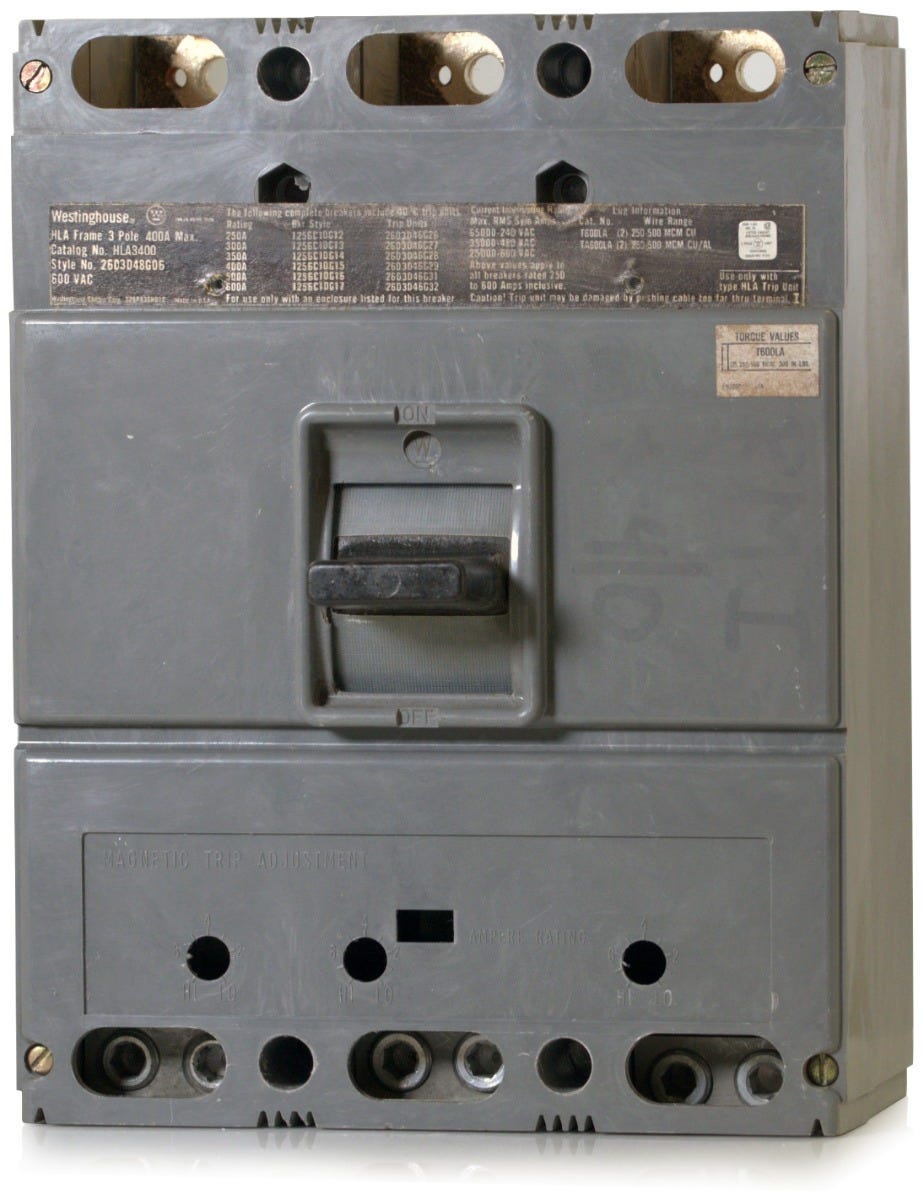

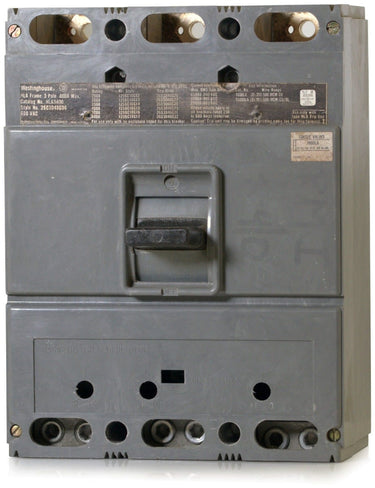

Eaton / Westinghouse HLA3400 Molded Case Circuit Breaker
- 400A
- 3 Pole
- Unit Mount
Eaton / Westinghouse
HLA3400
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
HLA3400
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse HLA3400 - 400A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
500A 3 Pole Molded Case Circuit Breaker

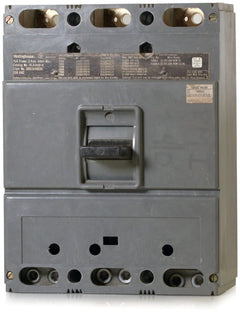

600A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Serving as an exact physical match for vintage infrastructure, the 400A HLA3400 maintains critical operations. This Mark 75 L-Frame utilizes thermal-magnetic trip technology for reliable LI protection. The unit mount configuration integrates into classic Westinghouse panelboards and Eaton Pow-R-Line C enclosures. It provides a seamless fit to avoid retrofitting, superseded by the HLD3400 series. Featuring a 75kAIC rating at 240VAC, it delivers robust fault clearing.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | HLA3400 |
| Series | HLA |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 75kA @ 240VAC, 35kA @ 480VAC, 30kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | LA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards, Eaton Pow-R-Line C Panelboards, Switchboards |
| Wire Gauge | (1) 1 AWG - 600 kcmil OR (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Interchangeable Trip Unit |
Product FAQs
5 answersWhich panelboards are compatible with the HLA3400 circuit breaker?
This unit mounts in legacy Westinghouse panelboards, Eaton Pow-R-Line C panelboards, and compatible switchboards designed to accept L-frame breakers.
What is the difference between the standard LA3400 and the HLA3400?
The HLA3400 is part of the Mark 75 family, offering a higher interrupting capacity than the standard LA3400. Both breakers share the exact same physical LA frame dimensions and mounting footprint, making them physically interchangeable in the same enclosures.
What wire sizes are accepted by the lugs on the HLA3400?
The standard lugs accept either a single 1 AWG to 600 kcmil conductor or two 1 AWG to 250 kcmil conductors per phase. The terminals are rated for both aluminum and copper wiring.
Can the trip settings on the HLA3400 be adjusted?
The thermal element for long-time overload protection is fixed. However, the magnetic trip function is adjustable, allowing you to tune the instantaneous short-circuit response to match your specific load requirements and coordination studies.
Does the HLA3400 require a specific mounting hardware kit?
Yes, installing this bolt-on breaker into a panelboard or switchboard requires the appropriate L-frame strap kit or connector kit specific to your Eaton or Westinghouse enclosure type.
