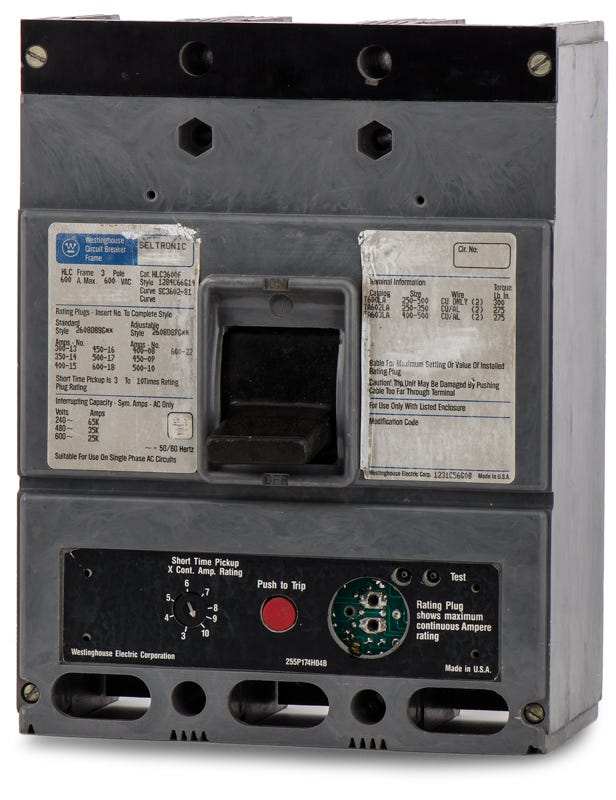

Eaton / Westinghouse HLC3600F Molded Case Circuit Breaker
- 600A
- 3 Pole
- Bolt-On
Quantity
Eaton / Westinghouse HLC3600F - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Built for heavy-duty industrial power distribution, this 600A electronic trip breaker utilizes Seltronic technology for highly accurate circuit protection. The frame-only configuration requires a specific rating plug to establish the continuous current rating. This bolt-on MCCB installs seamlessly into existing Westinghouse and Eaton switchboards or motor control centers. It serves as an exact fit for older systems. Rated at 65kAIC at 240V, it offers superior coordination capabilities.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | HLC3600F-R |
| Series | HLC |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Eaton Panelboards, Motor Control Centers, Switchboards |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LS |
| Trip Function | Long-Time, Short-Time |
| Trip Adjustability | Adjustable |
| Available Options | Rating Plugs, Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Rating Plug (Required) |
| Standards | NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity |
Product FAQs
5 answersDoes the HLC3600F frame require a rating plug?
Yes, the HLC3600F is a Seltronic frame that requires a separate rating plug to establish the continuous current rating. For a 600A rating, you must install a 6LC600 rating plug into the solid-state trip unit.
What equipment is the HLC3600F designed to fit?
This legacy LC-frame breaker is designed for unit mounting in older Westinghouse and Eaton Cutler-Hammer panelboards, switchboards, and motor control centers.
What is the modern replacement for the HLC3600F?
The Eaton LD3600 or HLD3600 series is frequently used as a modern substitute for the legacy HLC3600F. Depending on your existing enclosure, hardware modifications or adapter kits may be necessary when upgrading.
How does the LS electronic trip unit function on this breaker?
The LS designation indicates the solid-state trip unit provides adjustable Long-Time and Short-Time delay pickups. This allows electricians to fine-tune the trip curve for precise coordination with other protective devices in the distribution system.
Are lugs included with the HLC3600F breaker?
The HLC3600F is configured for lug connections, but it typically requires separate lug kits for line and load terminations. When installing, ensure the selected lugs are rated for the correct wire size and material required for your 600A circuit.
